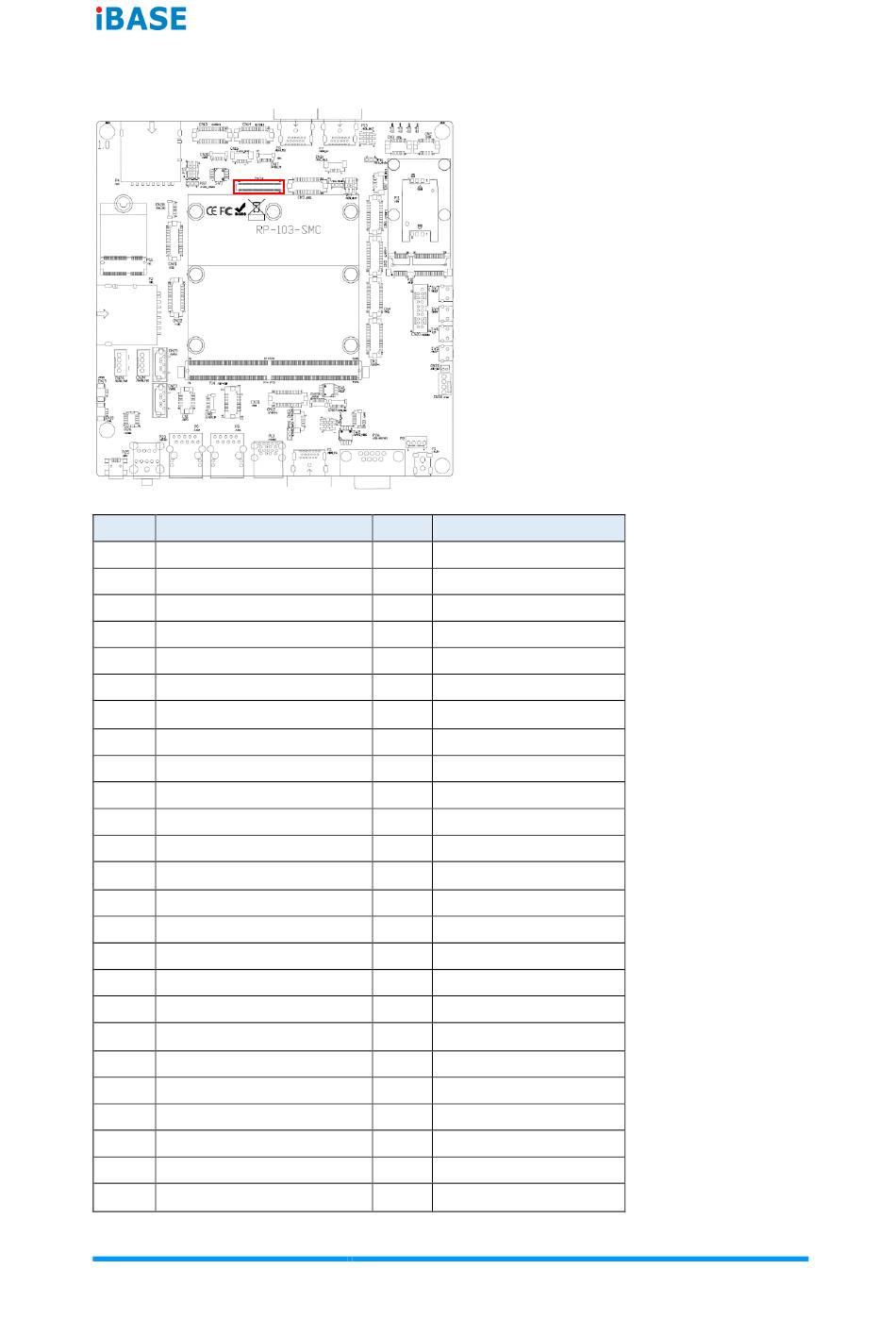

CN34: BTB Conn (RM-N8QM only)

Pin # Signal Name
1 GND
2 DSI1_CLK+
3 DSI1_CLK-
4 GND
5 DSI1_DAT0+
6 DSI1_DAT0-
7 DSI1_DAT1+
8 DSI1_DAT1-
9 DSI1_DAT2+
10 DSI1_DAT2-
11 DSI1_DAT3+
12 DSI1_DAT3-
13 DSI1_BL_PWM
14 DSI1_TS_INT_B
15 DSI1_TS_SCL
16 DSI1_TS_SDA
17 GND
18 LVDS1_CH0_CLK+
19 LVDS1_CH0_CLK-
20 GND
21 LVDS1_CH0_TX0+
22 LVDS1_CH0_TX0-
23 LVDS1_CH0_TX1+
24 LVDS1_CH0_TX1-
25 LVDS1_CH0_TX2+
50
Pin # Signal Name
51 GND
52 HDMI_RX_CLK+
53 HDMI_RX_CLK-
54 GND
55 HDMI_RX_DAT0+
56 HDMI_RX_DAT0-
57 HDMI_RX_DAT1+
58 HDMI_RX_DAT1-
59 HDMI_RX_DAT2+
60 HDMI_RX_DAT2-
61 HDMI_RX_ARC+
62 HDMI_RX_ARC-
63 HDMI_RX_CEC
64 HDMI_RX_SCL
65 HDMI_RX_SDA
66 HDMI_RX_MON
67 HDMI_RX_HDP
68 M40_UART0_RX
69 M40_UART0_TX
70 M41_UART4_RX
71 M41_UART4_TX
72 RSVD
73 RSVD
74 RSVD
75 RSVD
