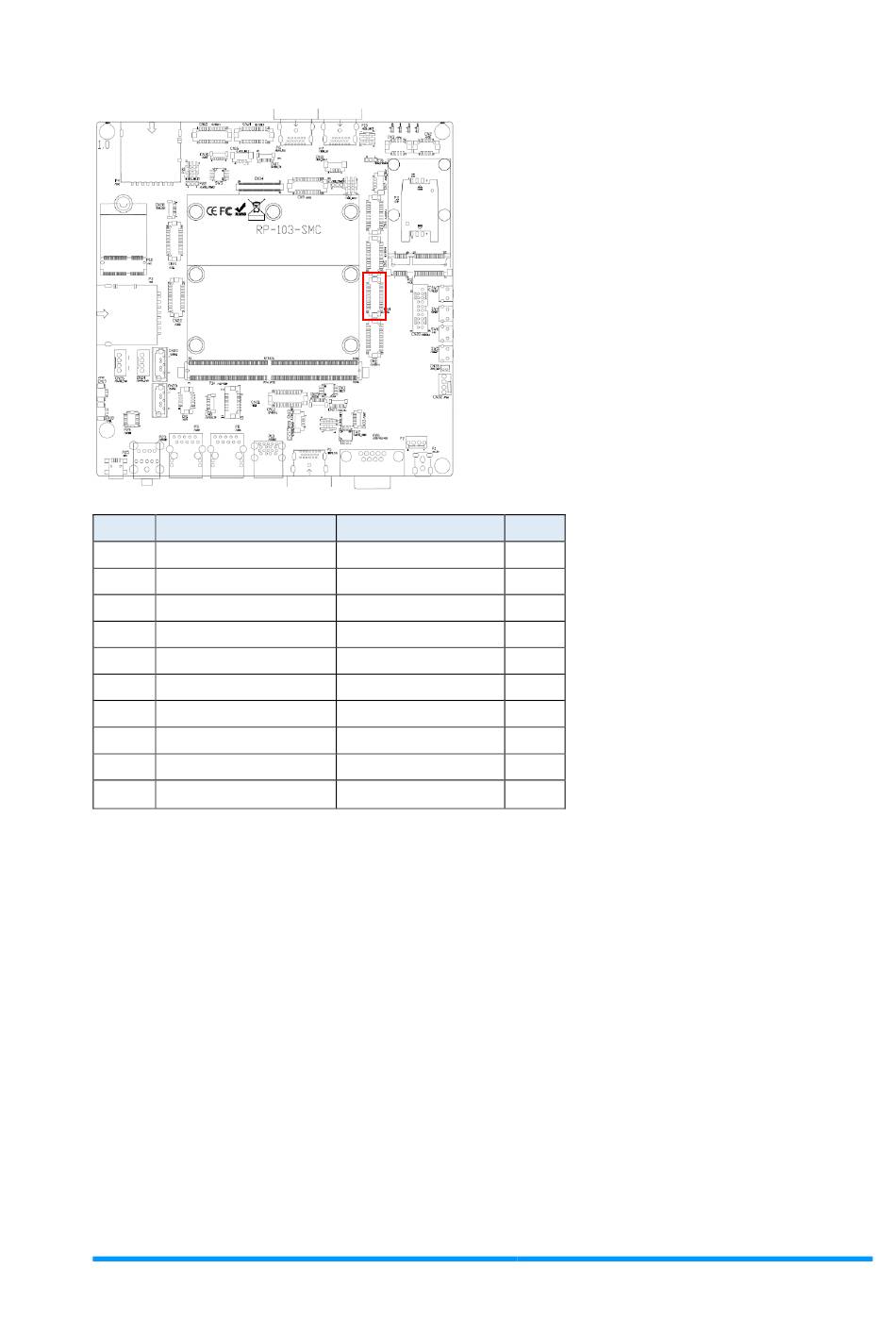

CN4: MIPI-DSI0

Pin # Signal Name
2 MIPI_DSI0_CKN
4 GND
6 MIPI_DSI0_DNO
8 DSI0_VLCD
10 MIPI_DSI0_DN1
12 MIPI_DSI0_DN2
14 SPDIF_TX0
16 MIPI_DSI0_DN3
18 DSI0_VLCD
20 DSI0_BKLT
RP-103-SMC User Manual
Settings on the Carrier Board
Signal Name Pin #
MIPI_DSI0_CKP
GND
MIPI_DSI0_DP0
GND
MIPI_DSI0_DP1
MIPI_DSI0_DP2 11
HDMI_INT 13
MIPI_DSI0_DP3 15
LVDS0_TS_SCL 17
LVDS0_TS_SDA 19
1
3
5
7
9
21
