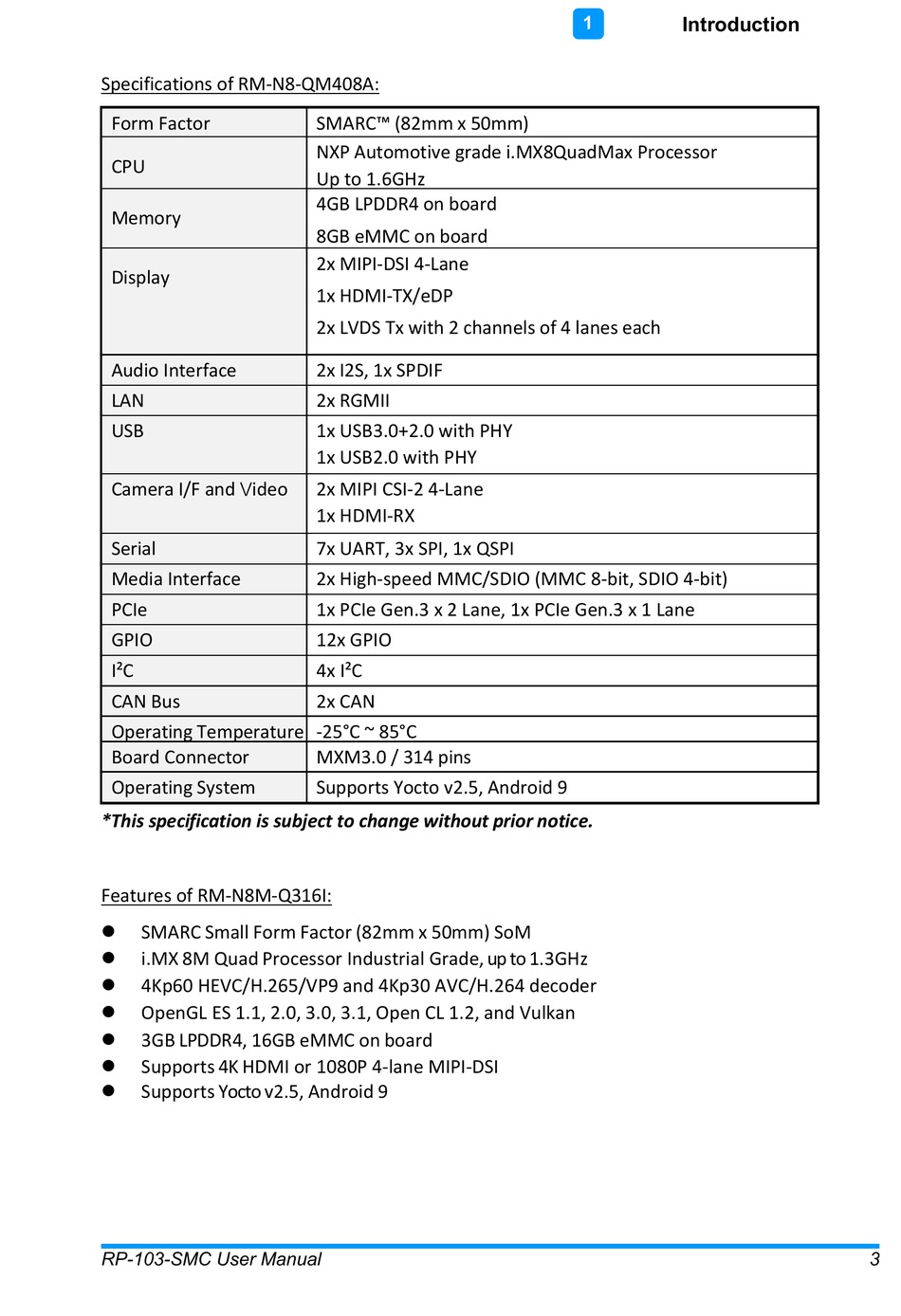

Specifications of RM-N8-QM408A:
Form Factor
CPU
Memory
Display
Audio Interface
LAN
USB
Camera I/F and Video
Serial
Media Interface
PCIe
GPIO
I²C
CAN Bus
Operating Temperature -25°C ~ 85°C
Board Connector
Operating System
*This specification is subject to change without prior notice.
Features of RM-N8M-Q316I:
SMARC Small Form Factor (82mm x 50mm) SoM
l
i.MX 8M Quad Processor Industrial Grade, up to 1.3GHz
l
4Kp60 HEVC/H.265/VP9 and 4Kp30 AVC/H.264 decoder
l
OpenGL ES 1.1, 2.0, 3.0, 3.1, Open CL 1.2, and Vulkan
l
3GB LPDDR4, 16GB eMMC on board
l
Supports 4K HDMI or 1080P 4-lane MIPI-DSI
l
Supports Yocto v2.5, Android 9
l
RP-103-SMC User Manual
SMARC™ (82mm x 50mm)
NXP Automotive grade i.MX8QuadMax Processor
Up to 1.6GHz
4GB LPDDR4 on board
8GB eMMC on board
2x MIPI-DSI 4-Lane
1x HDMI-TX/eDP
2x LVDS Tx with 2 channels of 4 lanes each
2x I2S, 1x SPDIF
2x RGMII
1x USB3.0+2.0 with PHY
1x USB2.0 with PHY
2x MIPI CSI-2 4-Lane
1x HDMI-RX
7x UART, 3x SPI, 1x QSPI
2x High-speed MMC/SDIO (MMC 8-bit, SDIO 4-bit)
1x PCIe Gen.3 x 2 Lane, 1x PCIe Gen.3 x 1 Lane
12x GPIO
4x I²C
2x CAN
MXM3.0 / 314 pins
Supports Yocto v2.5, Android 9
