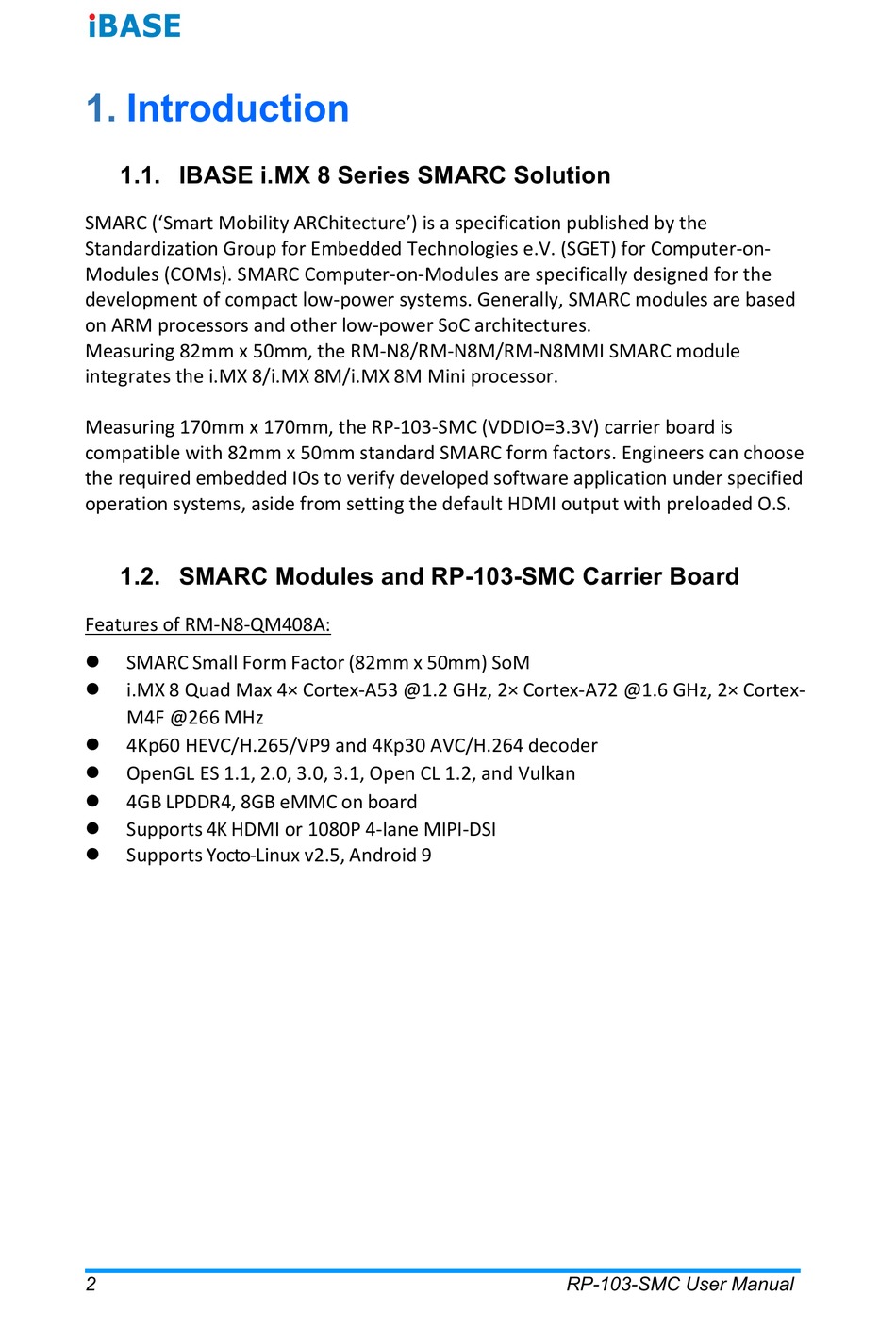

1.

Introduction

1.1. IBASE i.MX 8 Series SMARC Solution

SMARC ('Smart Mobility ARChitecture') is a specification published by the
Standardization Group for Embedded Technologies e.V. (SGET) for Computer-on-
Modules (COMs). SMARC Computer-on-Modules are specifically designed for the
development of compact low-power systems. Generally, SMARC modules are based
on ARM processors and other low-power SoC architectures.
Measuring 82mm x 50mm, the RM-N8/RM-N8M/RM-N8MMI SMARC module
integrates the i.MX 8/i.MX 8M/i.MX 8M Mini processor.
Measuring 170mm x 170mm, the RP-103-SMC (VDDIO=3.3V) carrier board is
compatible with 82mm x 50mm standard SMARC form factors. Engineers can choose
the required embedded IOs to verify developed software application under specified
operation systems, aside from setting the default HDMI output with preloaded O.S.

1.2. SMARC Modules and RP-103-SMC Carrier Board

Features of RM-N8-QM408A:
SMARC Small Form Factor (82mm x 50mm) SoM
l
i.MX 8 Quad Max 4× Cortex-A53 @1.2 GHz, 2× Cortex-A72 @1.6 GHz, 2× Cortex-
l
M4F @266 MHz
4Kp60 HEVC/H.265/VP9 and 4Kp30 AVC/H.264 decoder
l
OpenGL ES 1.1, 2.0, 3.0, 3.1, Open CL 1.2, and Vulkan
l
4GB LPDDR4, 8GB eMMC on board
l
Supports 4K HDMI or 1080P 4-lane MIPI-DSI
l
Supports Yocto-Linux v2.5, Android 9
l
2 RP-103-SMC User Manual
