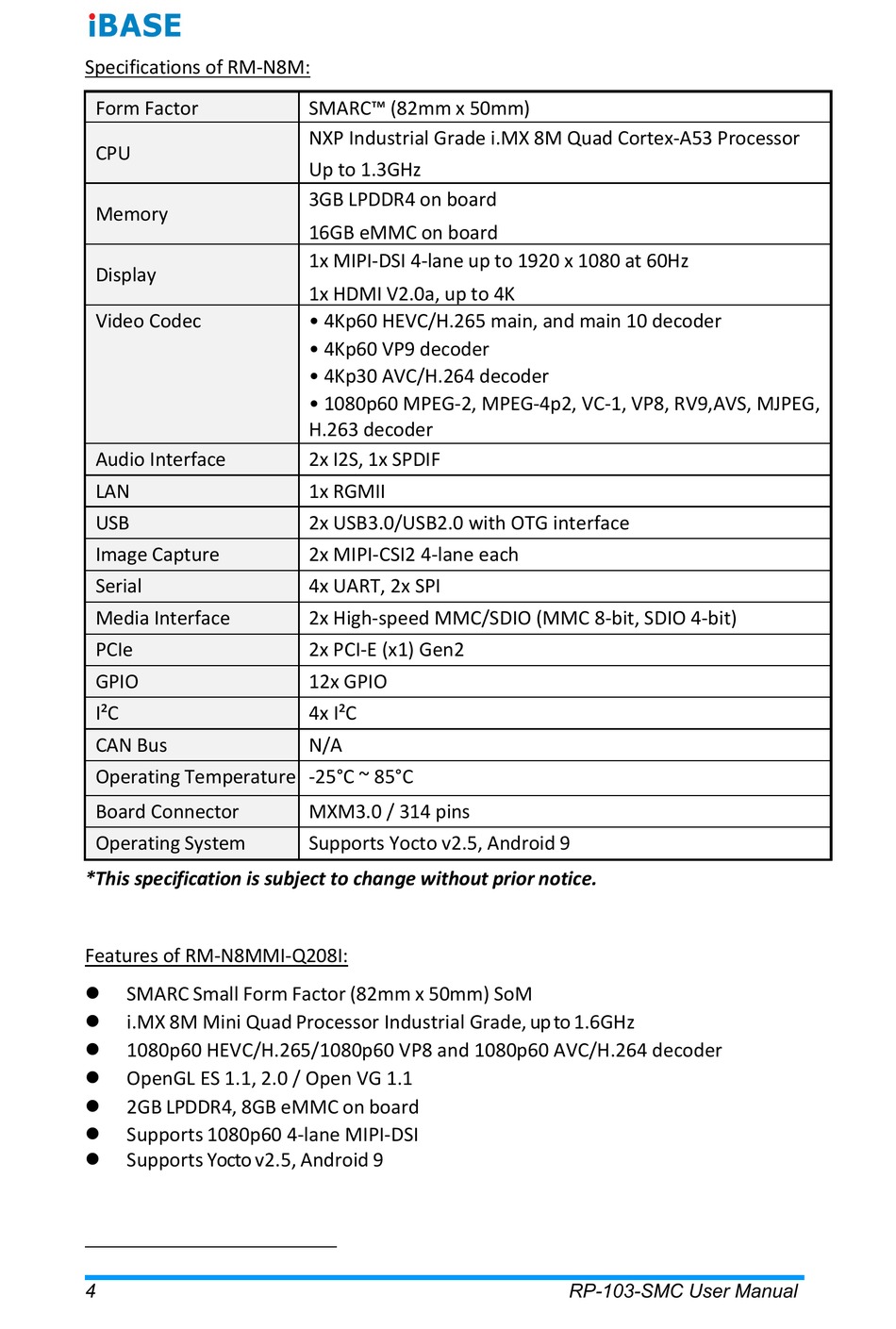

Specifications of RM-N8M:
Form Factor
CPU
Memory
Display
Video Codec
Audio Interface
LAN
USB
Image Capture
Interface
Serial
Media Interface
PCIe
GPIO
I²C
CAN Bus
Operating Temperature -25°C ~ 85°C
Board Connector
Operating System
*This specification is subject to change without prior notice.
Features of RM-N8MMI-Q208I:
SMARC Small Form Factor (82mm x 50mm) SoM
l
i.MX 8M Mini Quad Processor Industrial Grade, up to 1.6GHz
l
1080p60 HEVC/H.265/1080p60 VP8 and 1080p60 AVC/H.264 decoder
l
OpenGL ES 1.1, 2.0 / Open VG 1.1
l
2GB LPDDR4, 8GB eMMC on board
l
Supports 1080p60 4-lane MIPI-DSI
l
Supports Yocto v2.5, Android 9
l
4
SMARC™ (82mm x 50mm)
NXP Industrial Grade i.MX 8M Quad Cortex-A53 Processor
Up to 1.3GHz
3GB LPDDR4 on board
16GB eMMC on board
1x MIPI-DSI 4-lane up to 1920 x 1080 at 60Hz
1x HDMI V2.0a, up to 4K
• 4Kp60 HEVC/H.265 main, and main 10 decoder
• 4Kp60 VP9 decoder
• 4Kp30 AVC/H.264 decoder
• 1080p60 MPEG-2, MPEG-4p2, VC-1, VP8, RV9,AVS, MJPEG,
H.263 decoder
2x I2S, 1x SPDIF
1x RGMII
2x USB3.0/USB2.0 with OTG interface
2x MIPI-CSI2 4-lane each
4x UART, 2x SPI
2x High-speed MMC/SDIO (MMC 8-bit, SDIO 4-bit)
2x PCI-E (x1) Gen2
12x GPIO
4x I²C
N/A
MXM3.0 / 314 pins
Supports Yocto v2.5, Android 9
