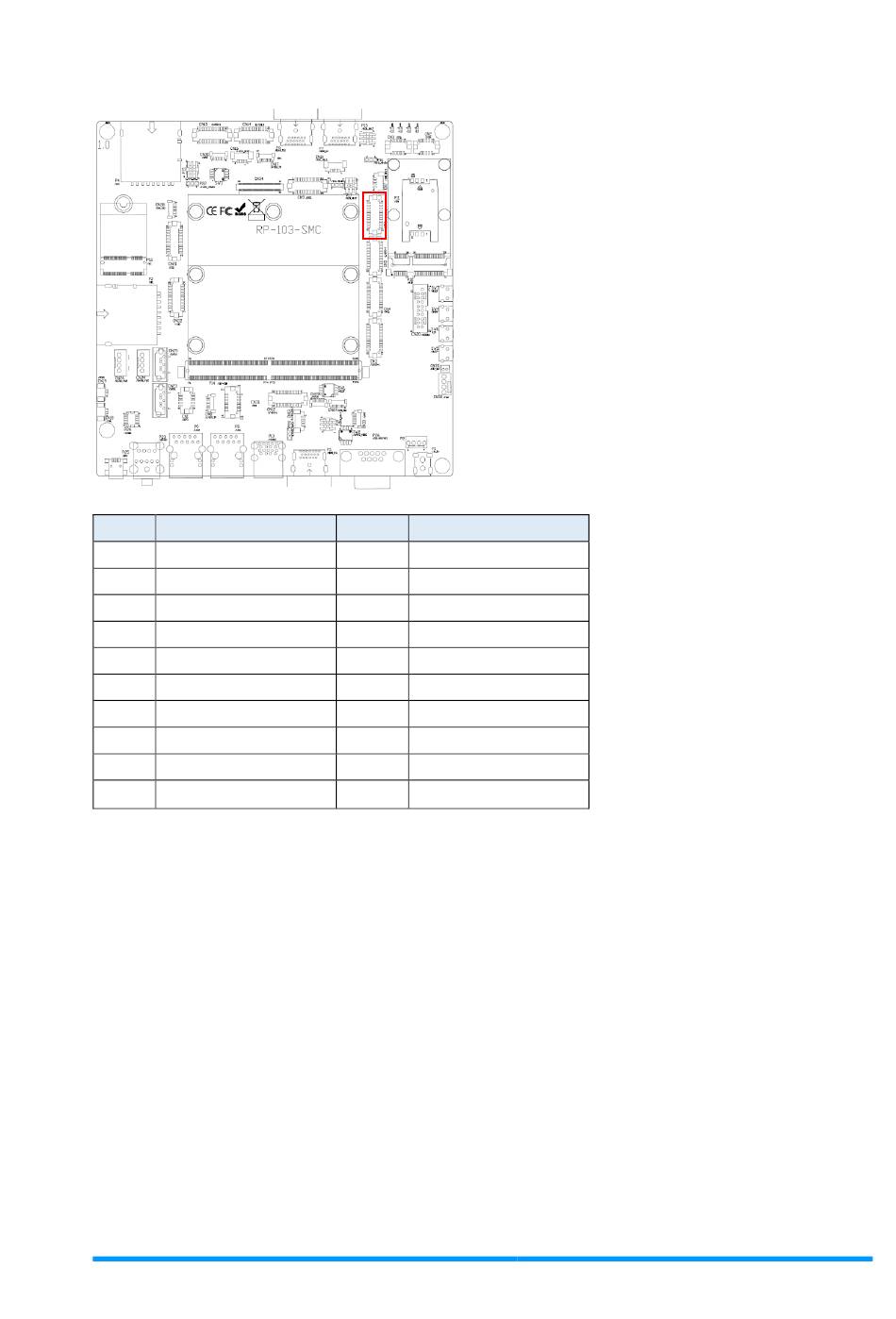

CN6: Dual-channel LVDS2 ch1

Pin # Signal Name
2 LVDS2_1_TX0_N
4 GND
6 LVDS2_1_TX1_N
8 DSI0_VLCD
10 LVDS2_1_TX3_N
12 LVDS2_1_TX2_N
14 GND
16 LVDS2_1_CLK_N
18 DSI0_VLCD
20 DSI0_BKLT
RP-103-SMC User Manual
Settings on the Carrier Board
Pin # Signal Name
1 LVDS2_1_TX0_P
3 GND
5 LVDS2_1_TX1_P
7 GND
9 LVDS2_1_TX3_P
11 LVDS2_1_TX2_P
13 GND
15 LVDS2_1_CLK_P
17 DSI0_BL_PWM
19 DSI0_BKLT
