Cn31: Dio - IBASE Technology RP-103-SMC User Manual

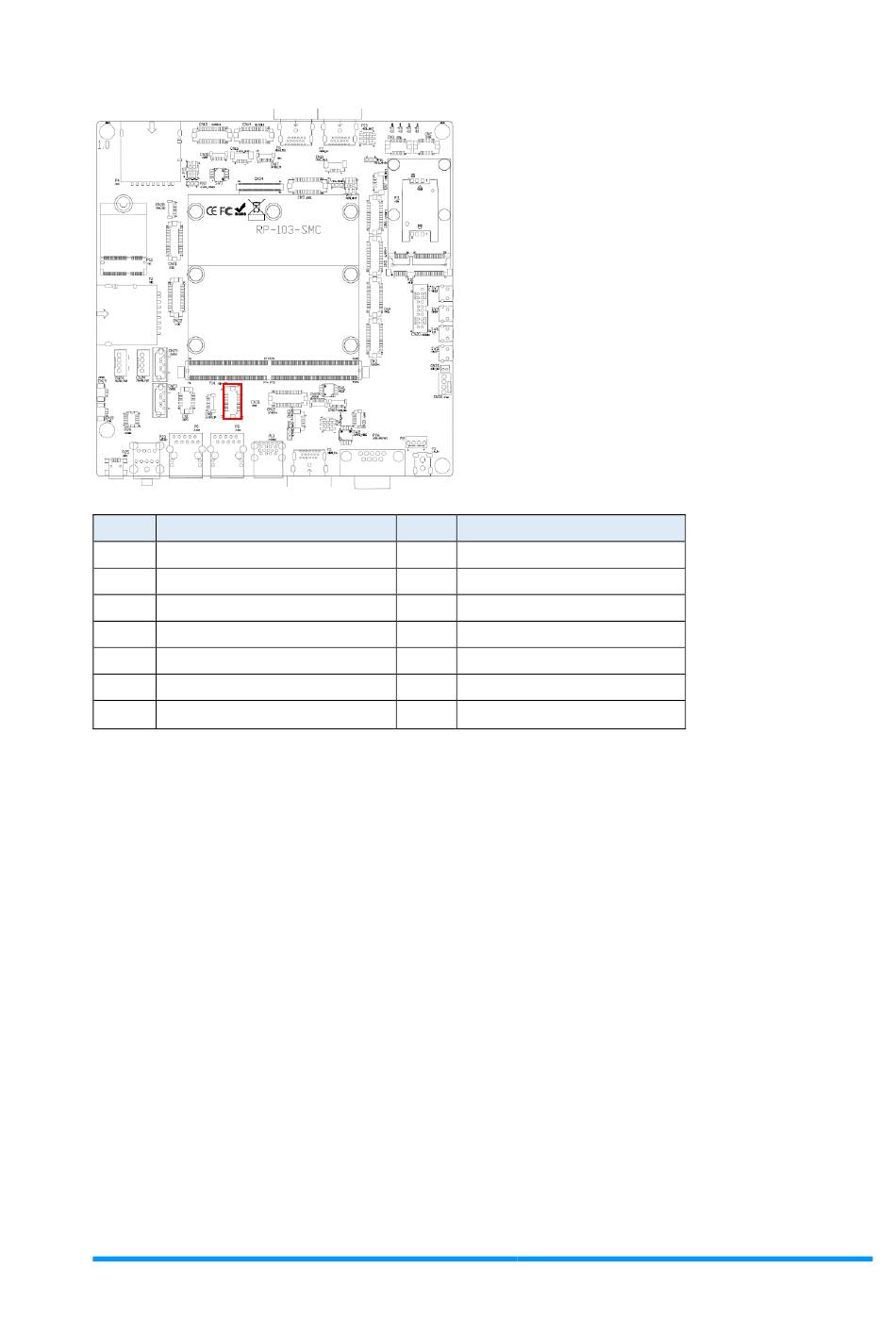

CN31: DIO

Pin # Signal Name
2 GPIO6/M2_I2C_IRQ_B
4 GPIO7/HP_DET_B
6 GPIO8/MIC_DET_B
8 GPIO9/TP_INT_B
10 GPIO10/TP_RST_B
12 GPIO11/M2_BT_DIS_B
14 GND
*Multi-Pin are used with others.
RP-103-SMC User Manual
Settings on the Carrier Board
Pin # Signal Name
1 1V8
3 GPIO0/CSI1_PWEN_B
5 GPIO1/CSI2_PWEN_B
7 GPIO2/CSI1_RST_B
9 GPIO3/CSI2_RST_B
11 GPIO4/HDA_RST_B
13 GPIO5/M2_WIFI_DIS_B
