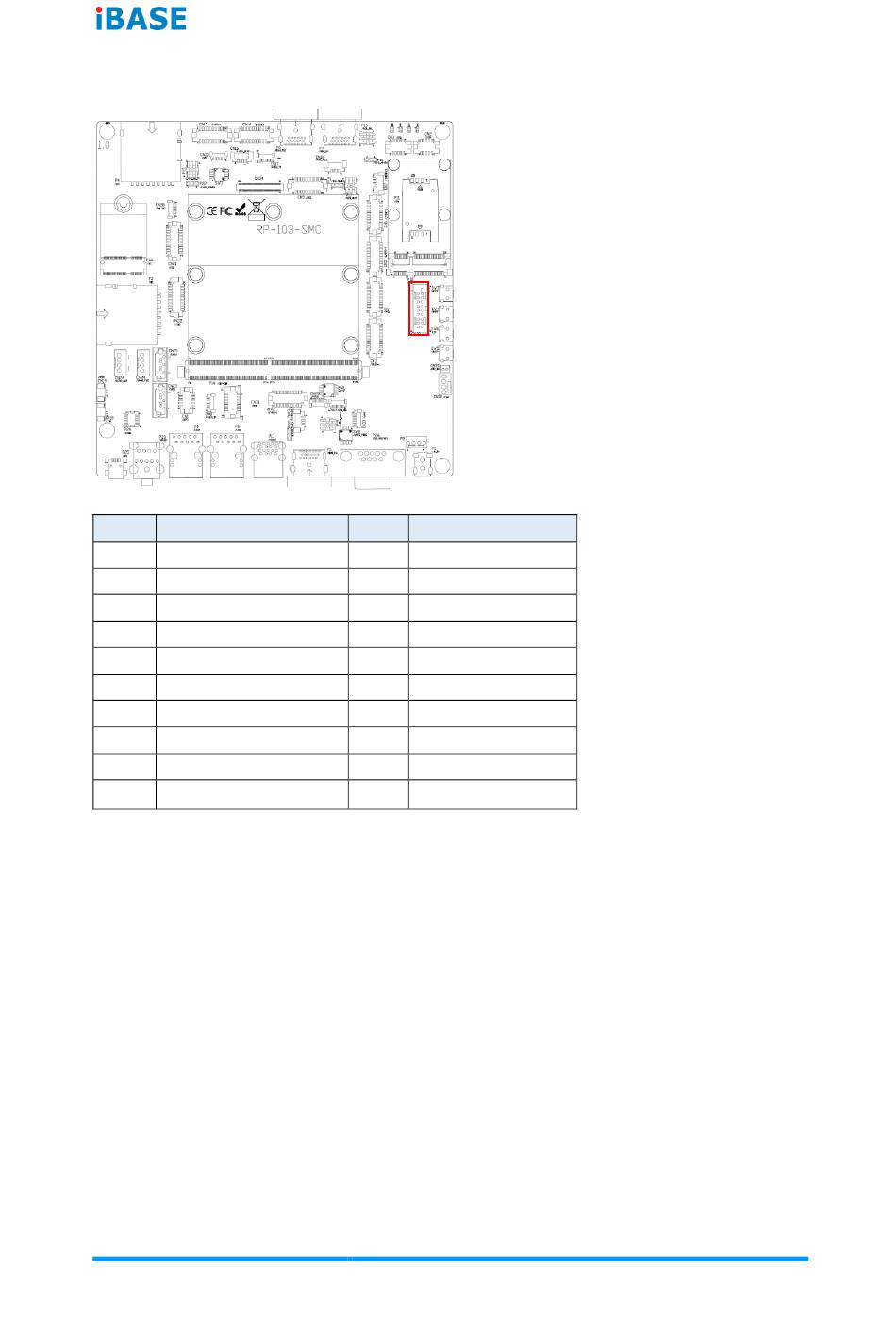

CN20: USB3/4
Pin #
Signal Name
1
USB_PWR_OUT3
2
RXDM3
3
RXDP3
4
GND
5
TXDM3
6
TXDP3
7
GND
8
DM3
9
DP3
10
N.C.
36
Pin #
Signal Name
-
-
19
USB_PWR_OUT4
18
RXDM4
17
RXDP4
16
GND
15
TXDM4
14
TXDP4
13
GND
12
DM4
11
DP4
