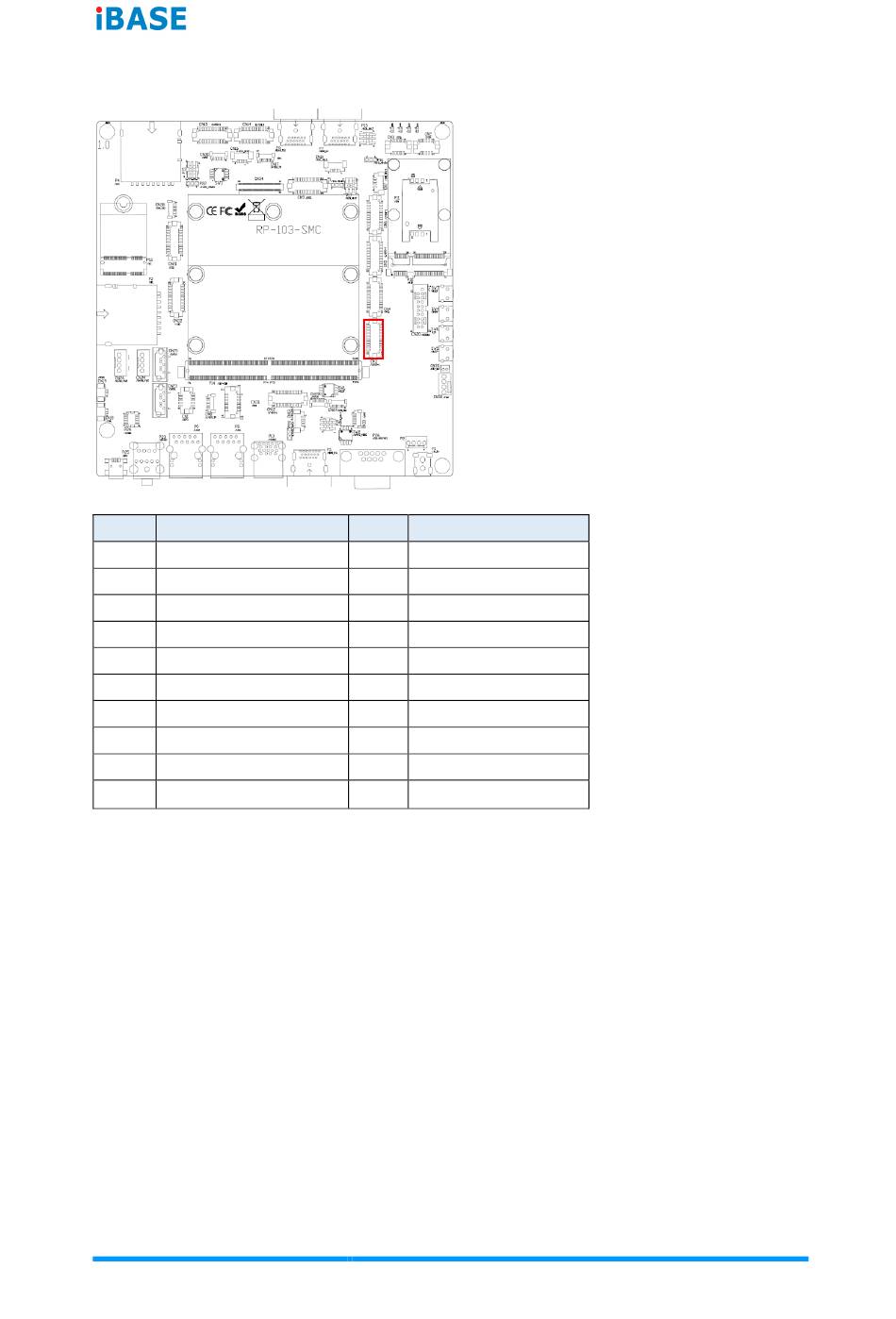

CN11: Dual-channel LVDS0 ch0

Pin # Signal Name
2 LVDS0_0_TX0_N
4 GND
6 LVDS0_0_TX1_N
8 LVDS0_VLCD
10 LVDS0_0_TX3_N
12 LVDS0_0_TX2_N
14 GND
16 LVDS0_0_CLK_N
18 LVDS0_VLCD
20 LVDS0_BKLT
28
Pin # Signal Name
1 LVDS0_0_TX0_P
3 GND
5 LVDS0_0_TX1_P
7 GND
9 LVDS0_0_TX3_P
11 LVDS0_0_TX2_P
13 GND
15 LVDS0_0_CLK_P
17 LVDS0_BL_PWM
19 LVDS0_BKLT
