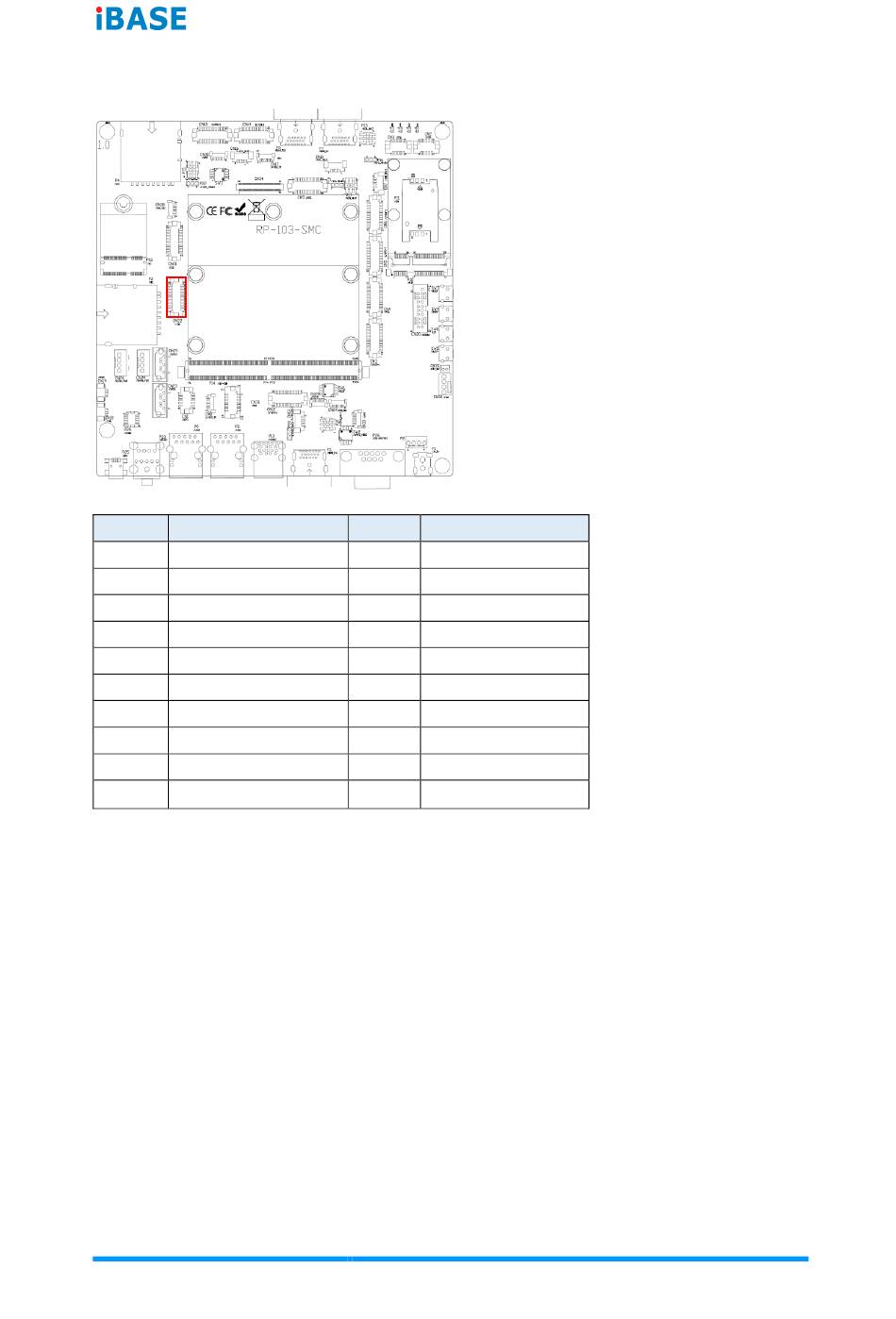

CN22: MIPI CSI1

Pin # Signal Name
2 MIPI_CSI2_CKN
4 MIPI_CSI2_DNO
6 MIPI_CSI2_DN1
8 MIPI_CSI2_DN2
10 MIPI_CSI2_DN3
12 GND
14 CSI2_SDA
16 2V8
18 1V8
20 GND
*Multi-Pin are used with others.
38
Pin # Signal Name
1 MIPI_CSI2_CKP
3 MIPI_CSI2_DP0
5 MIPI_CSI2_DP1
7 MIPI_CSI2_DP2
9 MIPI_CSI2_DP3
11 GND
13 CSI2_SCL
15 CSI2_RST_B
17 CSI2_PWEN_B
19 CSI_MCLK
