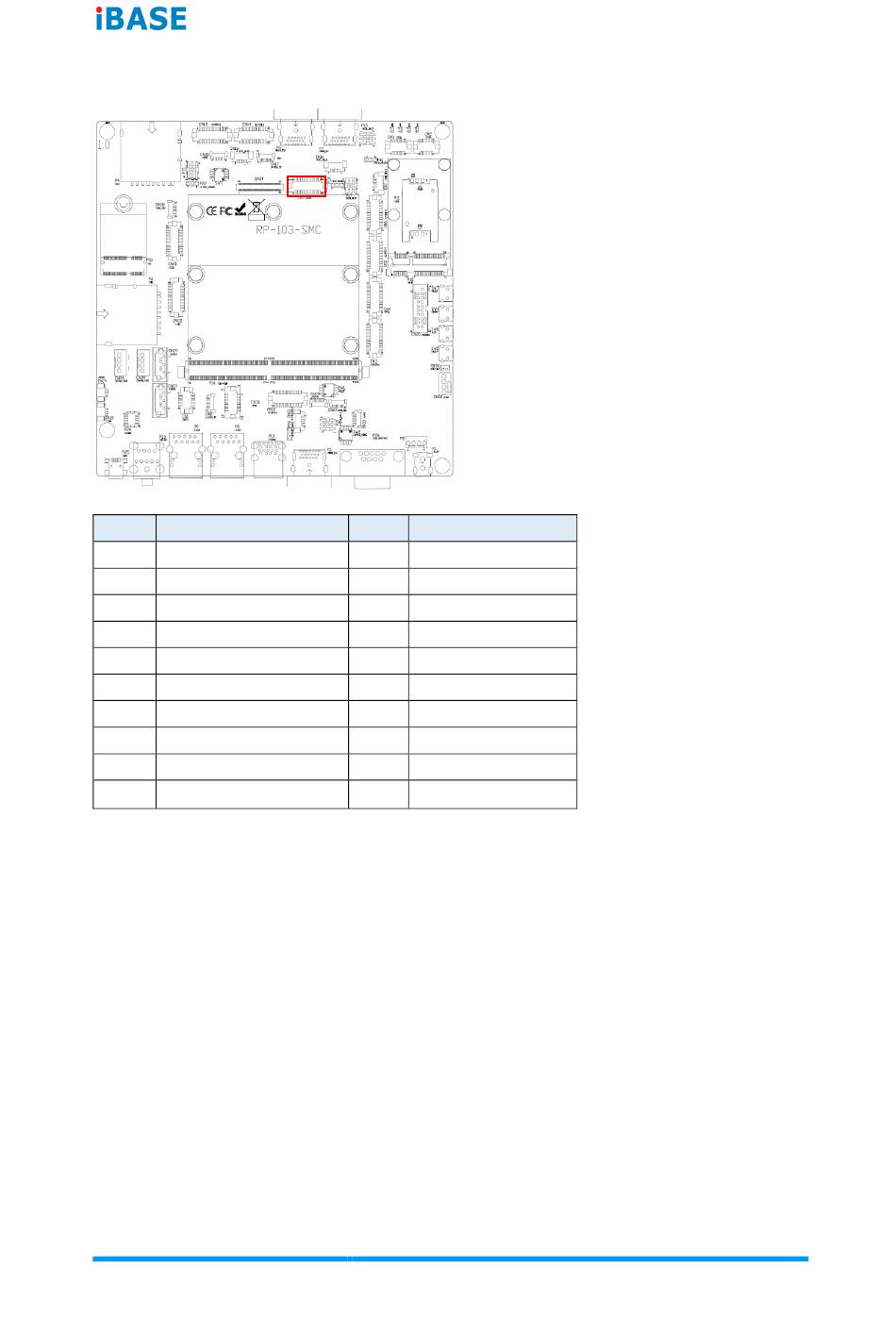

CN9: MIPI-DSI1 (RM-N8QM only)

Pin # Signal Name
2 MIPI_DSI1_CKN
4 GND
6 MIPI_DSI1_DNO
8 DSI0_VLCD
10 MIPI_DSI0_DN1
12 MIPI_DSI0_DN2
14 SPDIF0_TX1
16 MIPI_DSI1_DN3
18 DSI1_VLCD
20 DSI1_BKLT
26
Pin # Signal Name
1 MIPI_DSI1_CKP
3 GND
5 MIPI_DSI1_DP0
7 GND
9 MIPI_DSI1_DP1
11 MIPI_DSI1_DP2
13 DSI1_INT_B
15 MIPI_DSI1_DP3
17 DSI1_TS_SCL
19 DSI1_TS_SDA
