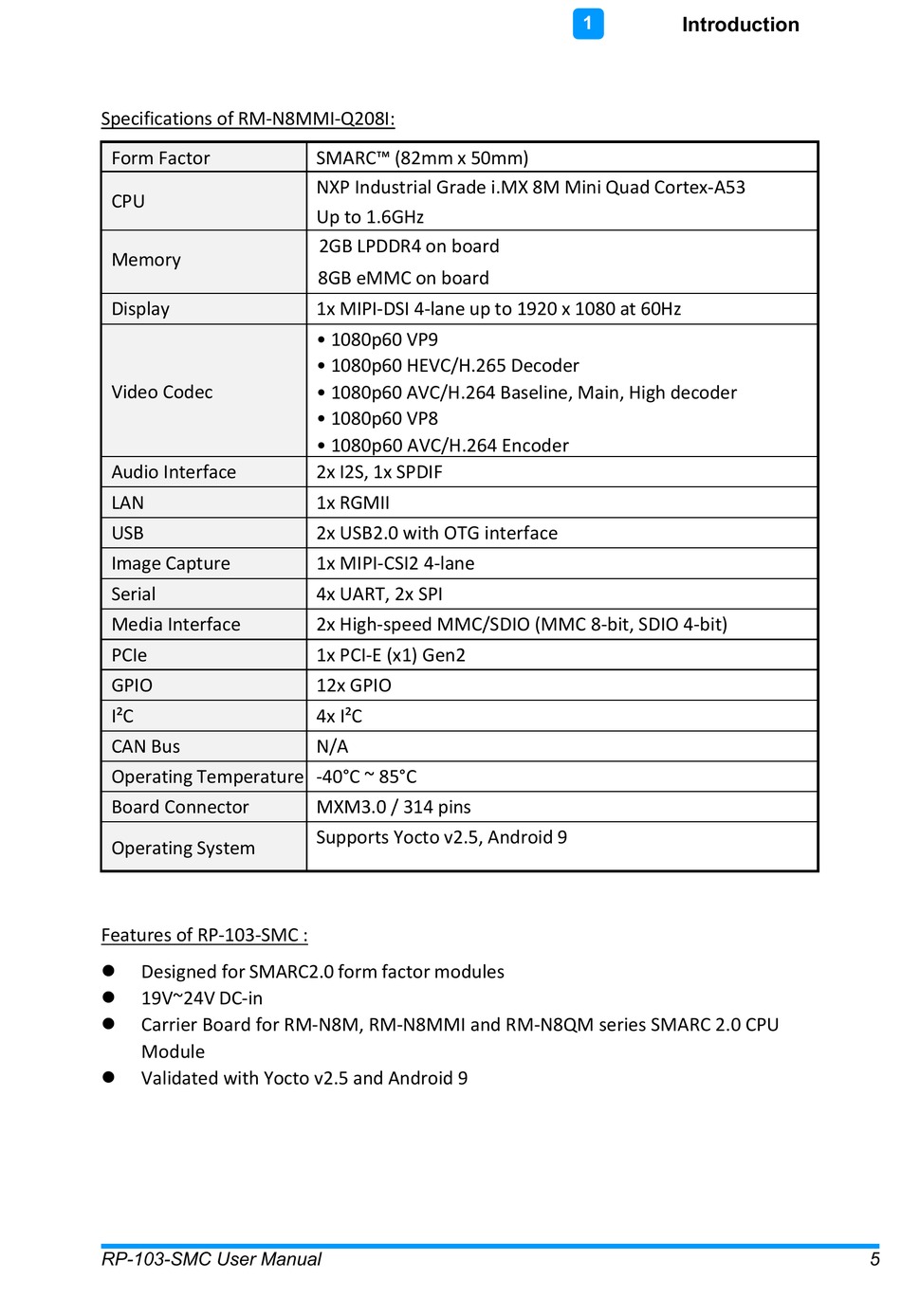

Specifications of RM-N8MMI-Q208I:
Form Factor
CPU
Memory
Display
Video Codec
Audio Interface
LAN
USB
Image Capture
Interface
Serial
Media Interface
PCIe
GPIO
I²C
CAN Bus
Operating Temperature -40°C ~ 85°C
Board Connector
Operating System
Features of RP-103-SMC :
Designed for SMARC2.0 form factor modules
l
19V~24V DC-in
l
Carrier Board for RM-N8M, RM-N8MMI and RM-N8QM series SMARC 2.0 CPU
l
Module
Validated with Yocto v2.5 and Android 9
l
RP-103-SMC User Manual
SMARC™ (82mm x 50mm)
NXP Industrial Grade i.MX 8M Mini Quad Cortex-A53
Up to 1.6GHz
2GB LPDDR4 on board
8GB eMMC on board
1x MIPI-DSI 4-lane up to 1920 x 1080 at 60Hz
• 1080p60 VP9
• 1080p60 HEVC/H.265 Decoder
• 1080p60 AVC/H.264 Baseline, Main, High decoder
• 1080p60 VP8
• 1080p60 AVC/H.264 Encoder
2x I2S, 1x SPDIF
1x RGMII
2x USB2.0 with OTG interface
1x MIPI-CSI2 4-lane
4x UART, 2x SPI
2x High-speed MMC/SDIO (MMC 8-bit, SDIO 4-bit)
1x PCI-E (x1) Gen2
12x GPIO
4x I²C
N/A
MXM3.0 / 314 pins
Supports Yocto v2.5, Android 9
