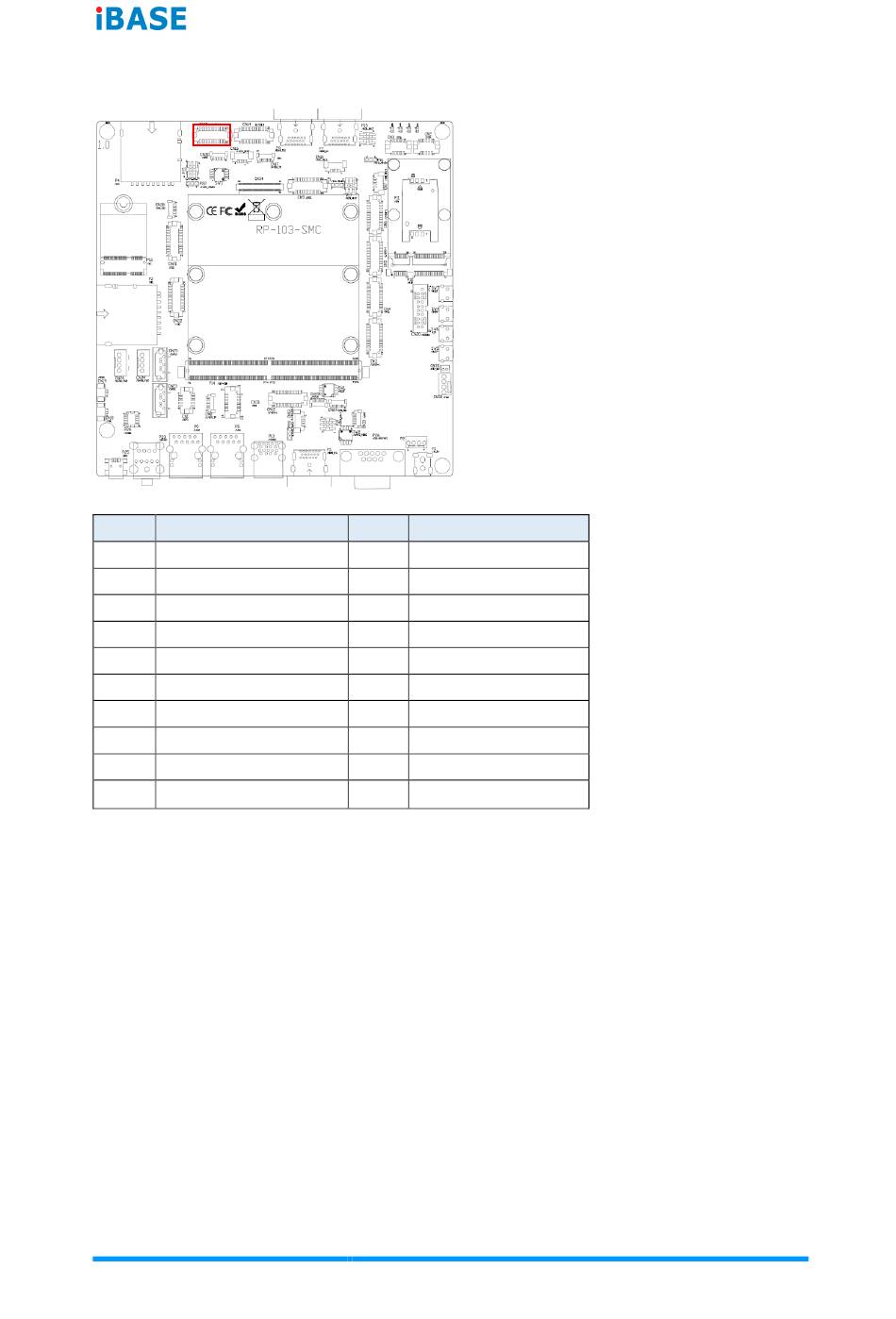

CN15: Dual-channel LVDS1 ch1 (RM-N8QM only)

Pin # Signal Name
2 LVDS1_1_TX0_N
4 GND
6 LVDS1_1_TX1_N
8 LVDS1_VLCD
10 LVDS1_1_TX3_N
12 LVDS1_1_TX2_N
14 GND
16 LVDS1_1_CLK_N
18 LVDS1_VLCD
20 LVDS1_BKLT
32
Pin # Signal Name
1 LVDS1_1_TX0_P
3 GND
5 LVDS1_1_TX1_P
7 GND
9 LVDS1_1_TX3_P
11 LVDS1_1_TX2_P
13 GND
15 LVDS1_1_CLK_P
17 LVDS1_BL_PWM
19 LVDS1_BKLT
