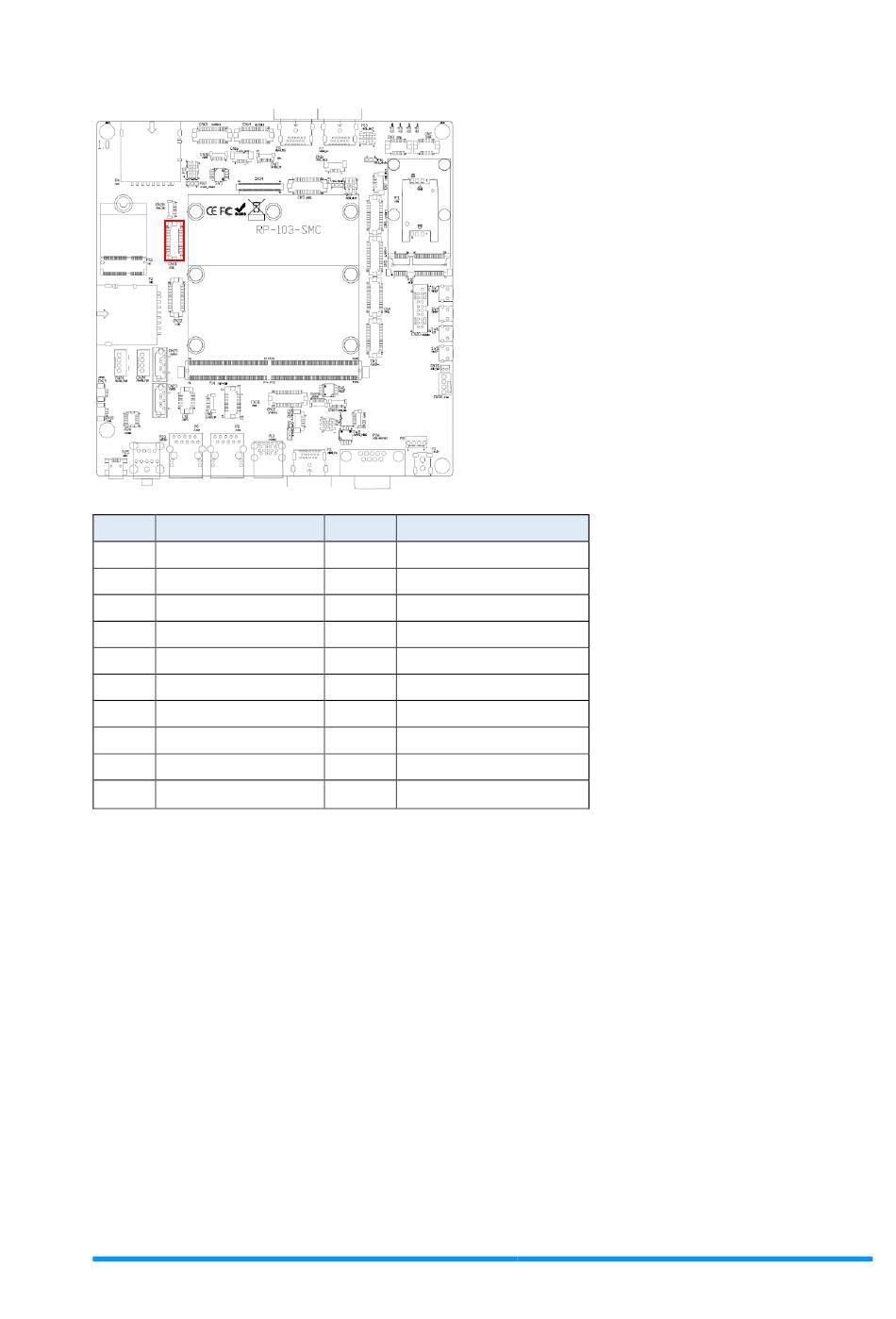

CN21: MIPI CSI1 (RM-N8QM only)

Pin # Signal Name
2 MIPI_CSI1_CKN
4 MIPI_CSI1_DNO
6 MIPI_CSI1_DN1
8 N.C.
10 N.C.
12 GND
14 CSI1_SDA
16 2V8
18 1V8
20 GND
*Multi-Pin are used with others.
RP-103-SMC User Manual
Pin # Signal Name
1 MIPI_CSI1_CKP
3 MIPI_CSI1_DP0
5 MIPI_CSI1_DP1
7 N.C.
9 N.C.
11 GND
13 CSI1_SCL
15 CSI1_RST_B
17 CSI1_PWEN_B
19 CSI_MCLK
Settings on the Carrier Board
37
