3.5.4 Outputs 7 and 8
Outputs 7 and 8 are programmable and provide a combined output of 1 A. Each
individual output is capable of providing:
•
•
Note:

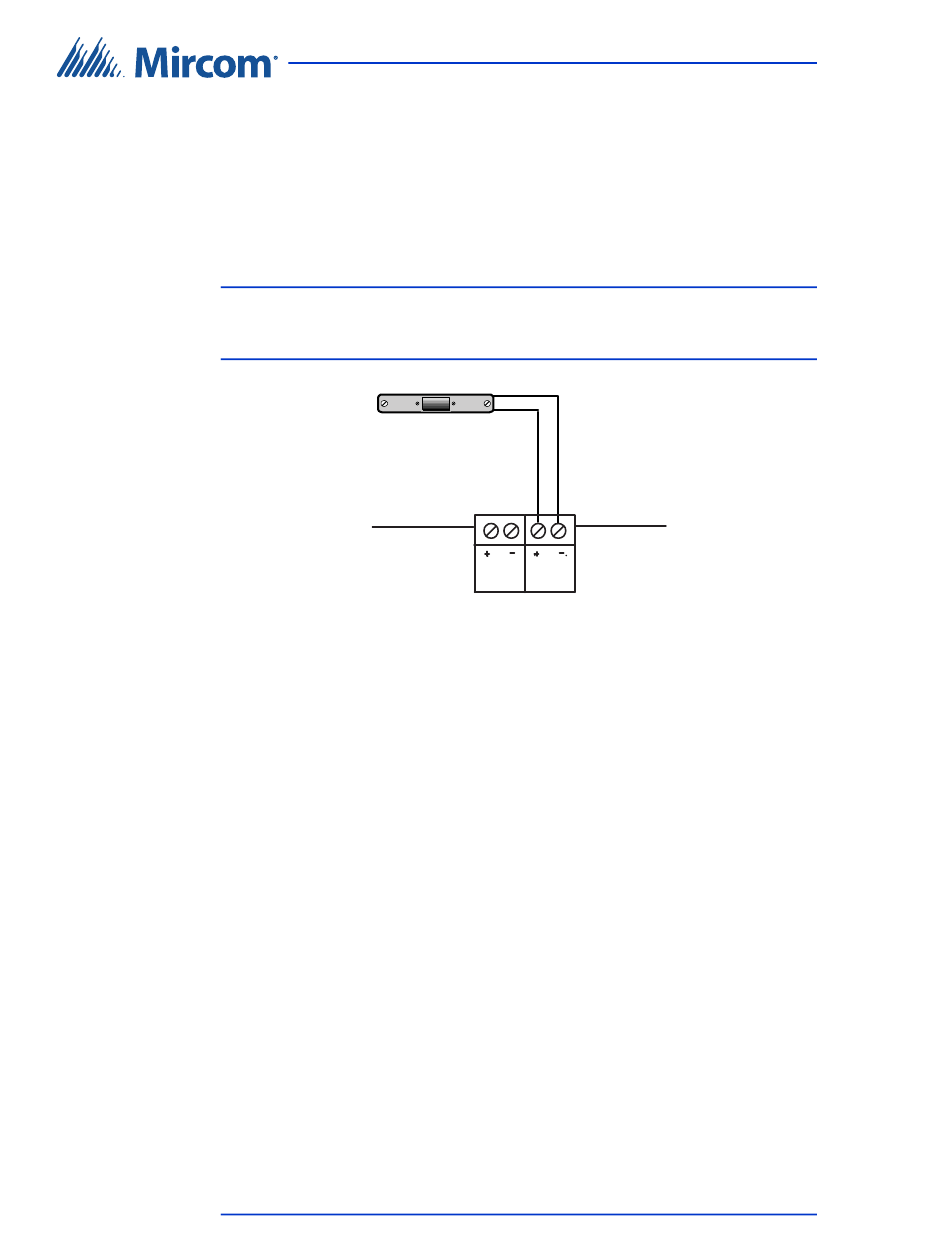

Figure 19. Outputs 7 and 8 Sample Connections
Figure 19 shows a door strike activated and powered by output 8.
3.6

Connecting the Card Reader

The card readers are part of the Mircom Card Access package. The cards are
produced by Mircom.The controller supports two card readers.
3.6.1 Card Reader Requirements
Mircom provides several multi protocol proximity card readers.
Third party card readers must meet the following minimum requirements in order
to be compatible with Mircom's Card Access System:
•
•
•
•
•
TX3-CX Card Access System Installation and Operation Manual
42
LT-980 Copyright 2017
12 VDC
500mA of current (700 mA maximum)
Outputs 7 and 8 are capable of providing a maximum output of
700 mA each, for a combined output of 1 A. For example, if output
7 provides 700 mA, then output 8 provides 300 mA.
Door Strike
must support the 26 bit standard SIA protocol
standard Wiegand interface
LED status indicator
warning or alarm buzzer
12 Volt operation
Installation and Setup of the Card Access Controller
12V 12V
OUTPUT 7 OUTPUT 8
