3.2.5
Installing the TX3-IP Module
The optional TX3-IP IP Module kit comes with the IP Module which allows a
Card Access Controller to connect to an Ethernet TCP/IP network as a Master
Node. Install the IP Module in the location shown in figure 7. Secure the Module
into the location using the supplied four screws.
For additional documentation see the TX3-IP IP Module Installation Instructions
LT-1161.
Note:

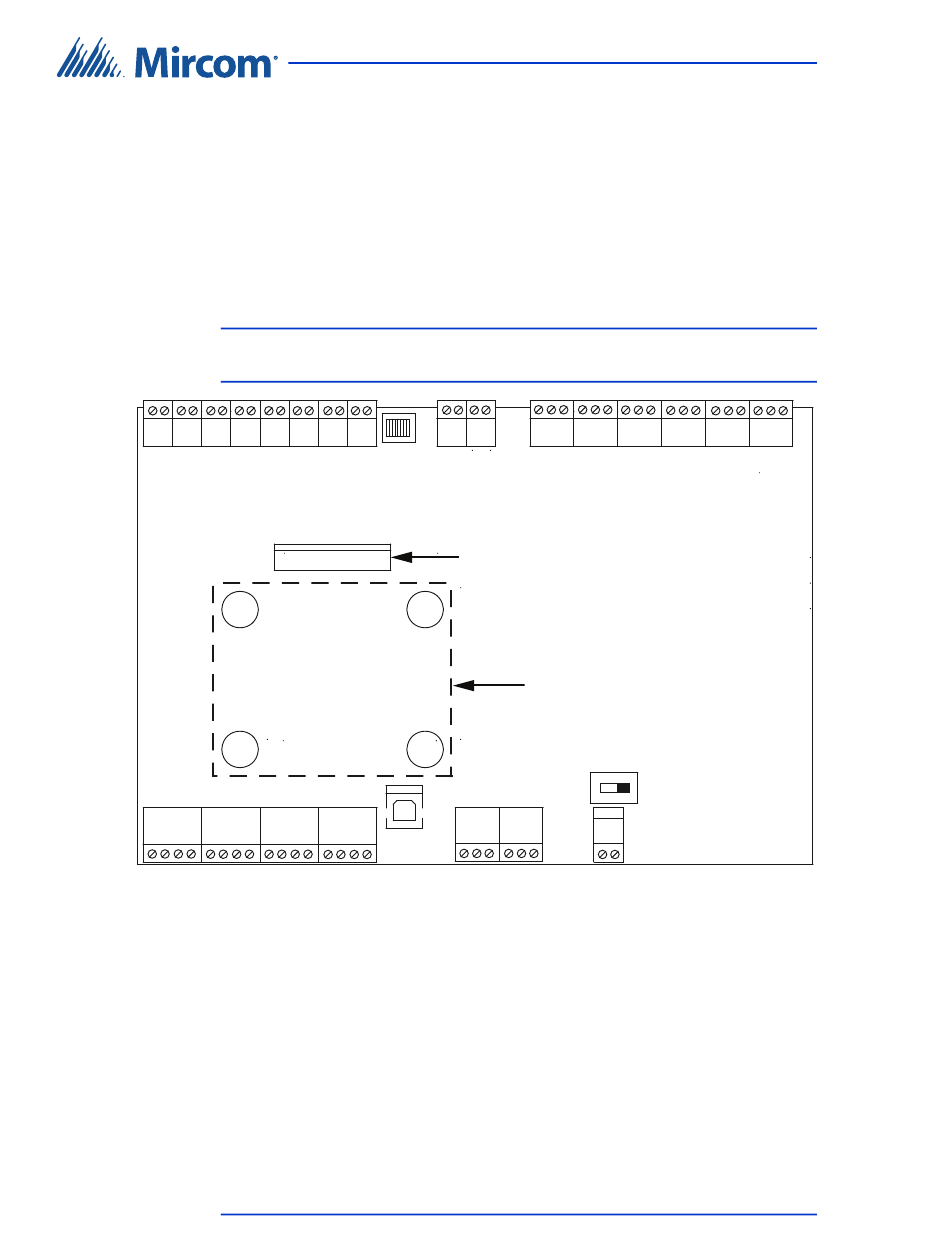

Figure 7.
TX3-CX Card Access System Installation and Operation Manual
30
LT-980
Copyright 2017
Installation and Setup of the Card Access Controller
The IP Module can only be installed on the TX3-CX-2-A or TX3-
CX-2K-A models.
Interface connection
P4
IP Module Board Location
IP Module Board location
OFF
ON
SW1
Version 4.1
