Installing the modem
Note:
Install the optional TX3-MDM Modem Module in the location shown in figure 6.
Secure the Modem Module into the location using the supplied four screws.
For additional documentation see the TX3-MDM Modem Module Installation
Instructions LT-971.

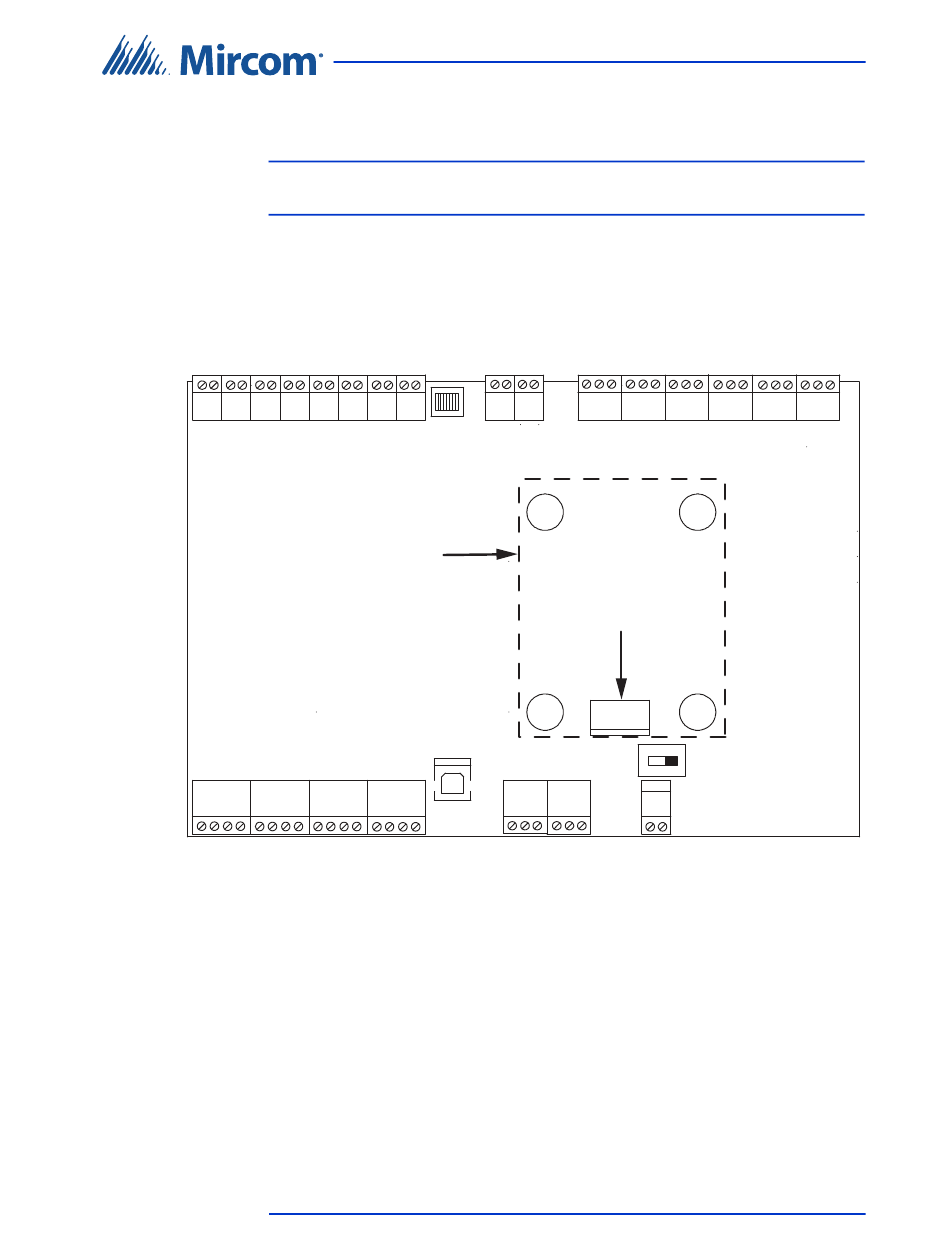

Figure 6.
TX3-CX Card Access System Installation and Operation Manual
Version 4.1
LT-980
Copyright 2017
The TX3-MDM Modem Module is designed to work only with
POTS (plain old telephone system) lines.
TX3-MDM Modem
Board and RS-485
Add-On Module location
Modem Board Location
Installation and Setup of the Card Access Controller
Interface connection
P3
OFF
ON
SW1
29
