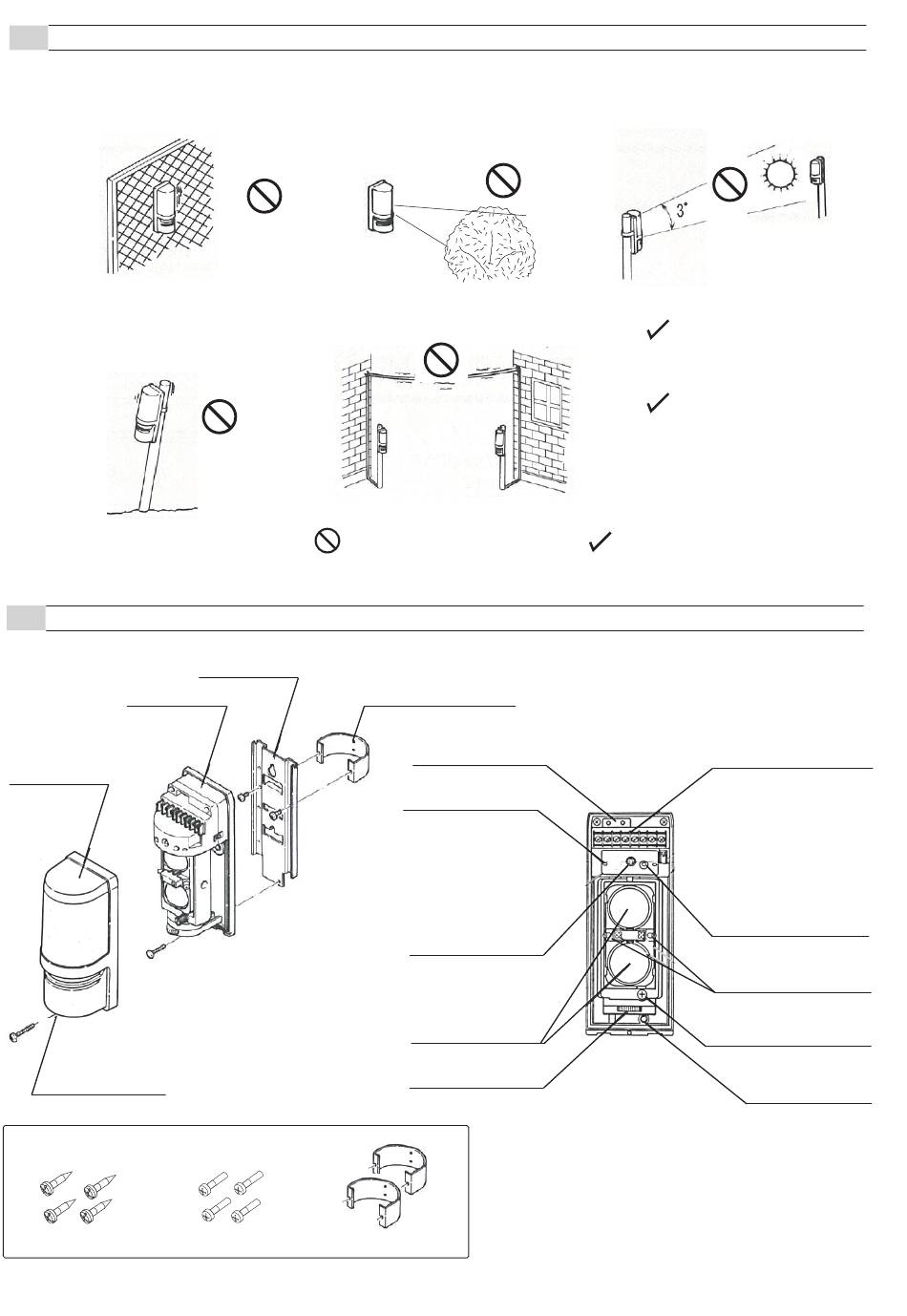

1-2 PRECAUTIONS
Do not install the unit on an
unstable surface.
The mounting pole should have a
solid basis with little movement at
the top of the pole.

1-3 PARTS IDENTIFICATION

Unit Base
Front Cover
Cover Lock Screw
ACCESSORIES >>
4×20 self tapping x 4
Do not install the unit in a location
where trees, leaves, or other objects
that may swing in the wind and block
the beam.
This symbol indicates prohibition.
Mounting Plate
M4×14 screws x 4 U-Shaped brackets x 2
Avoid aerial wiring.
U-Shaped Bracket
(accessory)
Wiring Knockout
Monitor Jack
Beam Interruption
Time Adjustment
Lens
Horizontal Alignment
Dial
- 2 -
Do not install the receiver in a location
where it is exposed to direct sunlight.
For indoor application, the wiring
installation is similar to that of
telephone wirings or the Internet.
For outdoor application, use wire
conduit as far as possible. Some
places require shielded wires or
underground wiring.
This symbol indicates recommendation.
Alarm Indicator
Transmitting Condition
(Transmitter)
Alignment Dial
Unit Base Mounting
Terminals
(Receiver)
View Finder
Vertical
Screw
