Specifications
Model
Detection method
Coverage
Maximum arrival distance
Beam characteristics
Interruption period
Power supply
Current consumption
(Transmitter + Receiver)
Alarm period
Alarm output
Tamper switch
Operating temperature
Environment humidity
Alignment angle
Installation
Weight (Transmitter + Receiver)
* Specifications and design are subject to change without prior notice.
6

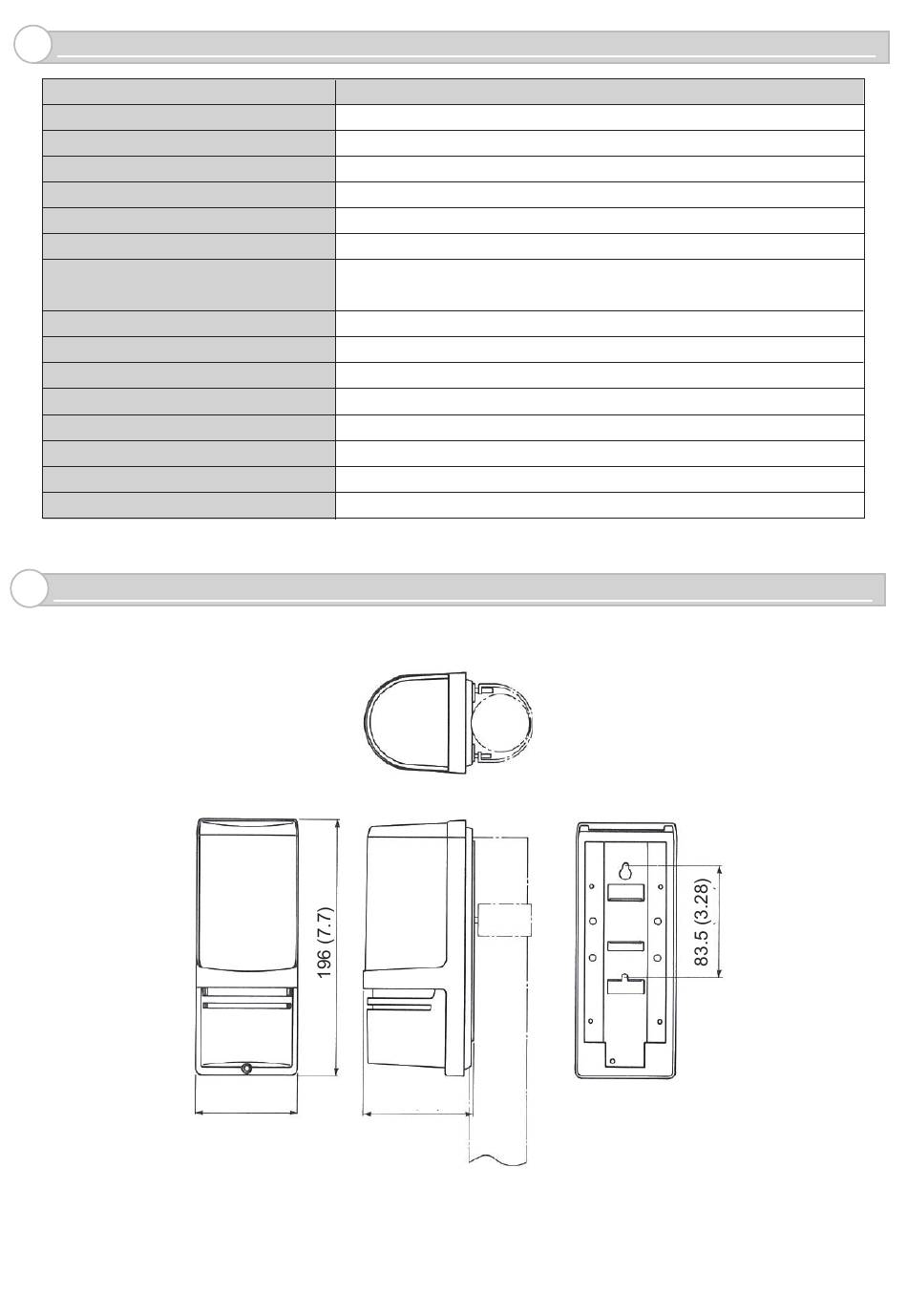

Dimensions
N.C., opens when the cover is removed (receiver only)
78 (3.1) 83 (3.3)
AX-330PLUS
Infrared photoelectric
100 m / 330 ft.
1 000 m / 3 300 ft.
Pulsed infrared
50 to 500 ms (selectable)
10.5 to 28 VDC
Normal operation
46 mA max.
2 sec. (±1) nominal
Form C relay (28 VDC, 0.2 A max.)
-25℃ to +55℃ (-13℉ to +131℉)
95% max.
Vertical: ±5°, horizontal: ±90°
Wall installation/pole installation
1 040 g (36.7 oz)
- 6 -
Unit: mm (inch)
