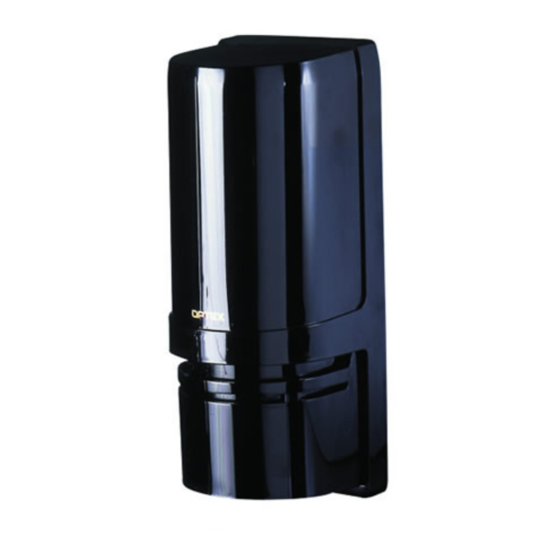

Photoelectric detector

Advertisement

PHOTOELECTRIC DETECTOR
PHOTOELECTRIC DETECTOR
AX-330PLUS
AX-330PLUS
FEATURES
• LED indicator for beam alignment level:
Accurate and reliable alignment can be easily achieved by using LED indicator located on the receiver.
The alarm indicating lamp is located in the front end of the inner housing and in viewfinder.
• Aligned fine angle adjustment:
By turning the dial, you can achieve vertical and horizontal optical adjustments.
• Form C relay:
Suitable for various applications.
• Anti-frost structure:
The front cover prevents fog and condensation from blocking the beams.
• Beam interruption time adjustment:
This feature allows you to select suitable beam interruption time for any environment.
• Alignment-level monitor jack
• Optional accessories ( not included):
Heating unit (HU-2), Back cover (BC-2)
1
INTRODUCTION
1-1 BEFORE YOUR OPERATION
• Read this instruction manual carefully prior to installation.
• After reading, store this manual carefully in an easily accessible place for reference.
• This manual uses the following warning indications for correct use of the product, harm to you or other people and damage to your assets, which
are described below. Be sure to understand the description before reading the rest of this manual.
Warning
Caution
This symbol indicates prohibition. The specific prohibited action is provided in and/or around the figure.
This symbol requires an action or gives an instruction.
Warning
Caution
Failure to follow the instructions provided with this indication and improper handling may cause
death or serious injury.
Failure to follow the instructions provided with this indication and improper handling may cause
injury and/or property damage.
Do not use the product for purposes other than the detection of moving objects such as
people and vehicles. Do not use the product to activate a shutter, etc., which may
cause an accident.
Do not touch the unit base or power terminals of the product with a wet hand (do not
touch when the product is wet with rain, etc.). It may cause electric shock.
Never attempt to disassemble or repair the product. It may cause fire or damage to the
devices.
Do not exceed the voltage or current rating specified for any of the terminals during
installation, doing so may cause fire or damage to the devices.
Do not pour water over the product with a bucket, hose, etc. The water may enter,
which may cause damage to the devices.
Clean and check the product periodically for safe use. If any problem is found, do not
attempt to use the product as it is and have the product repaired by a professional
engineer or electrician.
INSTALLATION INSTRUCTIONS
Model
AX-330PLUS
- 1 -
No.59-2709-0 1712-25
Detection range
100 m / 330 ft.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AX-330PLUS and is the answer not in the manual?

Questions and answers

Summary of Contents for Optex AX-330PLUS

  • Page 1 No.59-2709-0 1712-25 INSTALLATION INSTRUCTIONS PHOTOELECTRIC DETECTOR PHOTOELECTRIC DETECTOR AX-330PLUS AX-330PLUS Model Detection range AX-330PLUS 100 m / 330 ft. FEATURES • LED indicator for beam alignment level: Accurate and reliable alignment can be easily achieved by using LED indicator located on the receiver.
  • Page 2: Parts Identification

    1-2 PRECAUTIONS Do not install the unit on an Do not install the unit in a location Do not install the receiver in a location unstable surface. where trees, leaves, or other objects where it is exposed to direct sunlight. that may swing in the wind and block the beam.
  • Page 3: Normal Installation

    INSTALLATION 2-1 Normal installation Pole installation Range/ height/ angle about 0.6 m (2.0 ft.) Alignment angle; about Horizontal Vertical 0.1 m Detection range; (3.9 inch.) 100 m (330 ft.) about max. (3.3 ft.) Mounting height; 0.7 to 1.0 m 10° (±5°) * Mounting pole;...
  • Page 4 2-3 Terminal and wiring Receiver Transmitter ALARM OUTPUT TAMPER Form C (N.C.) (28 VDC 0.2 A max.) POWER INPUT POWER INPUT 10.5 to 28 VDC 10.5 to 28 VDC SPARE COM N.C. N.O. SP TAMPER m (ft.) Wiring distance Wire size 12 VDC 24 VDC When using two or more units on one wire,...
  • Page 5: Optical Alignment

    Optical alignment The reliability of photoelectric detector depends on the level of optical alignment. Use the following method to ensure that the maximum voltage can be obtained from the monitor jack by means of a voltmeter. 4-1 Horizontal and vertical alignment Observe the viewfinder of the transmitter and the receiver.
  • Page 6 Specifications Model AX-330PLUS Detection method Infrared photoelectric Coverage 100 m / 330 ft. Maximum arrival distance 1 000 m / 3 300 ft. Beam characteristics Pulsed infrared Interruption period 50 to 500 ms (selectable) Power supply 10.5 to 28 VDC...
  • Page 7: Troubleshooting List

    Troubleshooting list 7-1 "No Action" on the transmitter or receiver after power has been applied. START Check to see that power Disconnect the power wires from the power supply and Check to see that the wires are properly the photoelectric beam and test for short or open circuit. Call a technical support.
  • Page 8 SHANGHAI OFFICE (China) URL: http://www.optex.net/br/es/sec URL: http://www.optex.com.pl Authorized representative in Europe: URL: http://www.optexchina.com OPTEX (EUROPE) LTD. OPTEX (EUROPE) LTD. / EMEA HQ (U.K.) OPTEX PINNACLE INDIA, PVT., LTD. (India) / EMEA HEADQUARTERS OPTEX (Thailand) CO., LTD. (Thailand) URL: http://www.optex-europe.com URL: http://www.optex.net/in/en/sec Marandaz House 1 Cordwallis Park, URL: http://www.optex.net/th/th...
