2

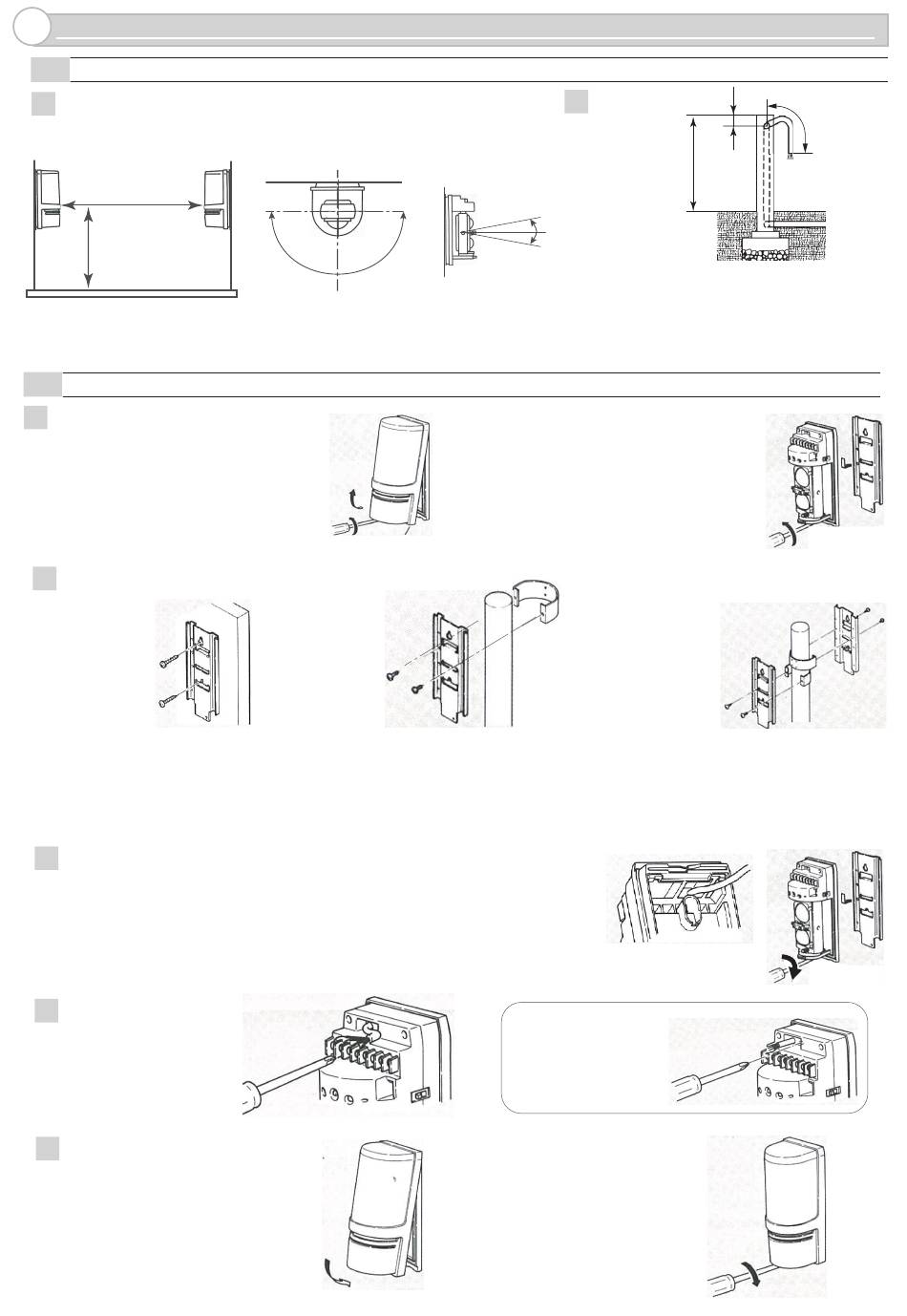

INSTALLATION
2-1 Normal installation
1
Range/ height/ angle
Detection range;
100 m (330 ft.)
max.
Mounting height;
0.7 to 1.0 m
(2.3 to 3.3 ft.)
2-2 Installing method
1
Separating
Loosen the cover lock screw and
remove the front cover.
Mounting
2
Wall mounting
Pull out wires through the wiring
hole on the mounting plate and
fix the mounting plate on the wall
with screws.
Wires and fixing
3
Pull the wires through the wiring holes of the unit base.
Connect the unit base to the mounting plate through the hook on the top of the unit base.
Push the unit base until it is fully engaged with the mounting plate.
Tighten the mounting screws on the bottom of the unit base.
Connecting
4
Connect wires to the terminals.
(refer to Terminal and wiring
in Section 2-3).
Place the front cover
5
Place the front cover after the optical
alignment and the walk test.
( Refer to optical alignment in Section 4).
Alignment angle;
Horizontal
180° (±90°)
Pole mounting
Place the U-shaped bracket on the mounting
pole, and pull out wires through the wiring
hole on the mounting plate and fix the
mounting plate on the U-shaped bracket
with screws.
- 3 -
2
Pole installation
Vertical
10° (±5°)
* Mounting pole; φ43~48 mm (1 11/16''~1 7/8'')
(Standard U.S. 1 1/2''pipe)
* The length of wiring cable out of the pole;
within 0.6 m (2.0 ft.)
* After finishing the pole installation,
align the transmitter and receiver with each other.
Loosen the unit base mounting screw and
slide the mounting plate downwards relative
to the unit base to remove it.
Two unit mounting
( back to back)
Fix two U-shaped brackets in layers on a pole, two
units can be mounted back-to-back on a pole at the
same height.
Knockout for the second wire
Dig out a hole on the right
side of the rubber bushing
marked with ◎, when it is
need for the second wire.
Tighten the cover lock screw.
about 0.6 m
(2.0 ft.)
about
0.1 m
(3.9 inch.)
about
1 m
(3.3 ft.)
