Indoor Recessed Mount PIR Detector
Indoor Recessed Mount PIR Detector
AP-360BR(C)
AP-360BR(C)
360°/Battery operated model

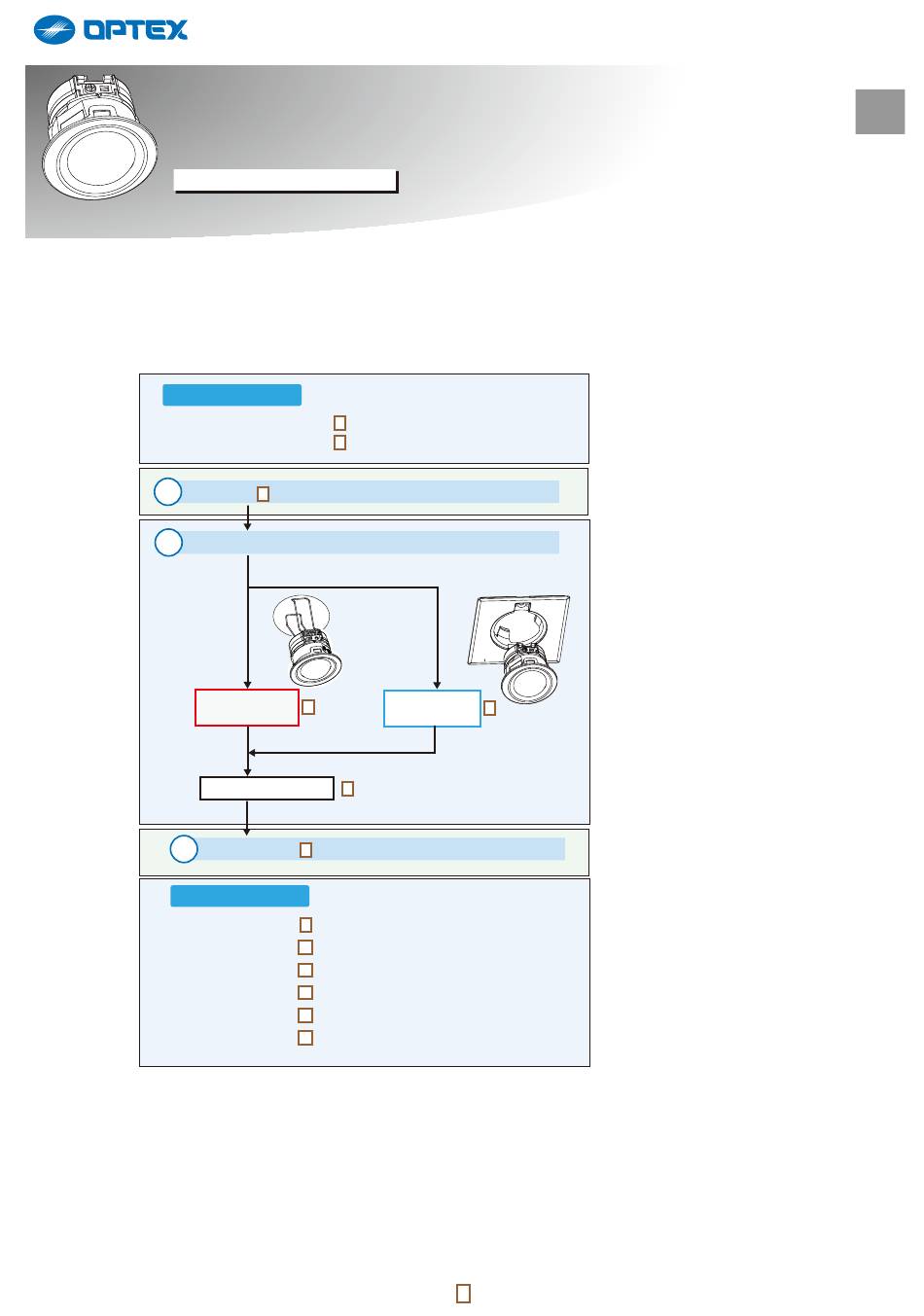

<< Contents >>
Page
2
3
1
4
2
5
3
8
9
10
10
11
11
12
360° ø6.0 m (20' ) detection area
mount
6
7
1
INSTALLATION INSTRUCTIONS
at 4.5 m (14' 9" ) mounting height
No.59-3222-0 2207-04
EN
Advertisement
Table of Contents
Related Manuals for Optex AP-360BR
Summary of Contents for Optex AP-360BR
-
Page 1: Table Of Contents
No.59-3222-0 2207-04 INSTALLATION INSTRUCTIONS Indoor Recessed Mount PIR Detector Indoor Recessed Mount PIR Detector AP-360BR(C) AP-360BR(C) 360°/Battery operated model 360° ø6.0 m (20’ ) detection area at 4.5 m (14’ 9” ) mounting height << Contents >> Before installation Page - Manufacturer’... -
Page 2: Before Installation
Before installation - Manufacturer’ s statement Symbol Meaning Symbol Meaning Check mark indicates recommendation. Failure to follow the instructions provided with this indication Warning Nix sign indicates prohibition. and improper handling may cause death or serious injury. Failure to follow the instructions provided with this indication Special attention is required to the Caution NOTE... -
Page 3: Parts Identification
- Parts identifications Base cover Alarm output mode PIR sensitivity Battery saving timer Tamper switch Top cover Lens Accessories Mounting Bezel for an 86-type box Retaining spring x 2 Fixing screw Screw cap x 2... -
Page 4: Settings
Settings Disassemble Open the base cover, and to set the detector. Jumper pin settings Alarm output mode PIR sensitivity Turn the jumper PIN by 90 degrees to prevent interference with the casing. N.C. (default) N.O. (recommended) (default) Mounting height: > 3.5 m 3.0 to 3.5 m <... -
Page 5: Installation
Installation 2-1. Ceiling mount without switch box Accessories used in this installation Install a retaining spring on both sides. (follow the illustrated arrow steps to complete the assembly of the retaining spring.) Retaining spring x 2 Make a ø45 mm (1.77”) hole in the ceiling for mounting. Insert the detector into the hole with the retaining spring facing up. -
Page 6: Ceiling
2-2. Ceiling mount with 86-type box Accessories For the 86-type box mount, dual 86-type boxes are recommended NOTE with the additional one used to accommodate the transmitter. used in this installation Mounting Bezel Transmitter for an 86-type box Alarm Tamper Screw cap x 2 Prepare an 86-type box on the ceiling. -
Page 7: Wiring
2-3. Wiring [1] Red Power supply: positice [2] Black Power supply: negative [3] White Alarm output [4] Yellow Alarm output [5] Green Tamper output [6] Blue Tamper output Transmitter Alarm Tamper... -
Page 8: Checking
Checking 3-1. Walk test Power on. Wait for 60 seconds to complete the warm-up time. 60 sec. Power Walk in the detection area to check the detecting performance. Start operation. -
Page 9: Others
Others - Specifications Model AP-360BR(C) Detection method Passive infrared Detection area ø6 m (ø20’ at mounting height: 4.5 m (14’9” ft.) 2.5 to 4.5 m (8’2” ft. to 14’9” ft.) Mounting height Mounting mode Recessed ceiling mount/86-type box mount Sensitivity 2.0℃... -
Page 10: Dimensions
- Dimensions With 86-type box mount Without switch box mount 102 (4.02) 86 (3.39) Unit: mm (inch) - Detection area Top view 3.0 (9’10”) 2.0 (6’7”) Maximum detection area 1.0 (3’3”) Mounting height (8’ 2’ ) (9’ 10” ) (11’... -
Page 11: Troubleshooting
- Timing chart Walk test mode Low power mode 10 minutes after power on < 120 s/5 s > 120 s/5 s Detection PIR detection signal Stand-by Pulse count 2 No alarm signal output Alarm output Alarm output Stand-by LED off LED off LED on LED output... -
Page 12: Compliance
OPTEX CO., LTD. (JAPAN) www.optex.net OPTEX INC./AMERICAS HQ (U.S.) OPTEX SECURITY SAS (France) OPTEX KOREA CO.,LTD. (Korea) www.optexamerica.com www.optex-europe.com/fr www.optexkorea.com OPTEX (EUROPE) LTD./EMEA HQ (U.K.) OPTEX SECURITY Sp.z o.o. (Poland) OPTEX (DONGGUAN) CO.,LTD. www.optex-europe.com www.optex-europe.com/pl SHANGHAI OFFICE (China) www.optexchina.com OPTEX SECURITY B.V.
