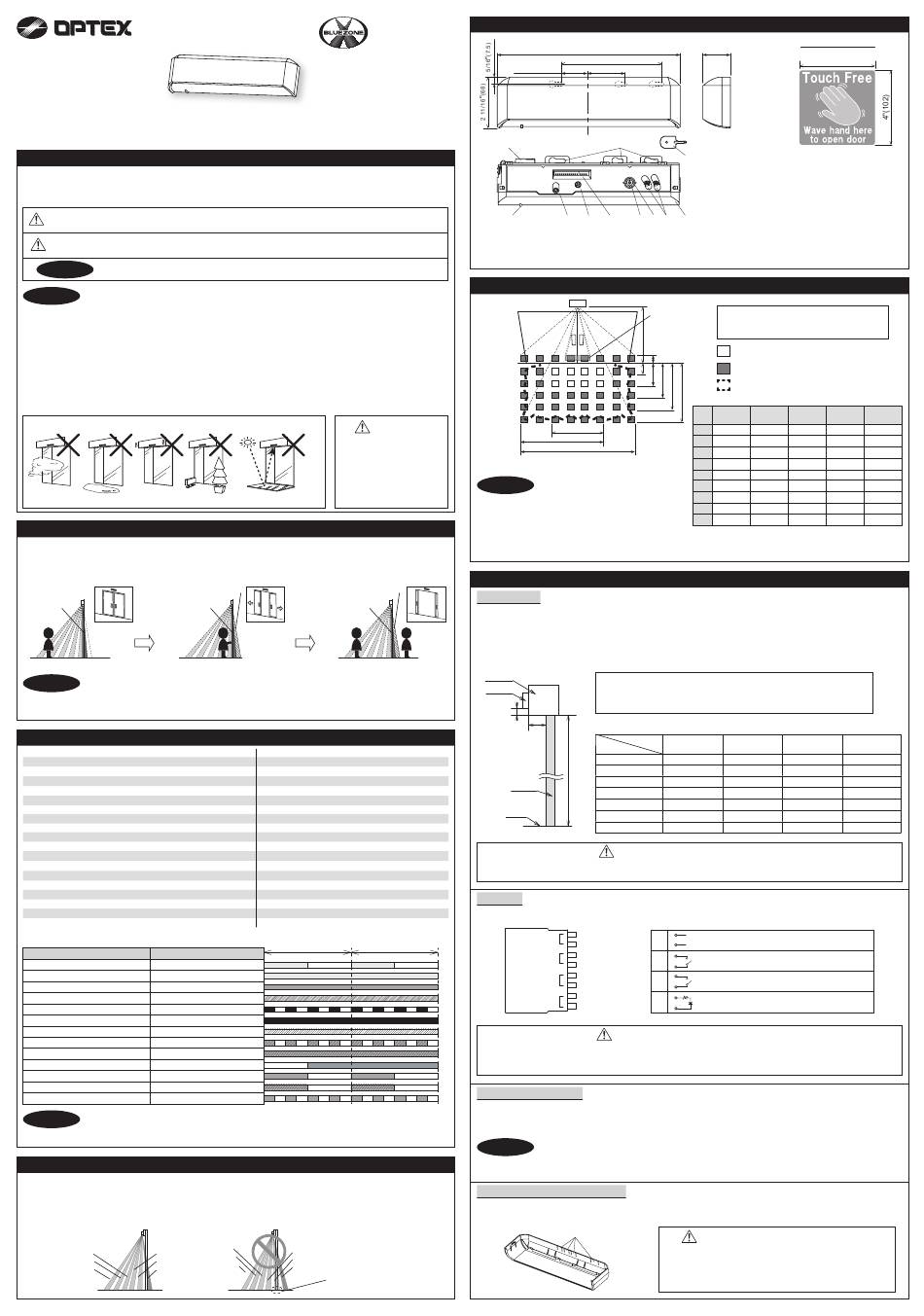

Optex AIR-SLIDE T Manual

AIR-SLIDE T
Manufacturer's statement
Read this operation manual carefully before use to ensure proper operation of this product.
Failure to read this operation manual may cause improper operation and may result in serious injury or death of a person.
The meanings of the symbols are as follows.
Failure to follow the instructions provided with this indication and improper handling may cause
WARNING
death or serious injury.
Failure to follow the instructions provided with this indication and improper handling may cause
CAUTION
injury and/or property damage.
NOTE
Special attention is required to the section of this symbol.
NOTE
1. This product is a non-contact switch intended for header mount or wall mount for use on an automatic
door. Do not use for any other applications.
2. When setting the sensor's detection area, make sure that there is no traffic around the installation site.
3. Before turning the power ON, check the wiring to prevent damage or malfunction of equipment
connected to the product.
4. Only use the product as specified in the operation manual provided.
5. Be sure to install and adjust the sensor in accordance with the local laws and standards of the country
in which the product is installed.
6. Before leaving the installation site make sure that the product is operating properly and instruct the
building owner/operator on proper operation of the door and the product.
7.The product settings can only be changed by an installer or service engineer. When changed, the
changed settings and the date shall be registered in the maintenance logbook accompanying the door.
The following conditions are not suitable for sensor installation.
Fog,
Exhaust Wet Vibration
Working principle
This sensor is designed to detect a hand approaching to a touchless plate as a knowing act activation device.
Please make sure to understand the following working principle.
If FLEX EYE mode is enabled (Dipswitch 14 is set to "ON"), this sensor an activation output when both FLEX EYE and 2nd
to 4th row of detection area detect some objects. FLEX EYE means an area for the hand detection.
FLEX EYE FLEX EYE
6 5 4 3 2 1 6
NOTE
Safety output is designed to be used on door system that enables only while the door is open.
BLUEZONE is only activated while activation output is emitted. When no detection, BLUEZONE is
deactivated. When FLEX EYE is enabled (dipswitch 14 is set to "ON"), detection area (of 2nd to 6th row)
is safety output area.
Specifications
Model : AIR-SLIDE T
Cover color : Black
Mounting height : 6'7"(2.0 m) to 9'10"(3.0 m)
Detection area : See Detection area
Detection method : Active infrared reflection
Depth angle adjustment : 1st to 6th rows -8° to +8°
FLEX EYE -14° to +2°
Width angle adjustment : 1st to 6th rows ±7°
(2 clicks with 3.5°every click-Left/Right)
FLEX EYE ±42°
(7 clicks with 6°every click-Left/Right)
Power supply : 12 to 24 VAC ±10% (50/60 Hz)
12 to 30 VDC ±10%
Power consumption : < 2.5 W (< 6 VA at AC)
Operation indicator : See Operation indicator table
Output hold time : Approx. 1.0 s
Response time : < 300 ms
Operating temperature : -31 to 131°F(-35 to +55°C)
Operating humidity : < 80 %
Operation indicator table
Status Operation indicator color
Set-up Yellow blinking
Stand-by (installation mode)
Stand-by (operation mode)
BLUEZONE (1st row) detection (*1)
2nd row detection Red blinking
3rd row detection
4th-6th row detection
FLEX EYE detection Fast Purple blinking
FLEX EYE & 2nd-4th row detection
Communication test output Turn off 500 ms (*2)
Signal saturation Slow Green blinking
Signal saturation (FLEX EYE) Slow Purple blinking
Sensor failure Fast Green blinking
NOTE
The specifications herein are subject to change without prior notice due to improvements.
*1 : See BLUEZONE area
*2 : LED will be turned off approx. 500 ms when the sensor test output signal works well.
BLUEZONE area
When dipswitch 15 is set to "ON", the BLUEZONE area is active and looks through the threshold.
In case the BLUEZONE function is not required, set dipswitch 15 to "OFF".
Do not overlap the 2nd row into the threshold area, regardless of dipswitch 15 setting.
4th row 3rd row
5th row 2nd row
BLUEZONE
6th row
(1st row)
Danger of electric shock
Do not wash, disassemble,
rebuild or repair the sensor,
otherwise it may cause electric
shock or breakdown of the
equipment.
Objects Reflection, Grating floor
BLUEZONE BLUEZONE
FLEX EYE
5 4 3 2 1 6 5 4
Activation output : Form A relay
50 V 0.3 A Max.
(Resistance load)
Test intput : Opto coupler
Voltage 5 to 30 VDC
Current 6 mA Max. (30 VDC)
Safety output : Form A relay
50 V 0.3 A Max.
(Resistance load)
IP rate : IP54
Weight : 8.1 oz (230 g)
Accessories : 1 Operation manual
2 Mounting screws
1 Mounting template
1 Area adjustment tool
1 Cable 9'10"(3 m)
(8 × 0.22 mm² AWG 24)
1000 ms
Yellow
Green
Blue
Red
Orange
Purple
4th row
3rd row
5th row
2nd row
6th row
BLUEZONE
(1st row)
2nd row overlapping
the threshold
Dimensions and part names
"
1 7/16 (36)
(1)
5924593 JAN 2023
(3)
Detection area
Sliding door
BLUEZONE
(1st row)
2nd row
3rd row
4th row
5th row
6th row
WARNING
NOTE
The actual detection area may be different depending on
the ambient light, the color/material of the object or the
floor as well as the entry speed of the object.
The sensor may not be activated when the entering speed
of the object or a person is slower than 2"(50 mm)/s or
faster than 4'11"(1500 mm)/s.
Installation
1. Mounting
a. Attach the mounting template at the desired mounting position.
(When setting the detection area close to the door, mount the sensor according to the chart below.)
b. Drill two mounting holes of ø1/8" (ø3.4 mm).
c. To pass the cable through the header, drill a wiring hole of ø3/8" (ø10 mm).
d. Remove the mounting template.
e. Remove the housing cover. Secure the sensor to the mounting surface with the two mounting screws.
3 2 1
Header
Sensor
Y
X
Door
Floor
Make sure within the range of "Y", otherwise it can be dangerous since there may be no detection area around the
threshold. Install the sensor as low as possible to the bottom of the header.
2. Wiring
Wire the cable to the door controller as shown below.
Power
supply
1000 ms
Activation
output
Safety
output
Test
input
Before starting the procedure, make sure that the power is turned OFF.
When passing the cable through the hole, do not tear the shield otherwise it may cause electric shock or breakdown of
the sensor.
3. Turn ON the power
a. Plug the connector.
b. Supply power to the sensor. Adjust the detection area and set the dipswitches.
(See Adjustments 4. Dipswitch settings)
NOTE
Make sure to connect the cable correctly to the door controller before turning the power ON.
When turning the power ON or after adjusting the settings, do not enter the detection area for more than
10 s in order to enable the presence detection.
4. Mounting the cover
Installing the cover.
If wiring is to be exposed, remove the knockout.
" "
9 5/8 (245) 1 7/16 (37)
"
4 15/16 (125)
"
1 11/16 (43)
[inch(mm)]
(2)
(11)
(1) Connector
(2) Mounting holes
(3) Operation indicator
(4) Width angle adjustment screw(FLEX EYE)
(5) Depth angle adjustment screw(FLEX EYE)
(6) Dipswitches
(4) (5) (6) (7) (8) (9) (10)
(7) Depth angle adjustment screw(1st-6th rows)
(8) Width angle adjustment screw(1st-6th rows)
(9) Width pattern adjustment screws
(10) Detection window
(11) Area adjustment tool
FLEX EYE FLEX EYE
4th to 6th rows
1st to 3th rows
A
B
C
D
E
F
G
Emitting area
A 6'7"
H
B 7"
I
C 10"
J
D 1'9"
E 2'8"
F 3'9"
G 5'
H 3'2"
I 5'1"
J 7'
Charts show the values in the following
Depth angle adjustment setting : 0°
Width angle adjustment setting : 0°
H : Height from the floor to the bottom of the header
(The mounting height is "H + Y".)
Y : Distance between the bottom of the header and the sensor
X : Distance between the door and the mounting surface
Maximum mounting distance (Y)
H
X
6'7" (2.00)
5 1/2" (0.14) 5 1/2"
0
2" (0.05) 5" (0.13)
H
4" (0.10) 4" (0.11)
6" (0.15) 3 1/2" (0.10) 3 1/2"
8" (0.20) 3 1/2" (0.09) 3 1/2" (0.09)
10" (0.25) 2 1/2" (0.07) 2 1/2" (0.07)
12" (0.30) 2" (0.06)
CAUTION
Risk of getting caught
1.Grey
1 1 12 to 24 VAC ±10% / 12 to 30 VDC ±10%
2.Grey
3.White
2
2 Form A relay 50 V 0.3 A Max.
4.Yellow
5.White stripe
3
3
Form A relay 50 V 0.3 A Max.
6.Yellow stripe
7.Red (+)
4 4 Opto coupler Voltage 5 to 30 VDC
8.Black (-)
WARNING
Danger of electric shock
Knockout Knockout
WARNING
Do not use the sensor without the cover.
When using the cable knockout, install the sensor indoors or
use the rain cover (separately available) otherwise electric
shock or breakdown of the sensor may occur.
Touchless plate *
4"(102)
*Separately available
: Motion detection
: Motion detection
: Motion/Presence detection
: Emitting spots
: Emitting spots (can be eliminated)
: Detection area
[ feet,inch (m) ]
(2.00) 7'1" (2.15) 7'7" (2.30) 8'2" (2.50) 9'10" (3.00)
(0.17) 7" (0.18) 8" (0.20) 8" (0.21) 10" (0.26)
(0.26) 11" (0.28) 1' (0.30) 1'1" (0.33) 1'4" (0.39)
(0.53) 1'10" (0.57) 2' (0.61) 2'2" (0.66) 2'7" (0.79)
(0.80) 2'10" (0.86) 3' (0.92) 3'3" (1.00) 3'11" (1.20)
(1.14) 4' (1.23) 4'4" (1.32) 4'8" (1.43) 5'8" (1.72)
(1.53) 5'5" (1.64) 5'9" (1.76) 6'3" (1.91) 7'6" (2.29)
(0.96) 3'5" (1.03) 3'7" (1.10) 3'11" (1.20) 4'9" (1.44)
(1.55) 5'5" (1.66) 5'10" (1.78) 6'4" (1.93) 7'7" (2.32)
(2.13) 7'6" (2.29) 8' (2.45) 8'9" (2.66) 10'6" (3.20)
[feet,inch (m)]
7'7" (2.30) 8'2" (2.50) 9'10" (3.0)
(0.14) 5 1/2" (0.14) 0
5" (0.13) 5" (0.13) 0
4" (0.11) 4" (0.11) 0
(0.10) 3 1/2" (0.10) 0
3 1/2" (0.09) 0
2 1/2" (0.07) 0
2" (0.06) 2" (0.06) 0
Danger of electric shock
