PFC-OMND
Installation Guide
1
55"
46"

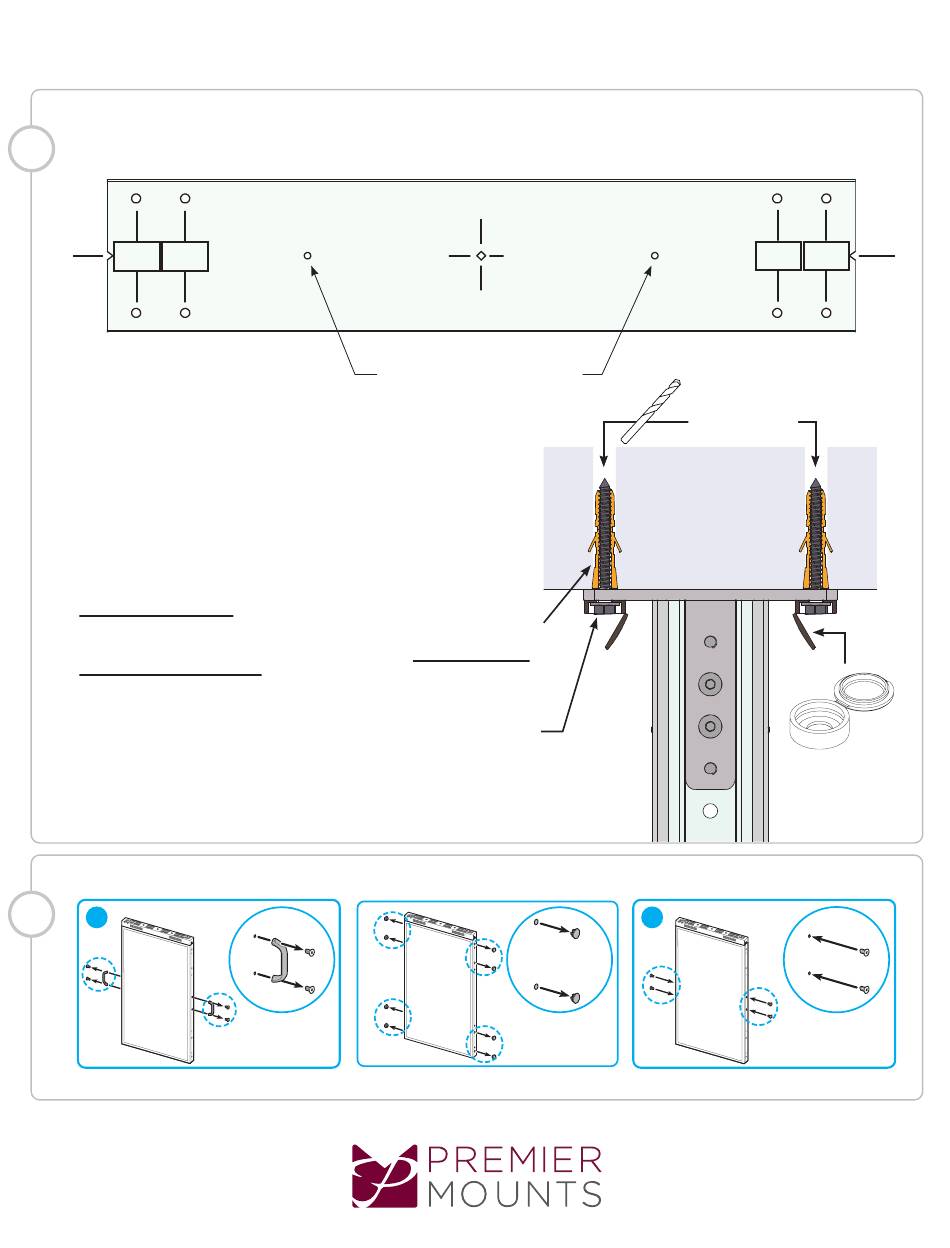

Position the template to the desired location.
Mark the mounting points based of the flat-panel
display sizes, either 46" or 55"
Drill into 4 marked mounting points using specific
size bit depending on the application.
Wood Application:
Use 1/4" drill bit
Concrete Application:
Make a pilot hole with 1/8"
or 7/32" drill bit.
Finish with 3/8" drill bit.
2
1
Page 6
USE THE TEMPLATE FOR PRE-INSTALLATION
For mounting the template
temporary in place.
Finned Anchor
Concrete only
5/16" x 3" Hex Lag
Screw with 5/16"
REMOVE THE HANDLES
See OMN (Semi-outdoor installation guide) for further details.
www.premiermounts.com | North America 800.368.9700 | International +1-714-632-7100
Center Mark
Washer
46"
55"
Use Drill Bit by
application
Snap-on
2
Cap
