Summary of Contents for Premier Mounts PSD-TS

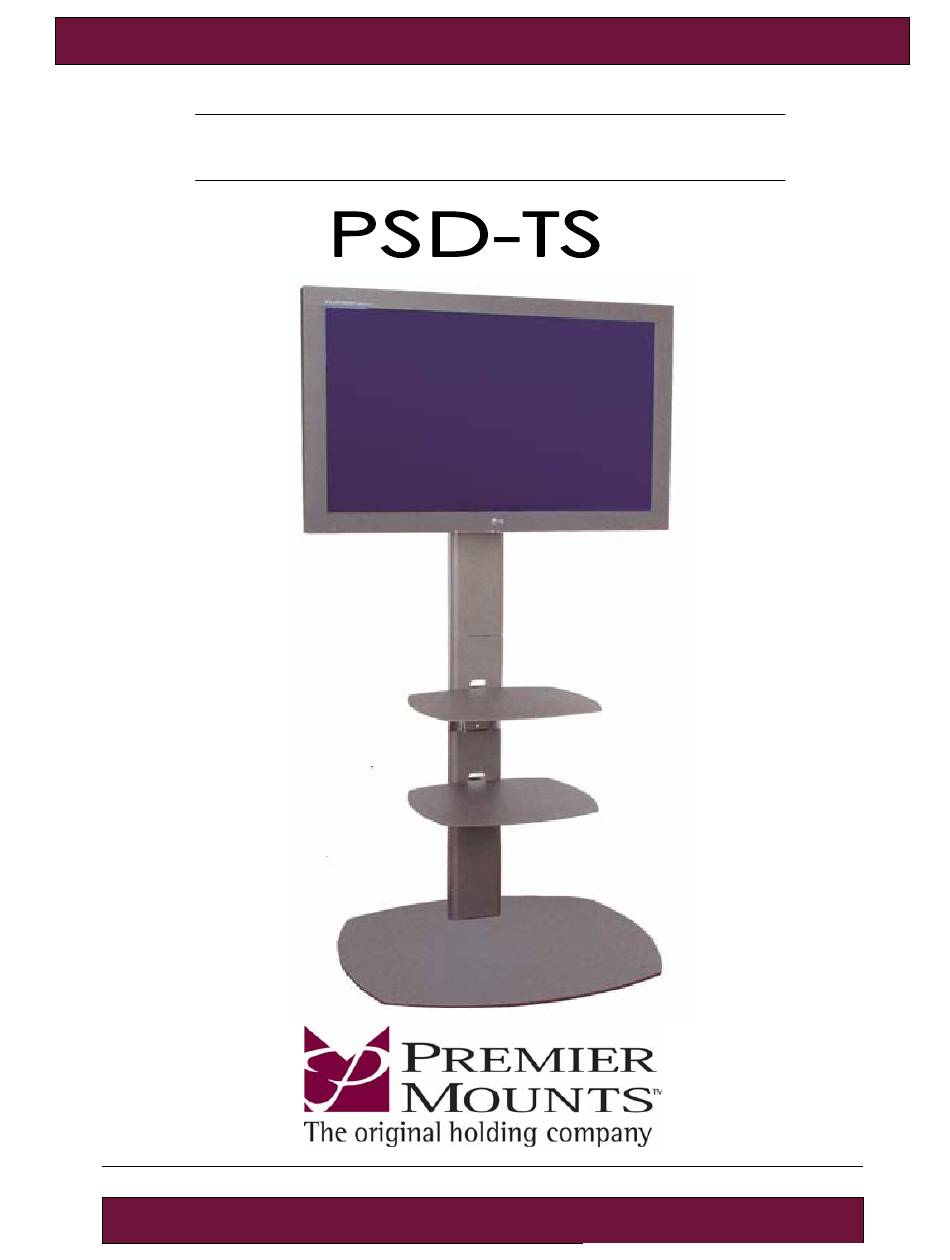

- Page 1 I N S T A L L A T I O N M A N U A L PLASMA STAND MODEL 3130 E. Miraloma Ave. Anaheim, CA 92806 Phone: 800 368-9700 Fax: 800 832-4888 www.mounts.com PREMIER MOUNTS ©2004/ REV 00...
-
Page 2: Table Of Contents

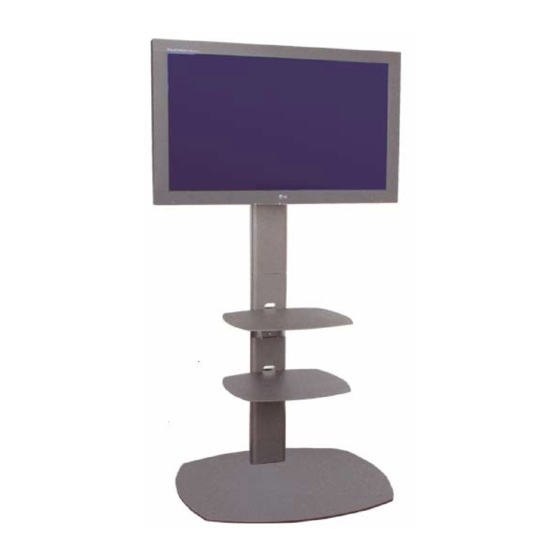

The floor stand can be configured for single flat panel display. Height adjustable to any points along the stand’s vertical post to achieve the perfect viewing height. The flat panel display then locks into place. The post also serves as a conduit for cabling. The PSD-TS stand could mate directly to our CTM or PSM series of mounts. Contents Safety &... -
Page 3: Safety & Precautions
The installation instructions should be read, understood and followed to prevent personal injury or property damage. Keep these installation instructions in an easily accessible location for future reference. Indicates that the power plug is to be disconnected from Contact Premier Mounts for any questions the power outlet. Safety precautions must be taken at all times. -
Page 4: Floor Stand Diagrams
Floor stand diagrams Our PSD-TS floor stands will mate directly with our CTM and PSM series mounts. 35.50 PSD-TS BASE R33.89 MATERIAL: ¼" Steel plate R24.39 COLOR: Silver, Sinterflex gray 19.68 29.50 14.75 R24.39 R1.00 R33.89 Ø.38 (X5) .250 Ø.38 27.22... -
Page 5: Parts List
Parts List SIZE DESCRIPTION BASE PSD-SPA ADAPTER 5/32" ALLEN WRENCH M8 x 10 SOCKET HEAD SCREWS M10 x 12 HEX HEAD SCREWS/ FLAT WASHERS M10 ALLEN WRENCH TOOLS & SUPPLY NEEDED Phillips screwdriver, used on the PSM-Series and (optional) accessory shelf 17 (mm) Socket head Wrench Accessories (Optional) -
Page 6: Installing The Posts To The Base
The PSM and CTM series mount is required to complete the PSD-CS system. Refer to its installation instructions to install the flat plasma display bracket. The location of the stand must be a flat surface. Remove the stand out of the box and check for all proper hardware, if missing any hardware please call Premier Mounts. - Page 7 Installing the back plate to the adapter Install the PSD-SPA (stand adapter) through the top of the tubes and secure it to your desired height with the two (2) M8 x 10 Allen screws (supplied) found on the back of the adapter.
- Page 8 Flat panel display CTM-Series mounting (2) M6 x 12 brackets Safety knobs PSD-TS Base Flat panel display PSD-TS Base (2) M6 x 12 Security screws Securing the base to the floor (Optional) If securing the base to the floor use (commercially available) suitable hardware depending on the installation environment hardware,...
-
Page 9: Optional Shelf
Phillip security screw to the shelf. screw Optional shelf PSD-TS Base (Optional) Cable covers If using the cable covers the optional shelf must be installed. Draw all your cables through the center of the posts and install the cable covers to the post. The magn- etic strips will snap on the poles.
