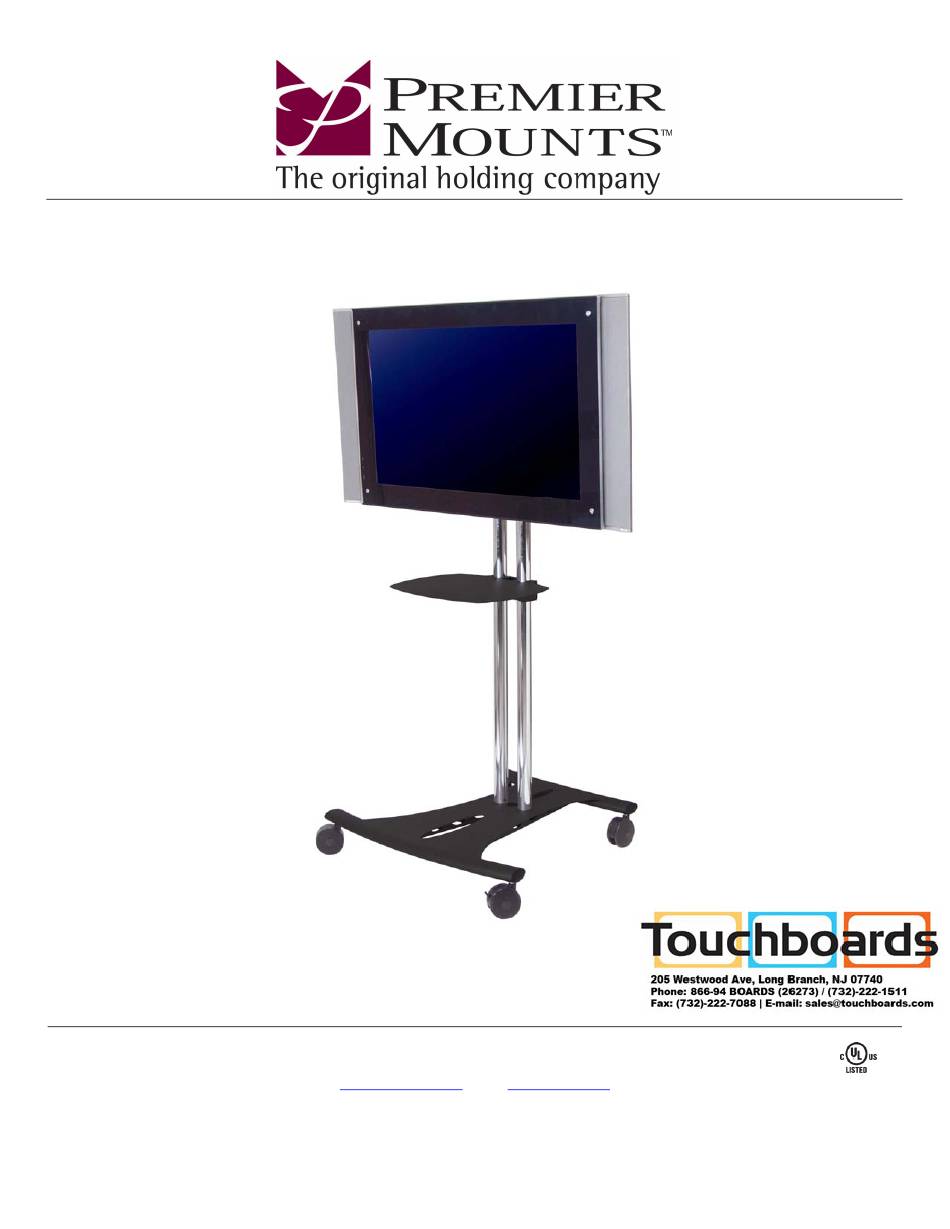

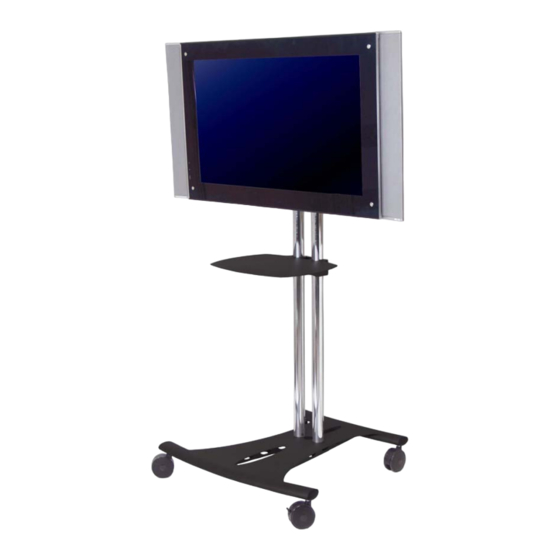

- Page 1 INSTALLATION MANUAL PSD-EB Elliptical Floor Stand Series Premier Mounts 3130 E. Miraloma Avenue Anaheim, CA 92806 Phone: (800) 368-9700 Fax: (800) 832-4888 mounts@mounts.com www.mounts.com IN-PSDEB.R3...
-
Page 2: Table Of Contents
Warranty Limited Lifetime Warranty All Premier Mounts products carry a limited lifetime warranty from ship date against defects in materials and workmanship. Premier Mounts is not liable for improper installation that results in damage to mounts, adapters, display equipment or personal injury. -
Page 3: Contact Premier Mounts
PSD-EB Warning Statements WARNING: THE FLOOR STRUCTURE MUST BE CAPABLE OF SUPPORTING AT LEAST 200 LBS. IF NOT, THE FLOOR STRUCTURE MUST BE REINFORCED. PROPER INSTALLATION PROCEDURE BY A QUALIFIED SERVICE TECHNICIAN, AS OUTLINED IN THE INSTALLATION INSTRUCTIONS, MUST BE ADHERED TO. FAILURE TO DO SO COULD RESULT IN SERIOUS PERSONAL INJURY, OR EVEN DEATH. -
Page 4: Parts List
If there are parts missing and/or damaged, please stop installation contact Premier Mounts (800-368-9700). PSD-EB Base PSD-SPA (1ea) (1ea) 4” Casters (4ea) (2 locking, 2 non-locking) 10mm Set Screws optional (2ea) (Included on the PSD-EB60C/-... -
Page 5: Psd-Eb Assembly Overview
PSD-EB PSD-EB Assembly Overview Unpack the PSD-EB and review any WARNING statements that apply to the installation. Select the desired location for the PSD-EB Floor Stand. Please see Figure 1 for layout. 1. PSD-SPA (1ea) 2. PSD-SHV (Optional) 3. CPA - Magnetic Covers (Optional) 4. -
Page 6: Support Tube Installation
OPTIONAL: Attach the four (4) casters by threading the bolts into the holes that are located under each leg of the PSD-EB base. Make sure that the two locking casters are mounted on the rear legs of the stand. Attach the four (4) levelers by threading the bolts into the holes that are located under each leg of the PSD-EB base. -
Page 7: Installing The Backplate To The Adapter
PSD-EB Installing the Backplate to the Adapter NOTE: The back plate will vary depending on the system ordered. There are two (2) different systems for this stand: PSM series (PDB-UWFB back plate) and CTM (back plate) series. CAUTION: Arrow must be pointing up prior to installation. Secure the following plates to the secured PSD- SPA on the tubes. -
Page 8: Installing The Plasma To The Stand
PSD-EB Installing the Plasma to the Stand CAUTION: The flat panel display is very heavy. Two people are required to safely lift the flat panel and secure it to the back plate installed on the stand. NOTE: To install the PSM-Series or CTM-Series mounting brackets to the flat panel, refer to its installation instructions. -
Page 9: Technical Specifications
Figure 4. Technical Specifications NOTE: If the 84” support tubes are ordered, the PSD-EB will only come with feet levelers. The casters are not an option with the 84” support tubes as the unit will not pass through regular height doors. -
Page 10: Optional Accessories
USA and Canada – Shilton, Coventry, England CV79JY Australia Phone: 800-368-9700 Phone: +44 (0) 2476 614700 Phone: 03 9586 6330 Fax: 800-832-4888 Fax: +44 (0) 2476 614710 www.premiermounts.com.au Other Locations – Phone: 001.714.632.7100; Fax: 001.714.632.1044 ©Premier Mounts 2007 IN-PSDEB.R3 Assembly manual Page 10...
