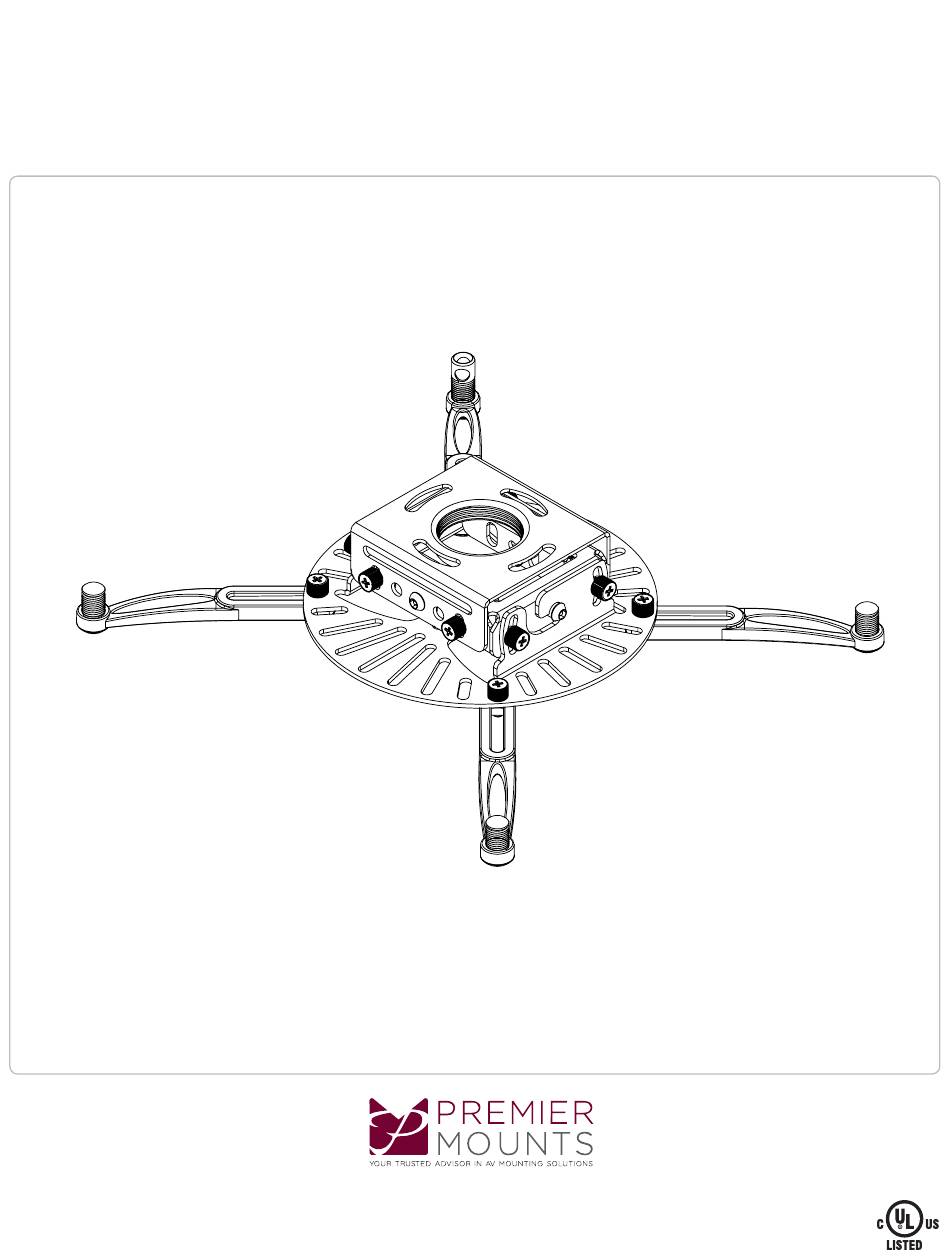

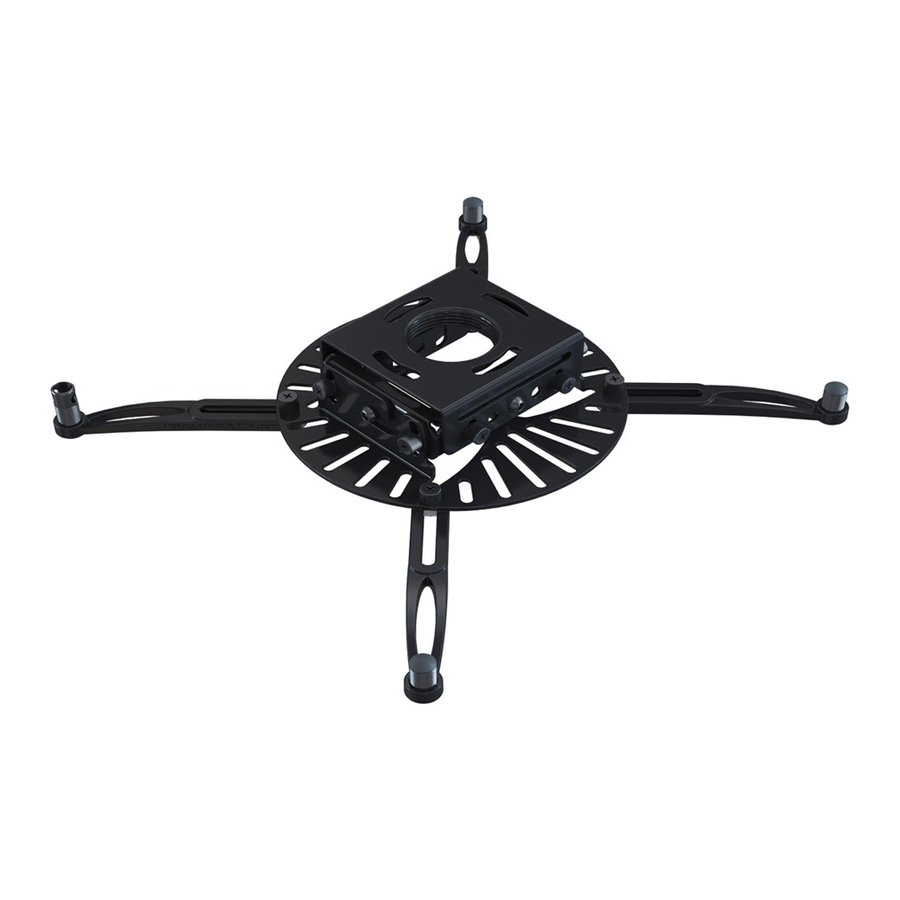

- Page 1 PDS-PLUS / PDS-PLUS W Installation Guide www.mounts.com | North America 800.368.9700 | International +1-714-632-7100 1321 S. State College Blvd., Fullerton, CA 92831 USA...
- Page 2 LES SUPPORTS PREMIER MOUNTS NE GARANTISSENT PAS CONTRE LES DOMMAGES CAUSÉS PAR L’USAGE DU PRODUIT DE MONTAGE PREMIER MOUNTS À D’AUTRES FINS QUE CELLES POUR LESQUELLES IL A ÉTÉ CONÇU OU DES DOMMAGES CAUSÉS PAR DES ACCESSOIRES OU DES MODIFICATIONS NON AUTORISÉS, ET NOUS NE POUVONS PAS ÊTRE TENUS RESPONSABLES DES DOMMAGES, PLAINTES, RÉCLAMATIONS, POURSUITES, ACTIONS OU CAUSES D’ACTION DE N’IMPORTE...
- Page 3 Optional Mounting Configurations This section contains different configurations, if applicable, that the PDS-PLUS/PDS-PLUS-W can be used with. The CLS adapter will be used in conjunction with the PP-FCTA and PP-FCMA. Please refer to the installation instructions that come packaged with the following products.
-
Page 4: Ceiling Installation - Pipe
Identify the center of the ceiling stud. Use a pencil to mark the location of the ceiling stud center. The PDS-PLUS/PDS-PLUS-W may be attached to 1-1/2” standard threaded pipe (NPT), to one of Premier Mount’s optional ceiling adapters, or to a single wood stud. If using an optional adapter, please refer to the installation instructions that come with adapters. - Page 5 PDS-PLUS / PDS-PLUS-W Installation Guide Separate the Upper Bridge from the base box by removing M6 x 8mm the four (4) M6 x 12 mm Knurl Knobs and two (2) security Set Screw head screws (three total on each side).
-
Page 6: Ceiling Installation - Solid Surface
Installation Guide Ceiling Installation - Solid Surface The PDS-PLUS/PDS-PLUS-W can be mounted to a ceiling with a minimum 6” thickness. Use (4) Premier Mounts (Part # 0186-073-275-61) Use a 5/16” masonry bit to pre-drill the mounting holes in the solid surface. -
Page 7: Selecting The Mounting Hardware
? Small Straw Depth Plus 1/8” Allowance Small Straw Depth Plus 1/8” Allowance The PDS-PLUS/PDS-PLUS-W comes with the option of using Lock-It™ Security Screws. To or Toothpick or Toothpick Mark Mark use the security screws, simply replace the M6 x 12mm Phillips Pan head screws with the M6 x 12mm security screws. - Page 8 PDS-PLUS / PDS-PLUS-W Installation Guide Only attach to the projector manufacturer’s specified mounting points on the projector chassis with a minimum three mounting legs. Please follow all safety instructions specified by the projector manufacturer as well as the safety instructions outlined in this manual.
- Page 9 Carefully adjust your grip on the projector until it seems balanced from side-to-side. Mentally note the apparent center of gravity. Place the PDS-PLUS/PDS-PLUS-W Projector Plate (if not already attached) on top of the mounting legs with the center of the plate as close as possible to the projector’s center of gravity.
- Page 10 PDS-PLUS / PLUS PLUS-W Installation Guide Attach the Projector Plate (if not already attached) to each of the mounting legs by inserting and tightening one (1) Knurl knob through the Projector Plate into the M6 square nut on each of the mounting legs.
-
Page 11: Base Box Adjustment
PDS-PLUS / PDS-PLUS-W Installation Guide Raise the projector (with the mounting bracket attached) and hook the projector bracket over the hinge pins. Make sure the bracket is resting on the Base Box before letting go of the projector. Insert the four (4) adjustment knurl knobs, two (2) per side. -
Page 12: Securing The Pds-Plus / Pds-Plus-W Projector Mount
Securing the PDS-PLUS / PDS-PLUS-W Projector Mount Your PDS-PLUS/PDS-PLUS-W Projector Mount includes one (1) Security Leveling Barrel which can provide additional theft deterrence for your projector. Shown below are two examples of how you can use the security leveling barrel to make your projector installation more secure: the PCB-CSL1 Security Cable (sold separately) or padlock (combination or keyed;... - Page 13 This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Premier Mounts intends to make this manual accurate and complete. However, Premier Mounts makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product.
