CREATING POSITIVE CUSTOMER EXPERIENCES
INSTALLATION INSTRUCTIONS
PDS-PLUS

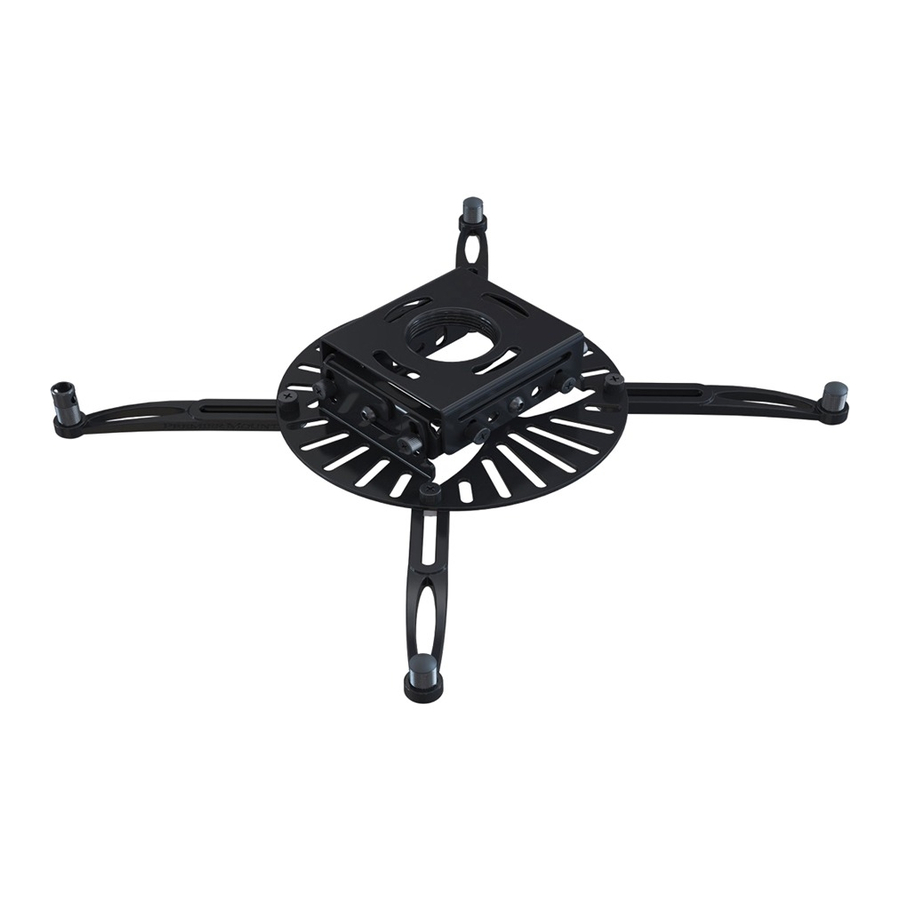

Universal Projector Mount
Model: PDS-PLUS/PDS-PLUS-W
NORTH AMERICA
EUROPE
1321 S. State College Boulevard
Unit 3, The Moorings Business Park
Fullerton, CA 92831 USA
Channel Way, Longford
USA and Canada
Conventry, CV6 6RH,
Phone: 1.800.368.9700
Fax: 1.800.832.4888
Phone: +44 (0) 2476 644105
Other Locations
Fax: +44 (0) 2476 644165
Phone: (001).714.632.7100
Fax: (001).714.632.1044
9530-009-011-0K
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Premier Mounts PDS-PLUS
Summary of Contents for Premier Mounts PDS-PLUS
-
Page 1: Installation Instructions
CREATING POSITIVE CUSTOMER EXPERIENCES INSTALLATION INSTRUCTIONS PDS-PLUS Universal Projector Mount Model: PDS-PLUS/PDS-PLUS-W NORTH AMERICA EUROPE 1321 S. State College Boulevard Unit 3, The Moorings Business Park Fullerton, CA 92831 USA Channel Way, Longford USA and Canada Conventry, CV6 6RH, Phone: 1.800.368.9700 Fax: 1.800.832.4888... -
Page 2: Table Of Contents
PROPER SAFETY EQUIPMENT AND TOOLS FOR THE ASSEMBLY PROCEDURE TO PREVENT PERSONAL INJURY. PREMIER MOUNTS DOES NOT WARRANT AGAINST DAMAGE CAUSED BY THE USE OF ANY PREMIER MOUNTS PRODUCT FOR PURPOSES OTHER THAN THOSE FOR WHICH IT WAS DESIGNED OR DAMAGE CAUSED BY... -
Page 3: Installation Tools
⅛˝ Wood Drill Bit Tape Measure Parts List Make sure your Premier Mounts product has the following hardware and components before beginning installation. If there are parts missing and/or damaged, stop the installation and call Premier Mounts at (800) 368-9700. PDS-PLUS/PDS-PLUS-W Mount Hardware #14 x 2˝... -
Page 4: Features
Congratulations on the purchase of your new Premier Mounts PDS-PLUS/PDS-PLUS-W Versatile Projector Mount. The PDS-PLUS works together with our exciting new PDS Base Box. The PDS-PLUS/PDS-PLUS-W has multiple mounting configurations to fit a variety of projectors. The PDS-PLUS/PDS-PLUS-W is truly the most VERSATILE projector mount on the market today. -
Page 5: Introduction
PDS-PLUS/PDS-PLUS-W Introduction Your PDS-PLUS/PDS-PLUS-W mount may be secured to either a single ceiling stud or a solid surface ceiling, such as concrete. Please read these installation instructions once thoroughly before attempting to install your Premier Mounts product. Please take a minute to familiarize yourself with the contents of the package and make sure you have all the parts and tools you need to safely complete the installation. -
Page 6: Installing The Pds-Plus/Pds-Plus-W
PDS-PLUS/PDS-PLUS-W Installing the PDS-PLUS/PDS-PLUS-W Unpack the PDS-PLUS/PDS-PLUS-W Mount and familiarize yourself with the components. Please take time before you install the PDS-PLUS/PDS-PLUS-W to determine the location of where the PDS-PLUS/PDS-PLUS-W will be mounted. Ceiling Installation - Pipe Step 1 1) After the pipe has been properly secured to the ceiling structure, thread the base box to the lower portion of the pipe. - Page 7 1) Attach the base box to the upper bridge and secure with the four (4) M6 x 12mm knurl knobs and two (2) security head screws (above). DO NOT OVERTIGHTEN THESE SCREWS AT THIS TIME. Knurl Knob Installation Instructions Page 7 Visit the Premier Mounts website at http://www.mounts.com...
-
Page 8: Ceiling Installation - Solid Surface
PDS-PLUS/PDS-PLUS-W Ceiling Installation - Solid Surface The PDS-PLUS/PDS-PLUS-W can be mounted to a ceiling with a minimum 6” thickness. Concrete wedge anchors must be used for concrete installation. It is recommended that ¼” wedge anchors be used. A concrete bit must be used to drill the pilot hole. -
Page 9: Attaching The Projector Plate
Small Straw or Toothpick Does your projector have multiple mounting points or a single mounting point? The PDS-PLUS/PDS-PLUS-W comes with the option of using Lock-It™ Security Screws. To use the security screws, simply replace the M6 x 12mm Phillips Pan head screws with the M6 x 12mm security screws. - Page 10 (5) M3 flat washers inside the leveling barrel. Avoid stacking too many M3 washers; the mounting hardware must thread into the projector mount point at least four (4) complete turns. Page 10 Installation Instructions Visit the Premier Mounts website at http://www.mounts.com...
- Page 11 Mentally note the apparent center of gravity. 3) Place the PDS-PLUS/PDS-PLUS-W Projector Plate (if not already attached) on top of the mounting legs with the center of the plate as close as possible to the projector’s center of gravity.
-
Page 12: Single Mounting Point Installation
2) Place the projector plate over the mounting point. 3) Insert the ¼-20 x ” security screw. Do not overtighten the ¼-20 x screw. ″ Proceed to the “Attaching the PDS-PLUS/PDS-PLUS-W Base” section. Page 12 Installation Instructions Visit the Premier Mounts website at http://www.mounts.com... -
Page 13: Attaching The Pds-Plus/Pds-Plus-W Base
4) Set the desired tilt and then tighten the screws, making any final adjustments prior to tightening the last two screws. 5) Once all adjustments have been made, tighten all hardware. Installation Instructions Page 13 Visit the Premier Mounts website at http://www.mounts.com... -
Page 14: Securing The Pds-Plus/Pds-Plus-W Projector Mount
PDS-PLUS/PDS-PLUS-W Securing the PDS-PLUS/PDS-PLUS-W Projector Mount Your PDS-PLUS/PDS-PLUS-W Projector Mount includes one (1) Security Leveling Barrel which can provide additional theft deterrence for your projector. Shown below are two examples of how you can use the security leveling barrel to make your projector installation more secure: the PCB-CSL1 Security Cable (sold separately) or padlock (combination or keyed;... -
Page 15: Technical Specifications
281.72 Ø2 .80 71.12 1.5" NPT PIPE THREADS 4.38 Ø3 .25 111.25 82.55 4.38 111.25 Ø7 .50 5.13 Ø. 30 190.50 130.30 3.75 7.63 4.00 95.25 101.60 2.80 71.11 Installation Instructions Page 15 Visit the Premier Mounts website at http://www.mounts.com... -
Page 16: Warranty
What Premier Mounts Will Do At the sole option of Premier Mounts, Premier Mounts will repair or replace any product or product part that is defective. If Premier Mounts chooses to replace a defective product or part, a replacement product or part will be shipped to you at no charge, but you must pay any labor costs.
