Premier Mounts PCM-MS2 Installation Manual

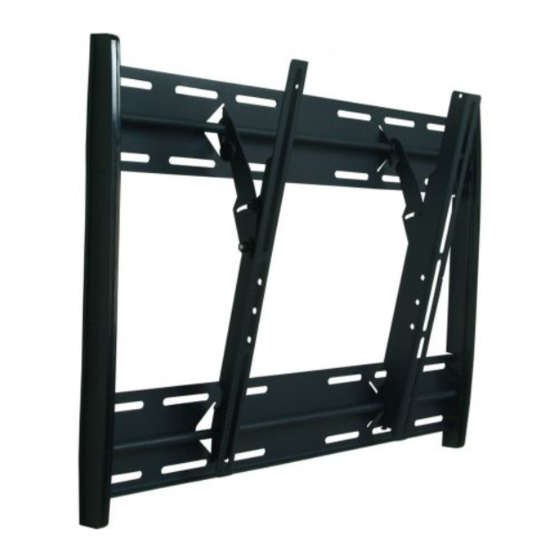

Universal flat-panel mount
Hide thumbs Also See for PCM-MS2:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction and Installation Manual

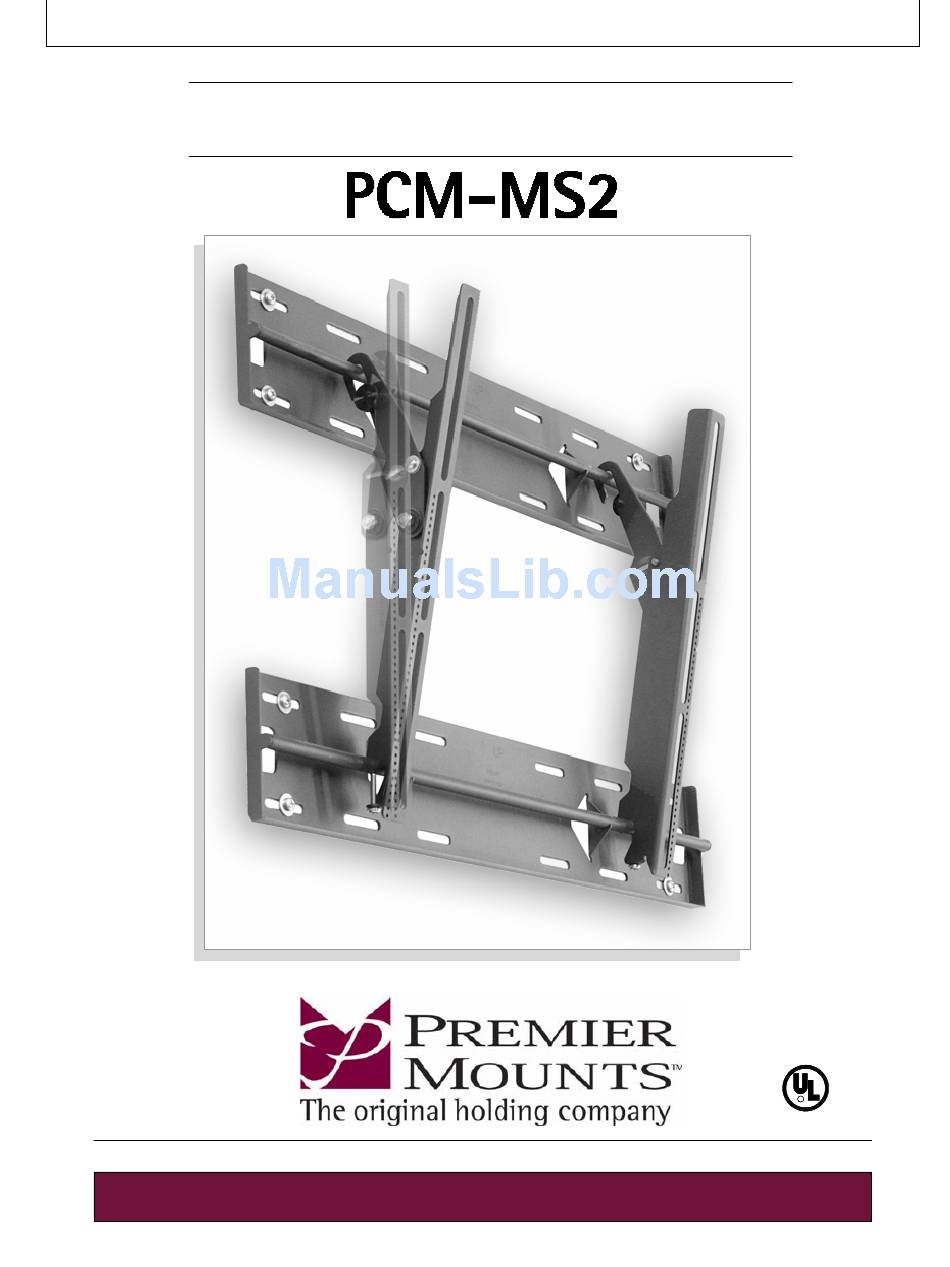

I N S T A L L A T I O N
M A N U A L
Universal flat-panel mount
R
LISTED
E176225
3130 E. Miraloma Ave. Anaheim, CA 92806 Phone: 800 368-9700 Fax: 800 832-4888
www.mounts.com
PREMIER MOUNTS ©2004/ REV 02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCM-MS2 and is the answer not in the manual?

Questions and answers

Related Manuals for Premier Mounts PCM-MS2

Summary of Contents for Premier Mounts PCM-MS2

  • Page 1 I N S T A L L A T I O N M A N U A L Universal flat-panel mount LISTED E176225 3130 E. Miraloma Ave. Anaheim, CA 92806 Phone: 800 368-9700 Fax: 800 832-4888 www.mounts.com PREMIER MOUNTS ©2004/ REV 02...

  • Page 2: Table Of Contents

    Keep these installation instructions in an easily accessible location for future reference. Indicates that the power plug is to be disconnected from Contact Premier Mounts for any questions the power outlet. Safety precautions must be taken at all times.

  • Page 3: Assembly Drawing

    Assembly drawing Dimensions are in Inches and ( 28.000 (171.2) 16.000 1.245 (406.4) (31.75) 5.000 (127) 21.000 19.000 12.000 10.500 (533.4) (482.6) (304.8) (266.7) 5.000 (127) 16.000 (406.4) 16.000 (406.4) 16.000 (406.4) 24.290 (616.97) Description 2.331 A. Wall plates (59.21) B.

  • Page 4: Flat Panel List

    Flat panel list Acer Eizo Idex PDP7859: M6 x 20 5420T: M8 x 30 PDM4260: M4 x 16 Akai Electrograph Ikegami CTA42AR7A, PDP4247, PDP4290, PDP4294, PDP5090, HPT500AN: M8 x 25 – ½” nylon spacers - DTS42W: M8 x 30 – ¼” nylon spacers (large) PTM4202: M5 x 20 DTS4230: M8 x 30 –...
  • Page 5 Mitsubishi Princeton Graphics Tatung PD5010HD, PD5030: M4 x 16 AR3.4FTW,AR4.6PDP: M6 x 20 P46T: M6 x 20 Monivision Rainbow Toshiba PWV46AC, PD46W00: M6 x 20 Spectrum 3750: M6 x 20 42HP82: M4 X 16 PD42W, PD42W1: M8 X 30 – ½ ” nylon spacers (large) - sleeves 50HP81: M8 X 30 –...

  • Page 6: Parts List

    NOTE: This wall mount is shipped with all proper installation hardware and components. Make sure that none of these parts are missing before beginning installation. If there are parts missing stop the installation and contact Premier Mounts. Actual screw size...
  • Page 7 Parts list (con’t) Nylon spacers and flat washers actual size NOTE: The nylon spacers may be staked to achieve proper spacing. 9/16" Nylon spacers 1/4" Nylon spacers (large) (Qty 6) (Qty 6) 1/2" Nylon spacers Nylon sleeves (large) (Qty 4) (Qty 12) 5/16"...
  • Page 8 Checking the thread depth on your flat panel Insert the thread depth indicator (supplied) through the thread inserts Figure 1 found on the back of the flat panel to make sure the inserts measure the same full depth and mark it. (see figure 1) Locate the correct diameter screw for the...
  • Page 9 Parts list (con’t) All of these parts are used to install the mounting bracket. Make sure that none of these parts are missing before beginning installation. If there are parts missing stop the installation and contact Premier Mounts. Level (1) Griplates™...
  • Page 10 Finding center of the flat panel display WARNING : Proper installation procedure by qualified personnel as outlined in the installation instructions must be adhered to. Failure to do so could result in serious personal injury and possible damage to the flat panel. WARNING! INVERT THE FLAT PANEL PLACE IT ON A SOFT, FLAT SUFRACE TO PREVENT DAMAGE TO THE FLAT PANEL.

  • Page 11: Positioning The Mounting Brackets

    Positioning the mounting brackets CAUTION: Check the chart on page 4 and 5 to see if Nylon spacers if your flat panel needs nylon spacers. The nylon spacers Applicable provided, must be used. Failure to do so will result in (see chart) on page 4 and 5 damaging the flat panel.
  • Page 12 Match the center of viewing guide with the center line you marked in step 1. See figure 5. Bottom of flat panel Align the mounting brackets Mounting bracket The mounting brackets are designed with a center of viewing guide on the side of them. See figure 6.

  • Page 13: Securing The Mounting Brackets

    Securing the mounting brackets The Griplates™ have M4, M5 M6 and M8 hole DIMPLES patterns to fit the hardware that your flat panel requires. EXAMPLE: If your plasma uses M8 x 20 Phillip screws. Use the M8 mounting points. See figure 7 Pre install two (2) M6 x 30 (mm) Phillip pan screws to the bottom of the left and right hand side mounting brackets.

  • Page 14: Finding The Wood Stud Behind The Wall Structure

    Finding the wood studs behind the wall structure Using a (commercially available) wood stud finder, Wood stud finder locate the 16" or 24" stud centers behind the wall. (commercially available) Once found, make a pencil marking on the center of the wood studs.

  • Page 15: Marking The Bottom Plate Mounting Points

    Marking the bottom plate mounting points Place the upper portion of the bottom wall plate to the reference line and mark the four (4) lag bolt mounting points through the wall plate slots on the wall. Level the wall plate with the reference arrow pointing up to the ceiling.

  • Page 16: Securing The Bottom Wall Plate

    Securing the bottom wall plate Level Level and secure the plate to the wall with the reference arrow facing up to the ceiling. Secure the plate using the four (4) 5/16" lag bolts and flat washers (supplied). See figure CAUTION: Do not over tighten the lag bolts. Wall plate (4) 5/16"...

  • Page 17: Securing The Top Plate

    Securing the top plate Drill four (4) ¼" pilot holes to the marked wall. See figure 15. Wall marks Wall plate - 17 -...
  • Page 18 Level and secure the plate to the wall with the reference arrow facing up to the ceiling. Secure the plate using the four (4) 5/16" lag bolts and flat washers (supplied). See figure 16 CAUTION: Do not over tighten the lag bolts. NOTE: CHECK THE MOUNT FOR PROPER TIGHTNESS AND SECURITY.

  • Page 19: Securing The Flat Panel To The Wall Mount

    Securing the flat panel to the wall mount WARNING: AT LEAST (2) QUALIFIED PERSONNEL ARE STRONGLY RECOMMENDED FOR INSTALLATION OF THIS PRODUCT. FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY AND POSSIBLE DAMAGE TO THE FLAT PANEL. Raise the flat panel with the LEFT and RIGHT mounting brackets secured to the flat panel and insert the top and bottom hooks from each bracket to the rods from the wall plates.
  • Page 20 Make any lateral shift adjustment and lock it by tightening the two (2) M6 x 30 (mm) Phillips screws found on the bottom of the mounting brackets. CAUTION: Do not over tighten the M6 screws to the rods. See figure 18 Lateral shift M6 x 30 Lateral shift screw...

  • Page 21: Lateral Shift Adjustment

    Lateral shift adjustment Tilt the flat panel and secure the two (2) M6 x 12 (mm) safety knobs to each of the mounting brackets. See figure 19. M6 x 12 Safety knobs NOTE: To remove the display from the wall simply extend the display to its maximum tilt range, remove the two 6 (mm) safety knurl knobs push the flat panel back to it’s flat position loosen or remove the two (2) M6 x 30 lateral shift screws and lift the unit of the wall.
  • Page 22 USA and Canada – Shilton, Coventry, England CV79JY Gunma-ken 370-3107, Japan Phone: 800-368-9700 Phone: +44 (0) 2476 614700 Phone: 81.27.371.6998 Fax: 800-832-4888 Fax: +44 (0) 2476 614710 Fax: 81.27.371.6308 Other Locations – Phone: 001.714.632.7100; Fax: 001.714.632.1044 ©Premier Mounts 2004 - 22 -...
