MOUNTING INSTRUCTIONS
WALL MOUNTING UNIT FOR PLASMA MODELS
MODEL
PCM-S3250
(Horizontal mount)
We recommend that you first thoroughly read this manual to familiarize
yourself with the use of this unit as well as proper installation and safety
precautions. Retain this manual in an easily accessible location for future
reference.
Features`
• Adaptable to be used for PFM-32C1/PFM-42B2/PFM-50C1
Plasma models.
• 16" or 24" stud mounting points
• Easy installation
• Flat to 10° tilt (no tool required)
• Lateral movement from center for better viewing position
Consult authorized service personnel for the
installation of this unit. Instructions must be followed
precisely for safe and stable installation. We are not
liable for any damage or injury caused by
mishandling or improper installation.
MOUNTING POINTS FOR PLASMA MODELS
PFM-32C1 / PFM-42B2 / PFM-50C1

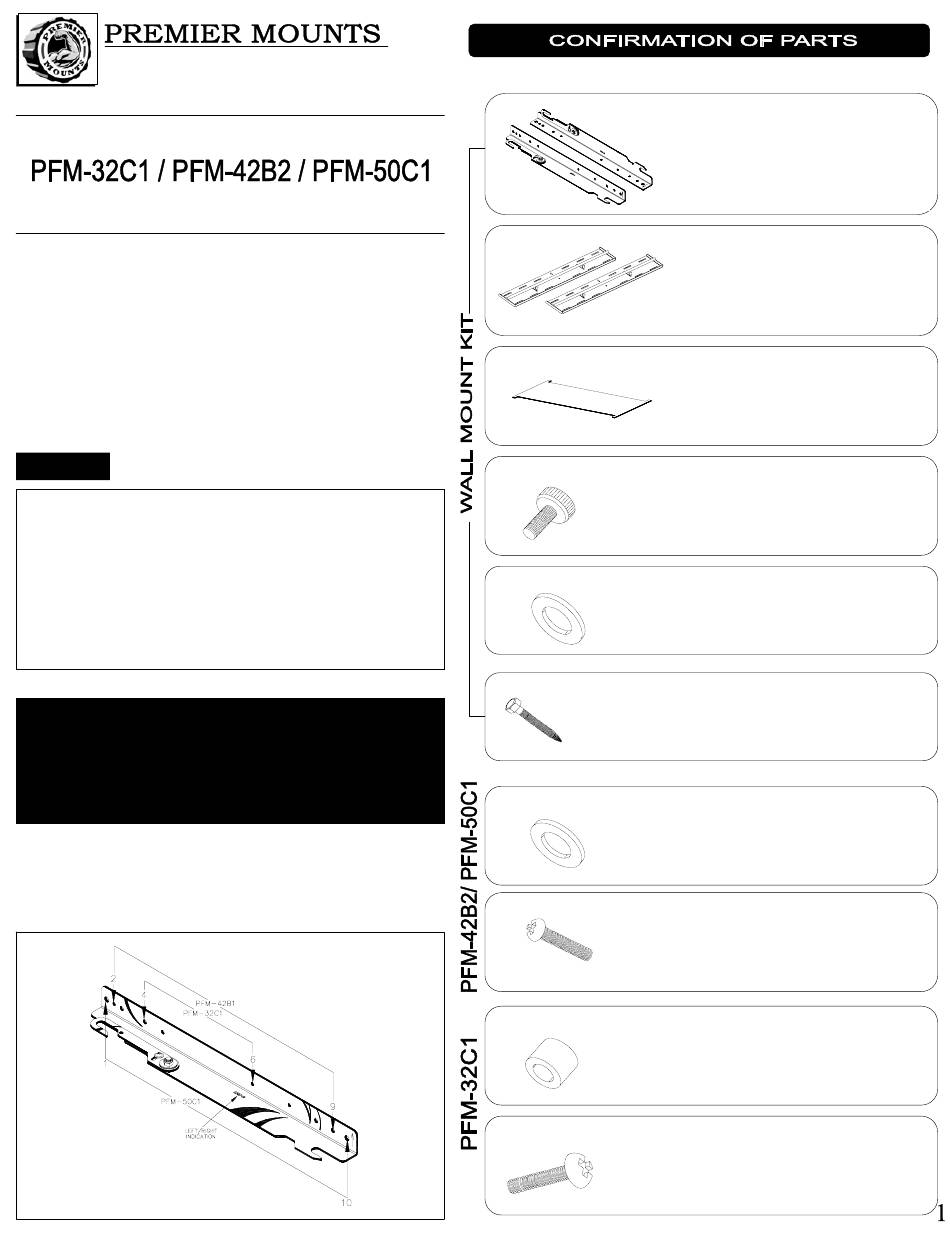

• Check for missing parts after opening.
(A) Left and right mounting arms for the
PFM-32", 42, 50" plasma displays...1pc (left) 1pc
(right). (Note: Mounting points for the plasmas
differ. Please see diagram for mounting point
specifications).
(B) Mount wall brackets...2 pc.
(C) Cardboard template for 9" accurate
separation of the wall brackets...1pc.
(D) 6 mm x 12 mm Safety knobs ...2 pc.
(E) 5/16" Flat washers ...8 pc.
(Note: used with the 5/16" Lag bolts)
(F) 5/16" Lag bolts to secure wall brackets...8 pc.
(Note: Used with the 5/16" Flat washers)
(G) 5/16" Flat washer...4 pc.
(H) 6 mm x 12 mm Phillip screws...4 pc.
(I) M5 Nylon spacers...4 pc.
(J) 5 mm x 20mm Phillip screws...4 pc.
