Premier Mounts PSD-TTS-B Installation Manual
Tabletop stand
Hide thumbs
Also See for PSD-TTS-B:
- Installation instructions manual (14 pages) ,
- Installation manual (10 pages)
Subscribe to Our Youtube Channel
Related Manuals for Premier Mounts PSD-TTS-B
Summary of Contents for Premier Mounts PSD-TTS-B

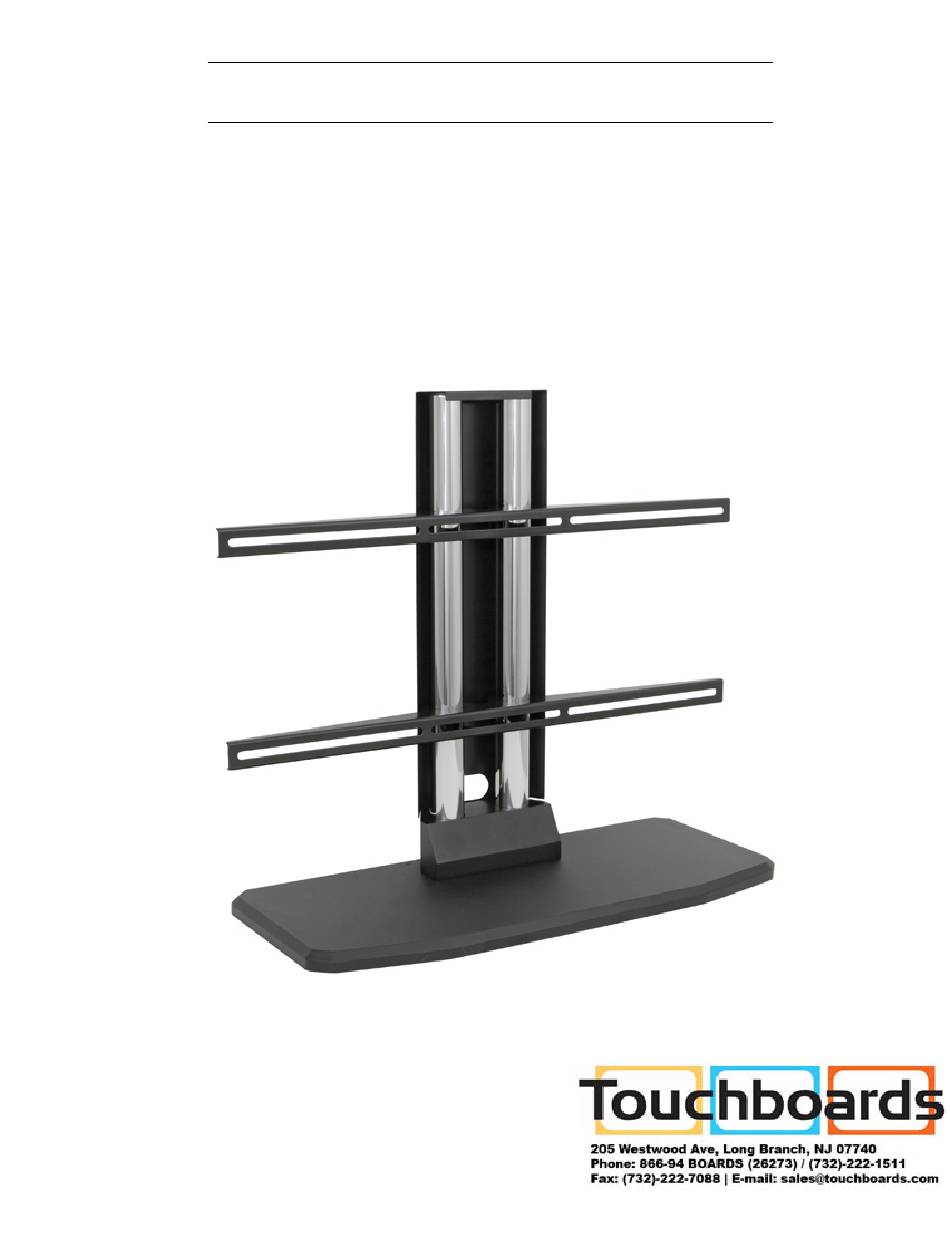

- Page 1 INSTALLATION MANUAL TABLETOP STAND PSD-TTS-B 1321 S State College Blvd. Fullerton, CA 92831 Phone: 800 368-9700 Fax: 800 832-4888 9532-002-001-11 PSD-TTS-B Installation Guide...
-
Page 2: Safety And Precautions
At least two qualified people should always perform the installation work. Injury and damage can result from dropping or mishandling the flat panel display. 9532-002-001-11 PSD-TTS-B Installation Guide... - Page 3 27.746 (704.7) Ø1.500 1.500 (38.1) (38.1) 1.000 (25.4) PART#: 30.00 PSD-TTS-B (762) COLOR: Silver A. Back cover Base dimensions: 1.00”(25.4) H x 30.00”(762) W x 13.0”(330) D B. Vertical brackets C. Mounting brackets D. Griplates™ & mounting hardware E. Aluminum block F.
-
Page 4: Parts List
Parts list (1) All of these parts are used to install the mounting bracket. Make sure that none of these parts are missing before beginning installation. If there are parts missing stop the installation and contact Premier Mounts. Aluminum block (1) Griplates™... - Page 5 NOTE: This wall mount is shipped with all proper installation hardware and components. Make sure that none of these parts are missing before beginning installation. If there are parts missing stop the installation and contact Premier Mounts. 9532-002-001-11 PSD-TTS-B Installation Guide...
- Page 6 The screw length must not bypass the marking. Select another screw size (see figure 2 and 3). Until you find one that comes closest to your mark without going past. Marking Figure 3 9532-002-001-11 PSD-TTS-B Installation Guide Marking...
- Page 7 Secure the aluminum block to the base as shown in (figure 1) to the base by using the five (5) M5 x 30 (mm) Phillip flat head screws (supplied). CAUTION: Do not over tighten the screws. Find a suitable location for the stand. Aluminum block Base (5) M5 x 30 (mm) Phillips flat head screws 9532-002-001-11 PSD-TTS-B Installation Guide...
- Page 8 (2) M8 socket head screws. Do not over tighten the set screws. Install the plastic caps to the top of the tubes. See figure 2. Plastic caps Tube location for cable access Tubes 2 O’clock 10 O’clock Allen wrench (2) M8 x 10 socket head screws Base 9532-002-001-11 PSD-TTS-B Installation Guide...
- Page 9 Mounting hardware Ω (2) Mounting (see charts) on brackets page 5,6 (8) Griplates™ (supplied) NOTE: All Griplates™ tips must be facing up prior to installation. Soft and flat surface Allen key (4) M8x10 Socket head screws 9532-002-001-11 PSD-TTS-B Installation Guide...
- Page 10 PERSONNEL ARE STRONGLY RECOMMENDED FOR INSTALLATION OF THIS PRODUCT. FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY AND POSSIBLE DAMAGE TO THE FLAT PANEL. Cable routing access Back cover points (2) M5 x 10 phillips screws 9532-002-001-11 PSD-TTS-B Installation Guide...
- Page 11 If securing to a wood table, secure the stand with the two (2) #10 x 1-3/4" wood screws (supplied). NOTE: Longer or shorter wood screws and or mounting hardware depending on your installation environment are (commercially available). See figure 5. Wood screw access holes Base #10 x 1-1/4” wood screws Flat wood surface 9532-002-001-11 PSD-TTS-B Installation Guide...
