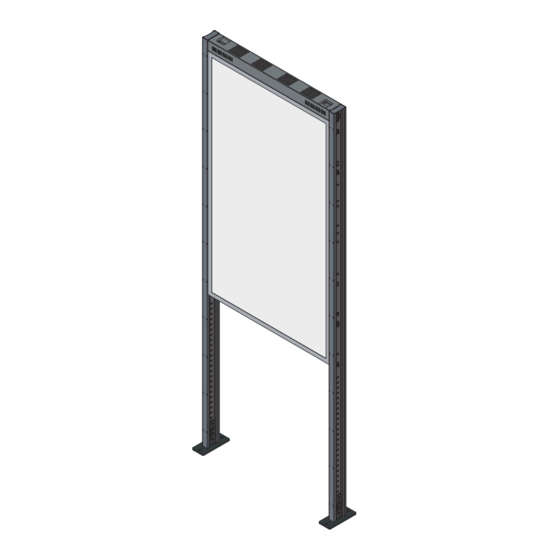

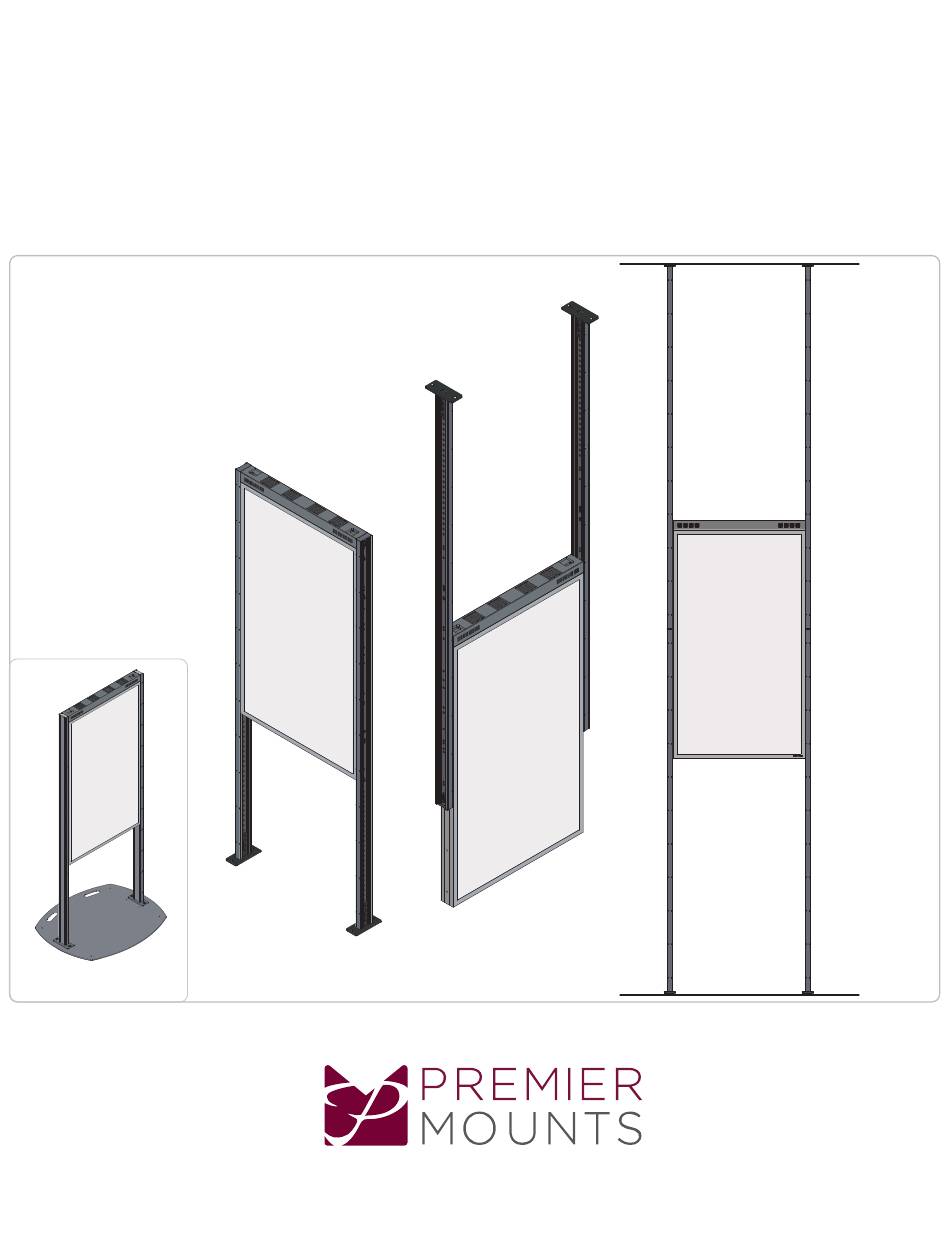

- Page 1 PFC-OMND INSTALLATION GUIDE Premier Floor Ceiling Mount For Samsung OM46N-D and OM55N-D Optional Base www.premiermounts.com | North America 800.368.9700 | International +1-714-632-7100 9500355 v1.2 2620 Palisades Drive, Corona, CA 92882 USA publ. 07/15/20...
- Page 2 PFC-OMND Installation Guide INCLUDED COMPONENTS: 2000mm Long Bar (Qty: 1 Pair) Cable Management Covers (Qty: 2 Pair) End Cap (Qty: 2) Leg (Qty: 2) Mounting Template M8 x 35mm Button M5 Allen Key (Qty: 1) Hex (Qty: 8) (Qty: 1)
- Page 3 PFC-OMND Installation Guide DETERMINE THE VIEWING HEIGHT APPLICATIONS: Viewing Height is adjustable by installing at • CEILING optional fixed mounting location. • FLOOR TO CEILING OM46N-D Y-DIM OM55N-D 59-0” [1498.4] 54-1/8” [1376.0] 64-1/8” [1628.8] 59-1/2” [1512.5] 65-7/8” [1671.8] 60-0” [1524.5] Y-DIM “A”...
- Page 4 PFC-OMND Installation Guide DETERMINE THE VIEWING HEIGHT APPLICATIONS: • FLOOR • FLOOR TO CEILING • OPTIONAL FLOOR BASE 78-7/8” [2004.1] Max Height From the top to center 23-1/8” [587.3] for OM46N-D 26-7/8” [683] for OM55N-D Viewing height is mounted at a fixed location and can...
- Page 5 PFC-OMND Installation Guide DETERMINE THE VIEWING HEIGHT APPLICATIONS: • FLOOR TO CEILING (USES X2 PFC-OMND). If power and data are routed from the ceiling, adjustable viewing height by installing at varies mounting location. See table on page 3. Cutting only to fit between the floor and ceiling.
- Page 6 PFC-OMND Installation Guide USE THE TEMPLATE FOR PRE-INSTALLATION 46” 55” 55” 46” Center Mark For mounting the template temporary in place. Use Drill Bit by application Position the template to the desired location. Mark the mounting points based of the flat-panel display sizes, either 46”...
- Page 7 PFC-OMND Installation Guide INSTALLING THE OMN-D TO THE MOUNT 1. Remove the handles (if attached on the OMN-D) before proceeding. M5 X 35 2. Carefully transport the flat-panel display to the mount and fasten using Button Hex M8 x 35mm Button Hex screws where applicable. A minimum of 4 mounting points (2 per side) must be use to safety secure the display.
-
Page 8: Ceiling Installation
PFC-OMND Installation Guide ROUTE POWER AND DATA CABLE WITHIN THE CHANNEL OF THE MOUNT. CEILING INSTALLATION Samsung OMN-D Installation Guide must be read within Route power and data along the conjuction of all step within inner side of the raceway. - Page 9 PFC-OMND Installation Guide INSTALL THE CABLE MANGEMENT COVERS 1. Cut the vinyl covers to size if applicable. 2. Make a cutout for the power cable. 3. The endcaps are removable for ease of installation. 4. Slide in or pinch and push the vinyl covers into the raceway.
- Page 10 PFC-OMND Installation Guide OPTIONAL: CUT THE BAR WITHIN RANGE Maximum Cut Length @ 23.00” [584.2mm] 1” [25.4mm] increments Minimum Cut Length USE METAL CUTTING SAW BLADE @ 1.75” [44.5mm] Page 10 www.premiermounts.com | North America 800.368.9700 | International +1-714-632-7100...
- Page 11 This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Premier Mounts intends to make this manual accurate and complete. However, Premier Mounts makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product.
