Premier Mounts PFC-OMND Installation Manual page 3

A
APPLICATIONS:
• CEILING
• FLOOR TO CEILING
CL
CL

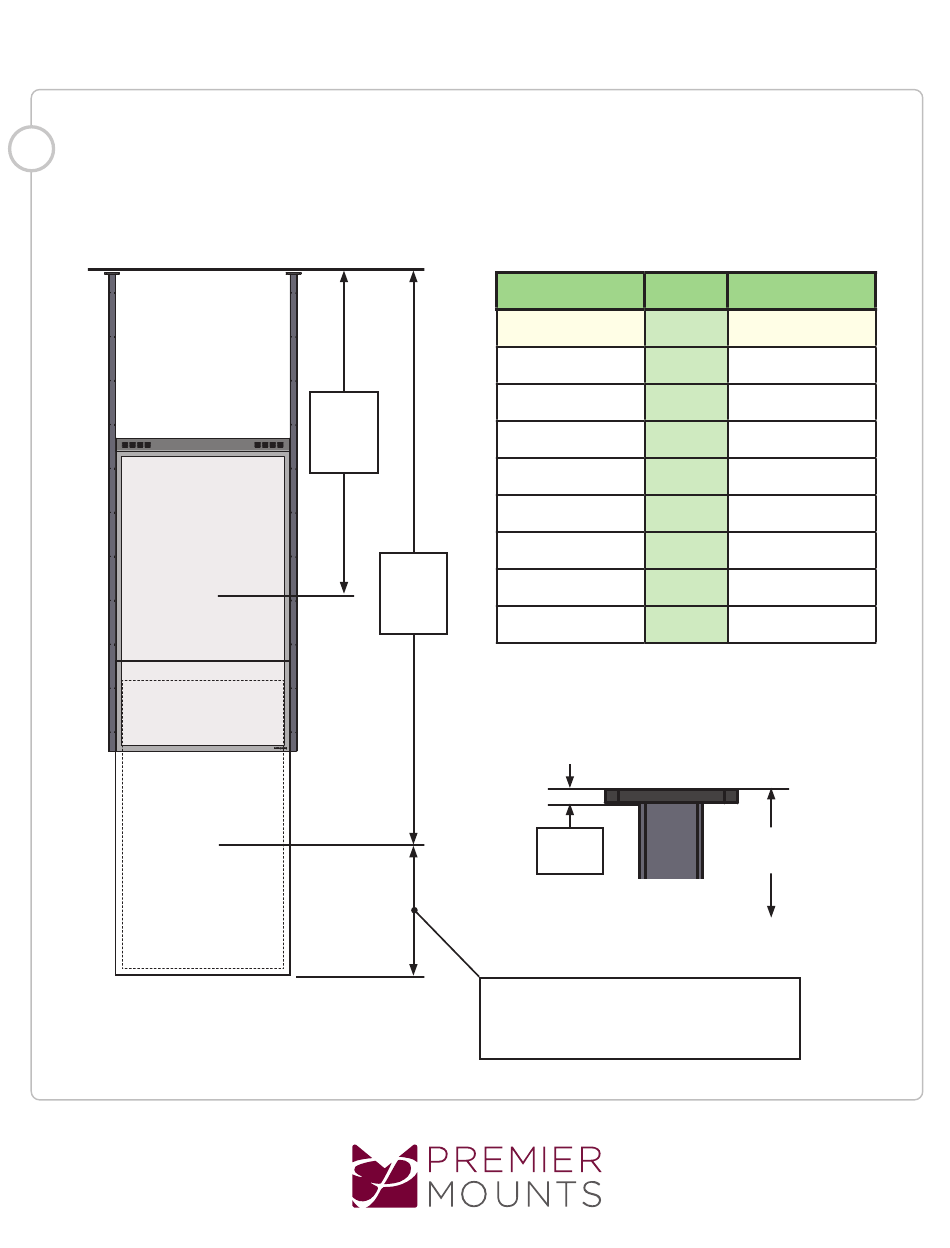

DETERMINE THE VIEWING HEIGHT
Y-DIM
"A"
(Min)
Y-DIM
"I"
(Max)
www.premiermounts.com | North America 800.368.9700 | International +1-714-632-7100
Viewing Height is adjustable by installing at
optional fixed mounting location.
OM46N-D Y-DIM
59-0" [1498.4]
64-1/8" [1628.8]
65-7/8" [1671.8]
72-0" [1828.8]
75-1/8" [1908.4]
78-7/8" [2004.2]
85-1/4" [2165.3]
85-3/4" [2177.3]
87-3/8" [2220.3]
Table shown aboved measured from bottom of
the base.
Subtract 1/4" [6.35] if using the dimension to cut
[actual length 78.65" [1997.7] ] long bar.
1/4"
[6.35]
From center to bottom edge
21" [532.1] for OM46N-D
24-3/4" [627.9] for OM55N-D
PFC-OMND
Installation Guide
OM55N-D
A
54-1/8" [1376.0]
B
59-1/2" [1512.5]
C 60-0" [1524.5]
D 61-3/4" [1567.5]
E
67-7/8" [1724.5]
F
78-7/8" [2004.2]
G
82-5/8" [2099.9]
H
89-0" [2261.0]
I
91-1/8" [2316.0]
See
Table
Page 3
