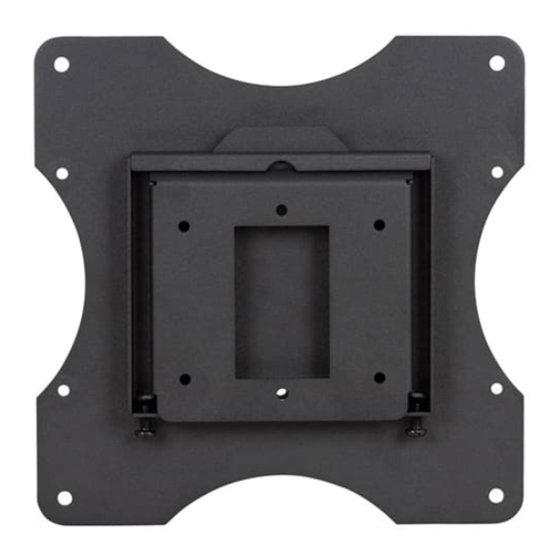

Universal ultra-flat mount
Hide thumbs Also See for PRF:
Table of Contents

Advertisement

Quick Links

Download this manual
INSTALLATION INSTRUCTIONS
Universal Ultra-Flat Mount
Model: PRF
NORTH AMERICA
EUROPE
3130 East Miraloma Avenue
Swallow House,
Anaheim, CA 92806 USA
Shilton Industrial Estate,
USA and Canada
Shilton, Coventry, England CV79JY
Phone: 1.800.368.9700
Phone: +44 (0) 2476 614700
Fax: 1.800.832.4888
Fax: +44 (0) 2476 614710
Other Locations
Phone: (001).714.632.7100
Fax: (001).714.632.1044
9531-003-001-04

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRF and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Premier Mounts PRF

Summary of Contents for Premier Mounts PRF

  • Page 1 INSTALLATION INSTRUCTIONS Universal Ultra-Flat Mount Model: PRF NORTH AMERICA EUROPE 3130 East Miraloma Avenue Swallow House, Anaheim, CA 92806 USA Shilton Industrial Estate, USA and Canada Shilton, Coventry, England CV79JY Phone: 1.800.368.9700 Phone: +44 (0) 2476 614700 Fax: 1.800.832.4888 Fax: +44 (0) 2476 614710 Other Locations Phone: (001).714.632.7100...

  • Page 2: Table Of Contents

    INSTALLATION INSTRUCTIONS IN AN EASILY ACCESSIBLE LOCATION FOR FUTURE REFERENCE. PREMIER MOUNTS DOES NOT WARRANT AGAINST DAMAGE CAUSED BY THE USE OF ANY PREMIER MOUNTS PRODUCT FOR PURPOSES OTHER THAN THOSE FOR WHICH IT WAS DESIGNED OR DAMAGE CAUSED BY...

  • Page 3: Installation Tools

    Screwdriver Parts List Your Premier Mounts product is shipped with all proper installation hardware and components. Make sure that none of these parts are missing and/or damaged before beginning installation. If there are parts missing and/or damaged, please stop the installation and contact Premier Mounts (800) 368-9700.

  • Page 4: Mounting Hardware

    Parts List (cont’d) Mounting Hardware Standard Hardware M4 x 5mm Combo Screw - Bagged Separately (Qty 4) M5 x 30mm Combo Screw (Qty 4) M4 x 10mm Combo Screw (Qty 4) M4 x 10mm Flat Head Combo M5 x 45mm Combo Screw (Qty 4) Screw (Qty 6) M4 x 16mm Flat Head Combo Screw (Qty 6)

  • Page 5: Features

    Power Access Opening Wall Plate These mounting points also act as mounting points if you decide to mount the PRF to a handibox, using the 6-32 x 1” screws. It is recommended that all electrical wiring be done by a licensed electrician.

  • Page 6: Installing The Prf Mount

    Installing the PRF Mount Introduction Thank you for purchasing Premier Mount’s Universal Ultra-Flat Mount. Please ensure that you have all the hardware listed on the front of the page. If any of the hardware described is missing, do not continue. Contact PREMIER MOUNTS Customer Service at (800) 368-9700.

  • Page 7: Solid Surface

    Installing the PRF Mount (cont’d) Step 4 Level Place the wall plate against the wall, placing the upper mounting hole over the hole that was drilled. Pilot Hole Level the wall plate and mark the lower mounting point. Wall Plate...
  • Page 8 Installing the PRF-280 Mount (cont’d) Step 2 ˝ Drill four (4) holes using a ˝ drill bit and power drill. Solid Surface ˝ Drill Bit Mounting Hole Power Drill Step 3 All electrical wiring should be done prior to mount #10 Plastic installation.

  • Page 9: Determining The Mounting Hardware

    Determining the Mounting Hardware ­ ­ Insert a small straw or toothpick into the threaded inserts found on the back of the flat panel. ® ­ Use a pencil to mark the depth of the threaded insert on the small straw or toothpick. ¯...

  • Page 10: Vesa 75/100 Installation

    VESA 75/100 Installation Step 1 If your fl at panel has a 200mm x 100mm or 200mm x 200mm mounting pattern, the VESA Adapter Plate must be used. Please refer to the M4 x 10mm Screw VESA Adapter Plate Pattern to determine the appropriate mount placement.

  • Page 11: Attaching The Ufp-280 Adapter Plate

    200mm x 100mm Mounting Pattern Installation If using a 200mm x 100mm mounting pattern to attach the PRF to your fl at panel, please use six (6) M4 Flat head screws. Using rounded combo screws for the 200mm x 100mm VESA plate may damage...

  • Page 12: Attaching The Prf To The Adapter Plate

    Flat Panel Technical Specif cations All measurements are in inches(mm). Please refer to the hardware pack that is included with the PRF to determine the correct mounting hardware for your application. NOTE: 200 x 100 VESA Pattern M4 Phillips Flat Head screws only.

  • Page 13: Warranty

    At the sole option of Premier Mounts, Premier Mounts will repair or replace any product or product part that is defective. If Premier Mounts chooses to replace a defective product or part, a replacement product or part will be shipped to you at no charge, but you must pay any labor costs.
