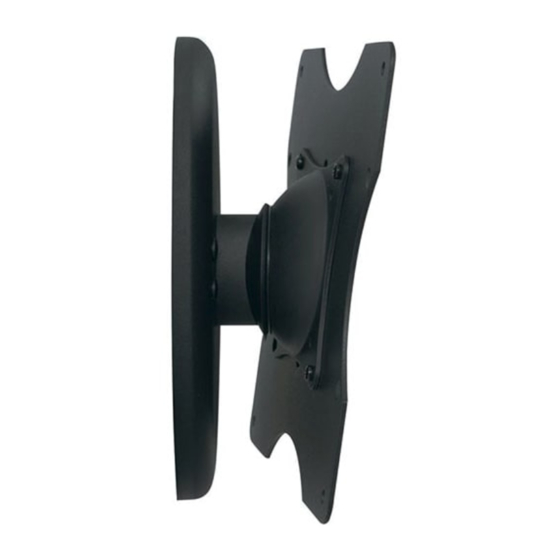

INSTALLATION INSTRUCTIONS
PTM / PTM-B
Tilt/Pivot Mount
NORTH AMERICA
EUROPE
3130 East Miraloma Avenue
Swallow House,
Anaheim, CA 92806 USA
Shilton Industrial Estate,
USA and Canada
Shilton, Coventry, England CV79JY
Phone: 1.800.368.9700
Phone: +44 (0) 2476 614700
Fax: 1.800.832.4888
Fax: +44 (0) 2476 614710
Other Locations
Phone: (001).714.632.7100
Fax: (001).714.632.1044
9531-018-011-03
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Premier Mounts PTM
Summary of Contents for Premier Mounts PTM

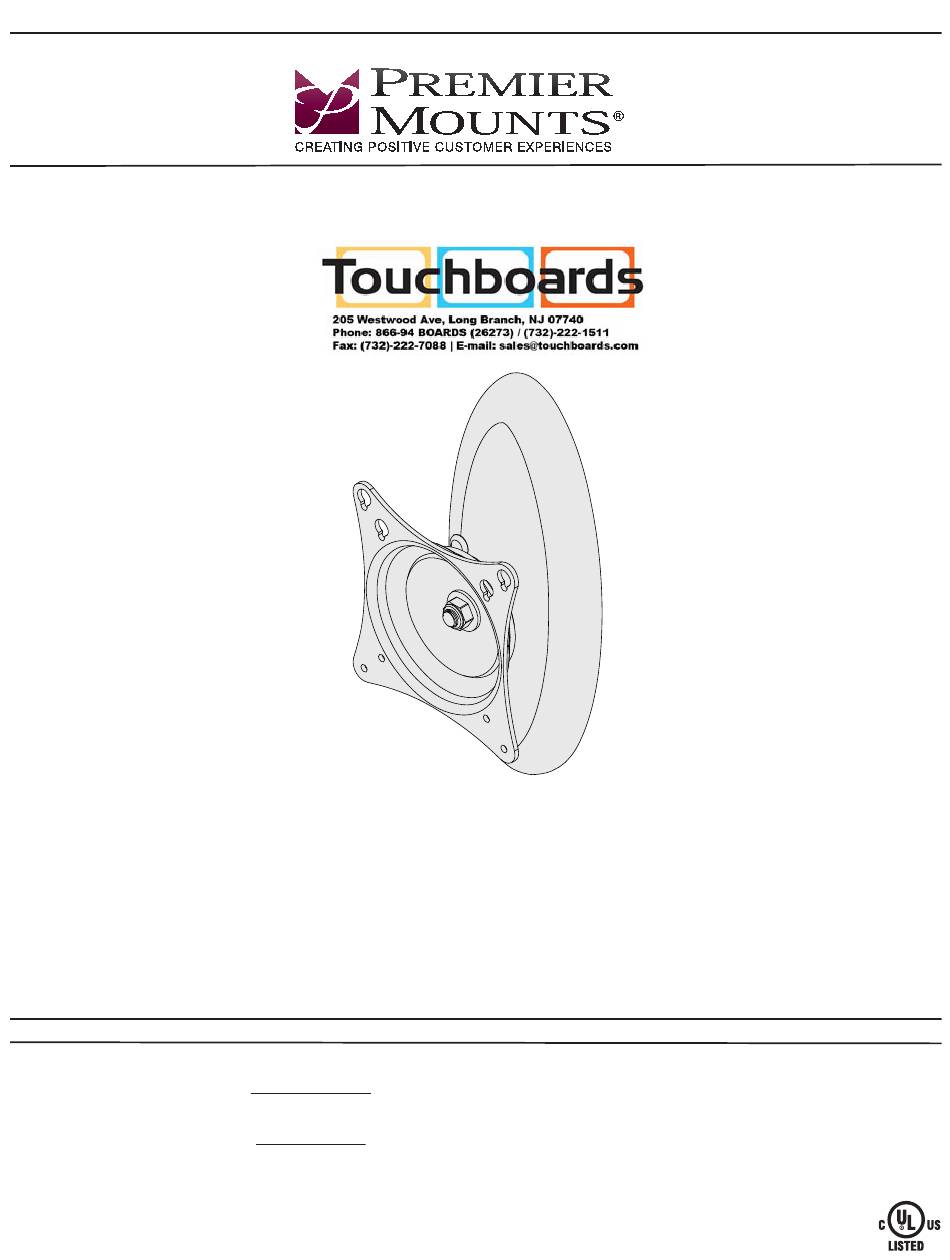

- Page 1 INSTALLATION INSTRUCTIONS PTM / PTM-B Tilt/Pivot Mount NORTH AMERICA EUROPE 3130 East Miraloma Avenue Swallow House, Anaheim, CA 92806 USA Shilton Industrial Estate, USA and Canada Shilton, Coventry, England CV79JY Phone: 1.800.368.9700 Phone: +44 (0) 2476 614700 Fax: 1.800.832.4888 Fax: +44 (0) 2476 614710 Other Locations Phone: (001).714.632.7100...
-
Page 2: Table Of Contents
SAFETY EQUIPMENT AND TOOLS FOR THE ASSEMBLY PROCEDURE TO PREVENT PERSONAL INJURY. PREMIER MOUNTS DOES NOT WARRANT AGAINST DAMAGE CAUSED BY THE USE OF ANY PREMIER MOUNTS PRODUCT FOR PURPOSES OTHER THAN THOSE FOR WHICH IT WAS DESIGNED OR DAMAGE CAUSED BY... -
Page 3: Installation Tools
** Optional tools for concrete / steel stud installations. Parts List Your Premier Mounts product is shipped with all proper installation hardware and components. Make sure that none of these parts are missing and/or damaged before beginning installation. If there are parts missing and/or damaged, please stop the installation and contact Premier Mounts (800) 368-9700. -
Page 4: Mounting Hardware
M6 x 16mm Screw M4 x 10mm Screw (Qty 4) (Qty 4) M6 x 20mm Screw (Qty 4) M6 x 30mm Screw (Qty 4) M6 x 45mm Screw (Qty 4) Page 4 Installation Instructions Visit the Premier Mounts website at http://www.mounts.com... -
Page 5: Features
Premier Mount’s uniquely designed spacers that fi t multiple screw sizes, and Versatile Mounting Points The PTM mount, in concert with work with either the PTM the UFP-280, provides mounting mount or the UFP-280 points for 75mm x 75mm VESA Adapter Plate. -
Page 6: Installing The Wall Plate
Determining the Mounting Surface If you will be installing your PTM mount to wood studs, proceed to the “Wood Stud Installation” section. If you will be installing your PTM mount to a concrete wall, proceed to the “Concrete Installation” section. -
Page 7: Concrete Installation
You will need a ″ concrete drill bit, which is available at your closest hardware store. Concrete Wedge Anchors ″ Example of Concrete Drill Bit (Not Included) Installation Instructions Page 7 Visit the Premier Mounts website at http://www.mounts.com... - Page 8 Insert a concrete wedge anchor into each hole. If necessary, lightly tap each concrete wedge anchor into place with a hammer. Remove the nuts and washers from all four (4) concrete wedge anchors. Page 8 Installation Instructions Visit the Premier Mounts website at http://www.mounts.com...
-
Page 9: Mounting Hardware
Any obstruction near the mounting point? If Yes, you must install Universal Spacers. Proceed to the “Universal Spacer Installation” section. If No, skip to the “UFP-280 Adapter Plate Installation” section. Installation Instructions Page 9 Visit the Premier Mounts website at http://www.mounts.com... -
Page 10: Universal Spacer Installation
PTM / PTM-B Mounting Hardware (cont’d) Universal Spacer Installation Premier Mounts’ Universal Spacers allow you to attach the mounting bracket to fl at panels which have recessed or uneven mounting points. Each Universal Spacer adds ¼˝ to the distance between the Adapter Plate and your fl... -
Page 11: Attaching The Flat Panel To The Mount
Lift your PTM mount up to the wall plate. Wall Plate Slide the top of the PTM mount on to the top of the wall bracket. Pivot the bottom of the PTM mount towards the wall plate until it rests against the wall. -
Page 12: Securing The Mount
Replacing the Mount Replace PTM mount by guiding the heads of the top two (2) M4 x 5mm Phillips screws through the keyhole slots. Insert two (2) M4 x 5mm Phillips screws into the bottom mounting points. -
Page 13: Technical Specifi Cations
C: 200mm x 100mm mounting points. (M4 x 10mm Phillips fl at head screws only) D: 200mm x 200mm mounting points. (If M4 screws are used, M5 washers must be used as well) Installation Instructions Page 13 Visit the Premier Mounts website at http://www.mounts.com... -
Page 14: Warranty
What Premier Mounts Will Do At the sole option of Premier Mounts, Premier Mounts will repair or replace any product or product part that is defective. If Premier Mounts chooses to replace a defective product or part, a replacement product or part will be shipped to you at no charge, but you must pay any labor costs.
