PFC-OMND
Installation Guide
B
APPLICATIONS:
• FLOOR
• FLOOR TO CEILING
• OPTIONAL FLOOR BASE
Y-DIM
See
Table
OM46N-D
55-3/8" [1416.8]
32-3/8" [832.6]
Table shown aboved measured from bottom of the base.
Subtract 1/4" [6.35] if using the dimension to cut [actual length 78.65" [1997.7] ] long bar.
Page 4

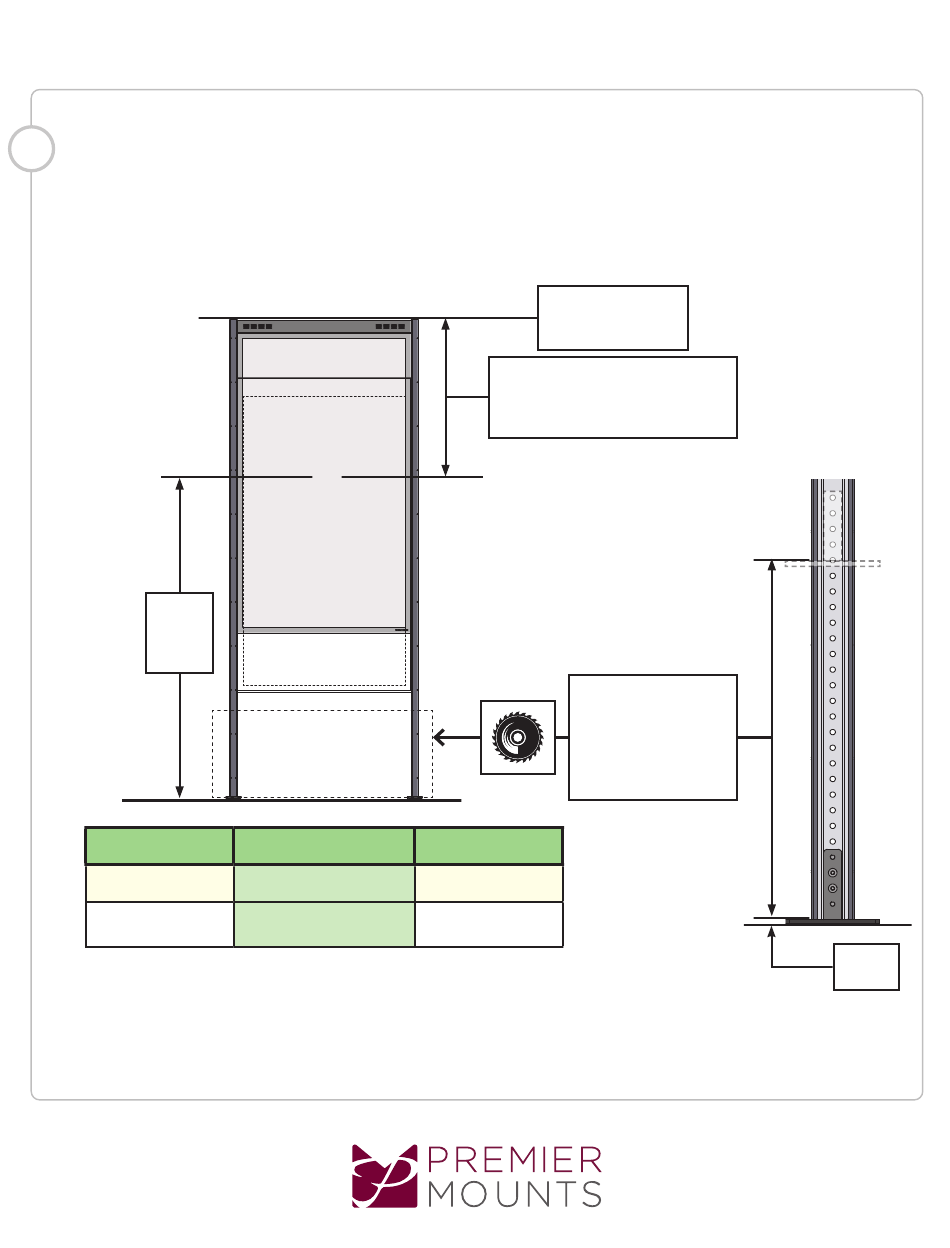

DETERMINE THE VIEWING HEIGHT
CL
Y-DIM
Standard
Cut to lowest
postion
www.premiermounts.com | North America 800.368.9700 | International +1-714-632-7100
78-7/8" [2004.1]
Max Height
From the top to center
23-1/8" [587.3] for OM46N-D
26-7/8" [683] for OM55N-D
Viewing height is mounted
at a fixed location and can
only be adjusted by cutting
the bar.
Cut Length
in 1" increment
23.0" [584.2] Max
to get to the lowest
position.
OM55N-D
52" [1321]
29" [737]
1/4"
[6.35]
