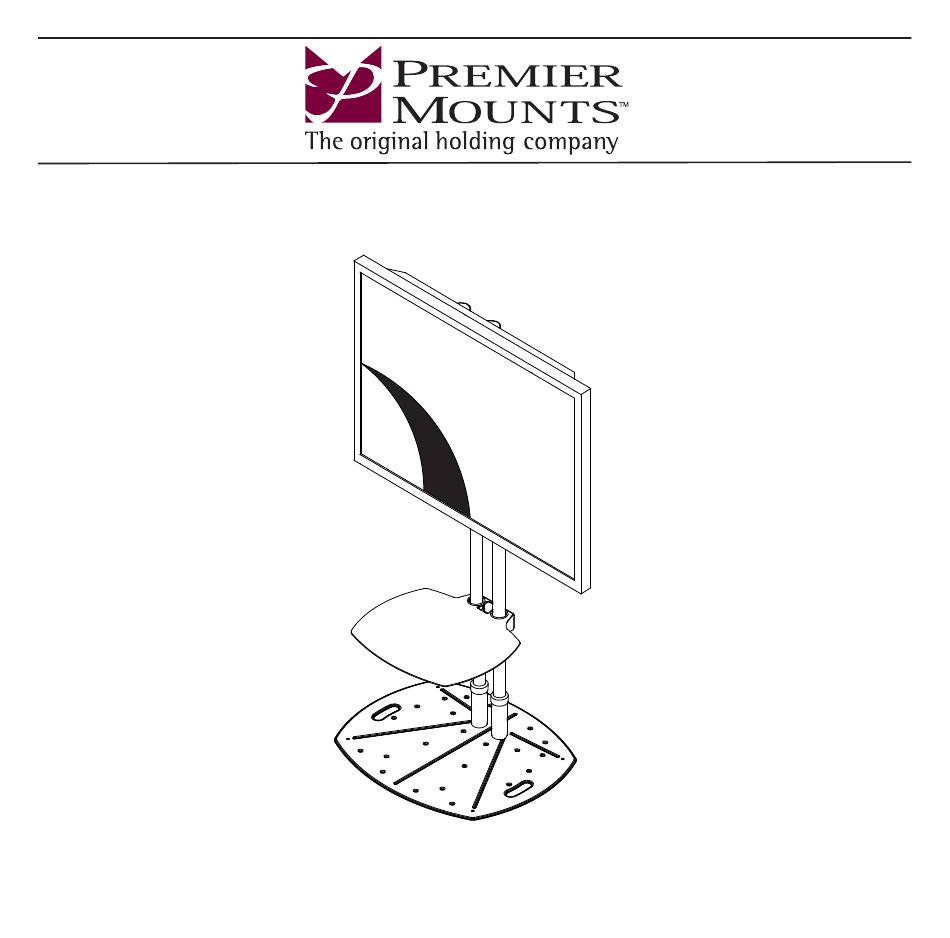

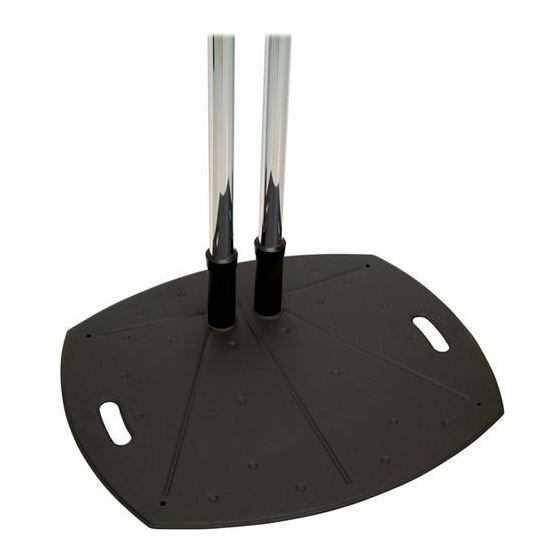

- Page 1 INSTALLATION INSTRUCTIONS PSD-TL 60” / 72” / 84” Floor Stand...
-
Page 2: Parts List
PSD-TL Parts List Congratulations on the purchase of your new Premier Mounts PSD-TL stand. This stand is shipped with all proper installation hardware and components. Make sure that none of these parts are missing and/or damaged before beginning installation. If there are parts missing and/or damaged, please stop the installation and contact Premier Mounts (800) 368-9700. - Page 3 (with PSM and RTM-L/S mounts only). The flat-panel height is adjustable to any point along the stand’s vertical support poles to achieve the perfect viewing level. The PSD-TL mates directly to our CTM, USA, UFA, RTM-L/S or PSM series of mounts.
- Page 4 PSD-TL Remove the stand out of the box and check for all proper hardware, if missing any hardware please call Premier Mounts. A mount is required to complete the PSD-TL system. Refer to the mount’s installation instructions to install the mounting bracket.
- Page 5 Bolts the PSD-SPA with the four (4) M10 x 12 bolts and flat washers (supplied). PSD-TL Base (facing forward) Step 2. Raise the flat-panel with the left and right brackets secured to the flat-panel and insert the bottom and top hooks from the mounting arms to the top and bottom rods found on the CTM back plate.
- Page 6 (facing forward) USA, UFA and RTM-L/S Installations The USA, UFA, RTM-L and RTM-S Series of stand/cart mounts attach to the PSD-TL without the use of the PSD-SPA. Please follow the installation instructions that are packaged with these mounts. Step 1. Slide the USA, UFA, RTM-L and RTM-S Series over and onto the support poles.
- Page 7 M8 x 10mm Set Screws Allen Wrench Optional Suitable Hardware Shelf (Commercially Available) PSD-TL Base (not facing forward) PSD-TL Base (facing forward) Shelf Installation Floor Installation Do not install the optional shelf higher than Step 1. If securing the base to the floor, use 39”.
- Page 8 PSD-TL Technical Specifications All measurements are in inches(mm). Installation Instructions Page 9...
