Zip HydroTap G4 Series Installation Instructions Manual page 9

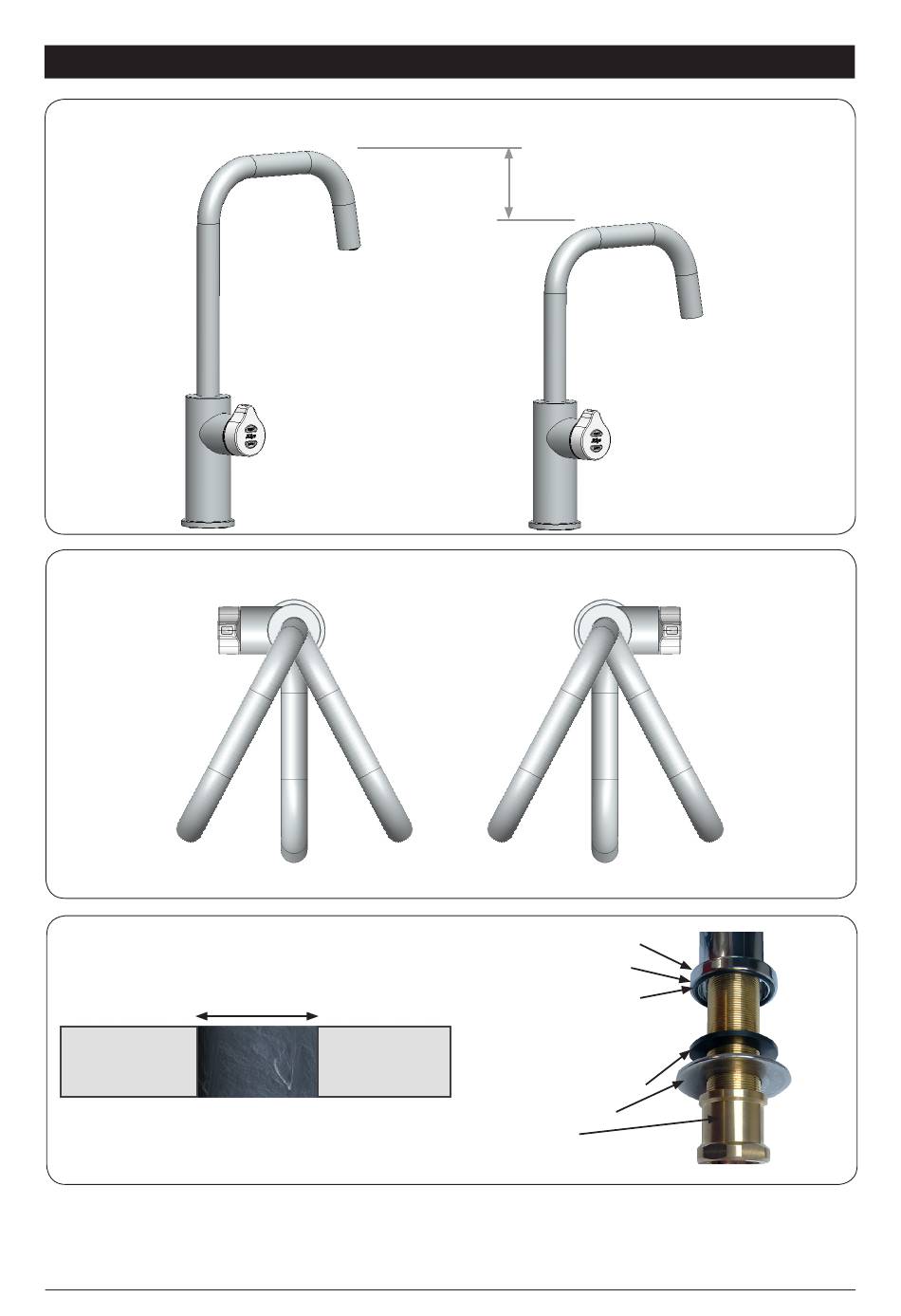

2.2 Height adjustment
2.3 Angular adjustment
Left hand control
*A
2.4 Mounting
Cut a 35mm hole in the worktop / sink.
Ø
Note Make sure the tap location will allow
the tap spout to drain into the sink.
Note Use the Tube kit fitting instructions supplied with the tap kit to connect the tap head assembly to the
Command-Centre .
TM
803341UK G4 Tap installation instructions v1.02 June 2016
Arc & Cube HydroTap
(fixed position options)
(fixed position options)
B
(See hole positioning, page 5 )
Ø35mm
G4 installation
®
50mm
C
C
Upper o-ring
Base ring
Lower o-ring
(above worktop /sink)
Lower rubber washer
Metal washer
Nut
(below worktop / sink)
Right hand control
*A
B
Page 9 of 20
