Hole positioning
Position the tap such that it dispenses into the sink bowl with ample clearance for a cup or tea pot.
Alternatively, the tap could be mounted away from the sink using a Zip Font, available as an accessory. (See
Major components and accessories, Command-Centre

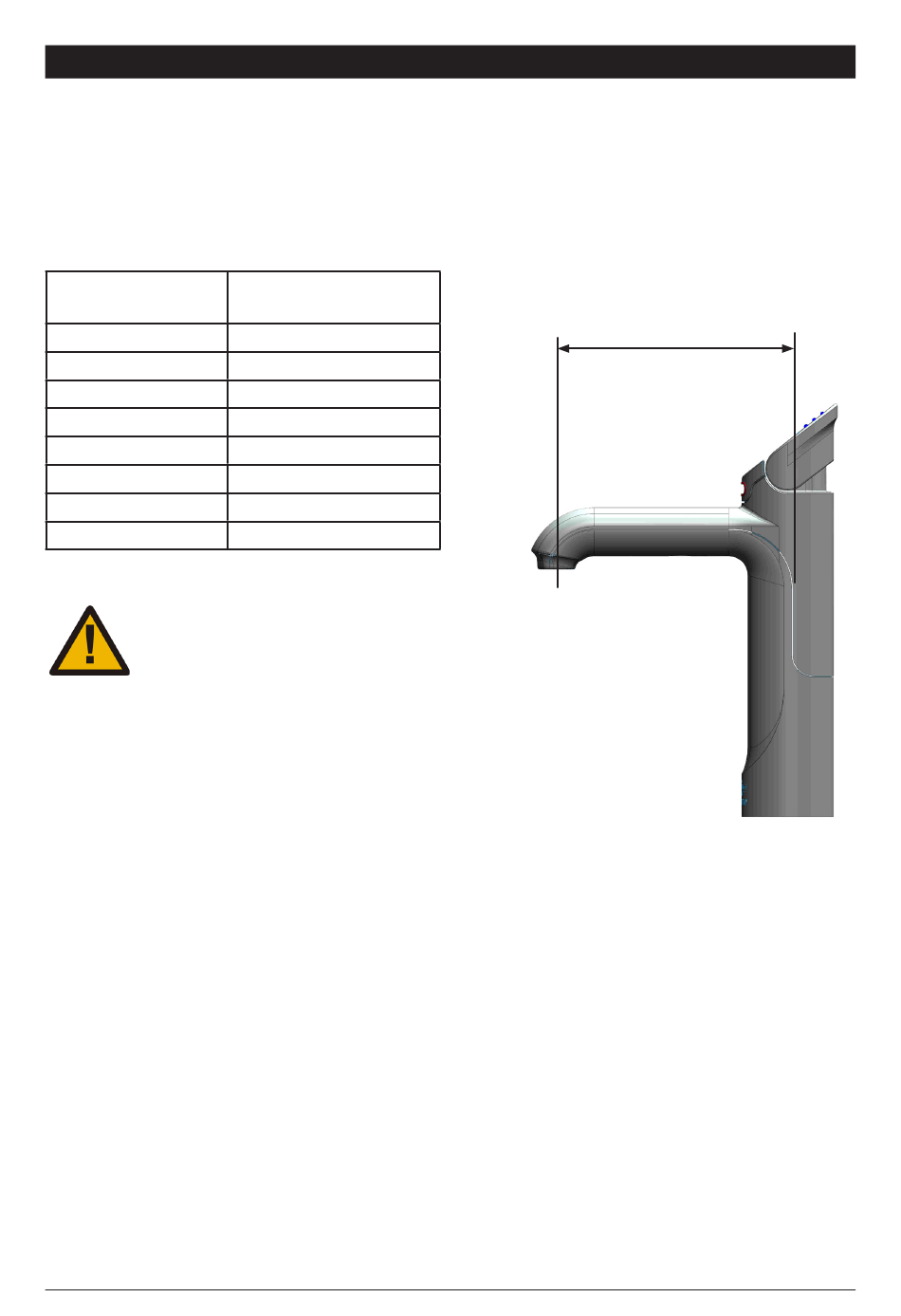

Tap positioning
Tap
Elite
HydroTap Classic
®
HydroTap Arc/Cube
®
All-in-One
Celsius - Arc/Cube
Mixer - Arc
Mixer - Classic
Mixer - Cube
Note
Celsius, All-in-One and mixer taps have
spouts that swivel. All images are for illustrative
purposes, to aid understanding of the system
configuration, and are not prescriptive of tap
positioning.
Ensure that the taps are mounted in a position that allows
the water to safely drain to waste throughout the effective
positional range.
Ensure that taps are positioned to minimise the risks of
scalding by dispensing boiling water while using the mixer tap.

Connections

All plastic pipes / silicon tubes must be trimmed to size. They
must have a constant fall to the Command-Centre
The connection tubes supplied with the tap head assembly CANNOT be lengthened.
803341UK G4 Tap installation instructions v1.02 June 2016
Generic installation instructions
Recommended dispensing
distance (mm)
116
116
171 (-174 extended)
211
220
220
270
220
Installation instructions).
TM
.
TM
116
HydroTap G4 Classic
®
Page 5 of 20
