Mixer Tap Installation - Zip HydroTap G4 Series Installation Instructions Manual

Classic
Arc
3.1
Upper rubber washer
Lower rubber
washer
Washer
Nut
3.2

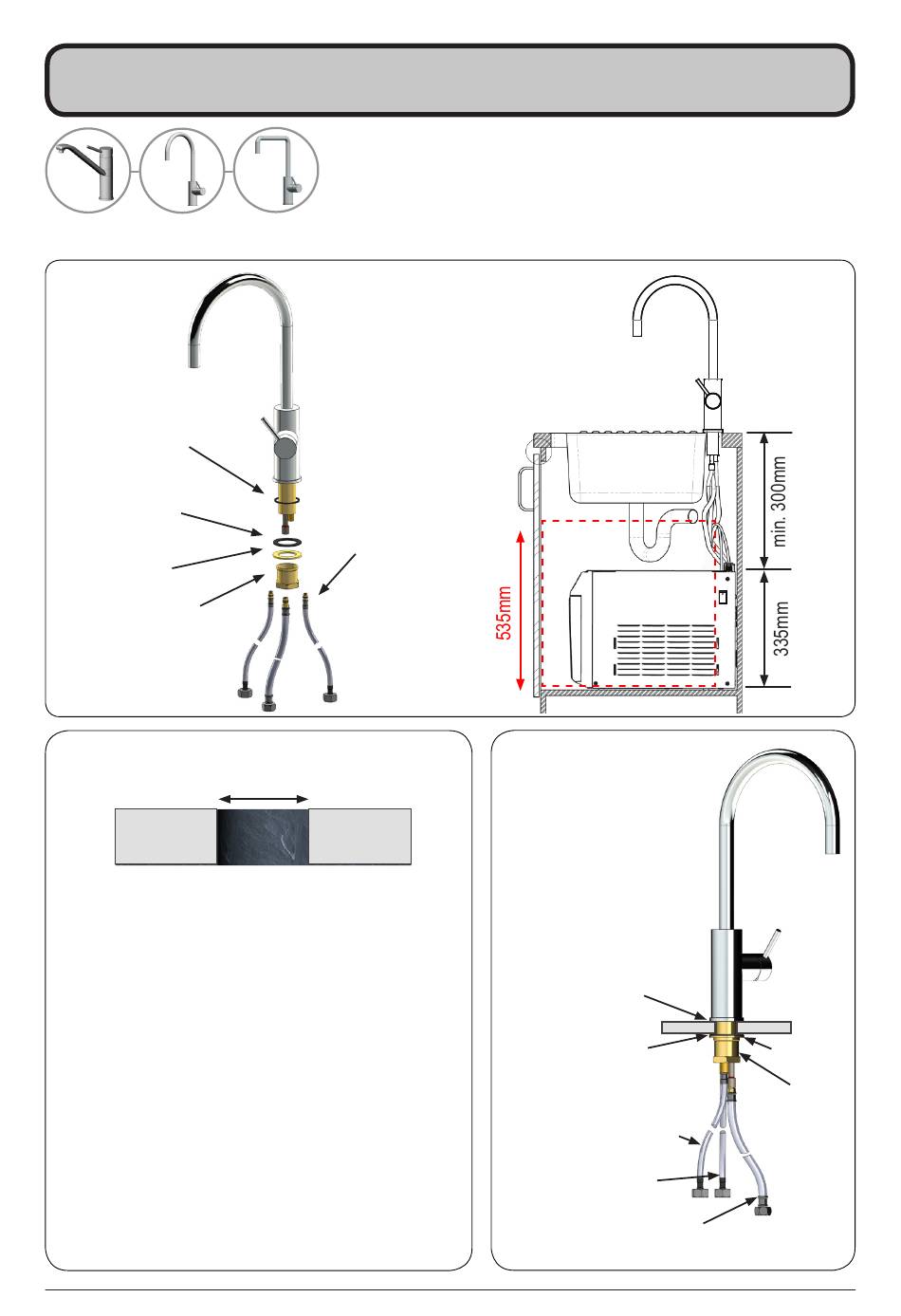

Cut a 35mm hole in the worktop / sink.
Ø
Note Make sure the tap location will allow the tap
spout to drain into the sink.
Note The mixer tap requires a flow restrictor ,
supplied, to be fitted in the cold water supply line,
from the isolation valve T-piece, to the mixer tap.
(See the Command Centre Installation section of
the Installation instructions for typical undersink
arrangements).
• Slide upper rubber washer in place.
• Mount tap in position on
• Slide lower rubber washer, metal washer then
tap nut over thread extension, then tighten the
tap nut to secure in place, do not over tighten.
• Attach the braided hoses (ensure the seals on
the end of the hoses are lubricated), do not over
tighten.
Page 10 of 20

mixer tap installation

Cube
Braided
hose x 3
Ø35mm
35mm hole.
Ø
Clearance
envelope
3.3 Vented
assembly
Upper rubber washer
Lower rubber
washer
Blue marking - MIXER IN
on Command-Centre
White marking - Ambient
mains supply
Red marking - MIXER OUT
on Command-Centre
803341UK G4 Tap installation instructions v1.02 June 2016
Washer
Nut
