6.3 Chilled and sparkling + mixed hot & cold tap installation
Note Make sure the tap location will allow
the tap spout to drain into the sink.
803341UK G4 Tap installation instructions v1.02 June 2016

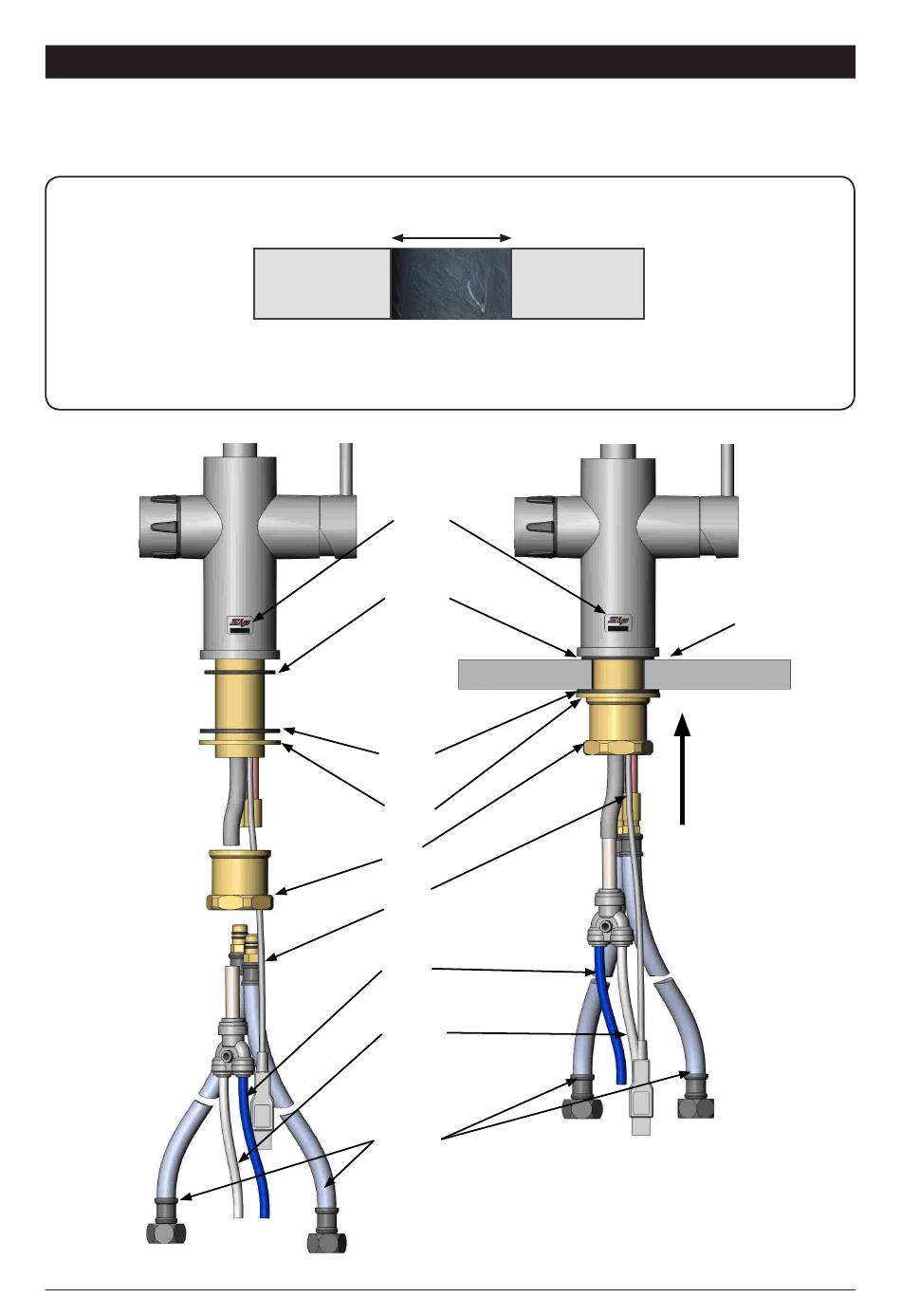

Celsius tap installation
Celsius taps require a
Ø
Ø35mm
Vent
Upper
rubber
washer
Lower
rubber
washer
Brass
washer
Nut
USB
lead
Chilled
pipe
Sparkling
pipe
Mains hot
and cold
braided
hoses
35mm hole.
35mm hole
Ø
Fit the brass and
rubber washers
and secure with
brass nut.
Page 17 of 20
