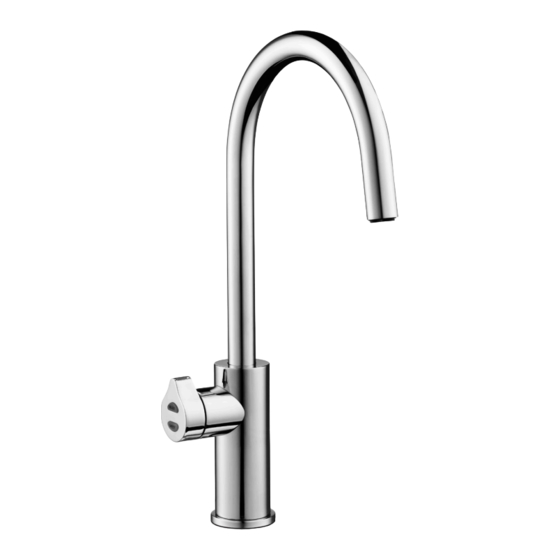

Zip HydroTap G4 Series Installation Instructions Manual
Tap range
Hide thumbs
Also See for HydroTap G4 Series:
- Installation instructions manual (32 pages) ,
- User manual (32 pages) ,
- Installation instructions manual (32 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Zip HydroTap G4 Series
Summary of Contents for Zip HydroTap G4 Series
- Page 1 ® Tap range. Model number: (See table of contents for specific models). Installation instructions Technical support Australia Ph: 1800 460 222 , UK Tel: 0345 6 005 005 email: service@zipindustries .co.uk 803341 V3.00 June 2019 - Zip G4 tap range...
-
Page 2: Tap Options
Celsius range *Dependant upon model purchased. Installation instructions Technical support Australia Ph: 1800 460 222 , UK Tel: 0345 6 005 005 email: service@zipindustries .co.uk 803341 V3.00 June 2019 - Zip G4 tap range... -
Page 3: Table Of Contents
Section 9 - Mains All-in-One Celsius Arc tap installation ................24 Product information End of life disposal ..........................27 Contact details ............................28 Installation instructions Technical support Australia Ph: 1800 460 222 , UK Tel: 0345 6 005 005 email: service@zipindustries .co.uk 803341 V3.00 June 2019 - Zip G4 tap range... -
Page 4: Generic Installation Instructions
Hole saw or equivalent to suit surface being cut. Ø140m for Arc / Cube and Ø108mm for Classic and Elite. Installation instructions Technical support Australia Ph: 1800 460 222 , UK Tel: 0345 6 005 005 email: service@zipindustries .co.uk 803341 V3.00 June 2019 - Zip G4 tap range... -
Page 5: Hole & Tap Positioning
Position the tap such that it dispenses into the sink bowl with ample clearance for a cup or tea pot. • Alternatively, the tap could be mounted away from the sink using a Zip Font, available as an accessory. Tap positioning Ensure that taps are positioned to minimise the risks of scalding by dispensing boiling water while using the mixer tap. -
Page 6: Clearance Envelope
Only used for Booster (supplied with 240/175 models) & scale filter. Braided Bypass out hose from Booster inlet (or scale filter). Only used when supplied with a special 3 hose mixer tap from Zip. Leave the Mixer in red dust caps on if not used. -
Page 7: Section 1 - Classic And Elite Hydrotap G4 Installation
(supplied) • Pass the tubes and USB cable through 35mm hole. Ø Installation instructions Technical support Australia Ph: 1800 460 222 , UK Tel: 0345 6 005 005 email: service@zipindustries .co.uk 803341 V3.00 June 2019 - Zip G4 tap range... -
Page 8: Section 2 - Arc / Cube Hydrotap G4 Installation
• Do not over tighten. Installation instructions Technical support Australia Ph: 1800 460 222 , UK Tel: 0345 6 005 005 email: service@zipindustries .co.uk 803341 V3.00 June 2019 - Zip G4 tap range... - Page 9 Area 2 BOILING BOILING BOILING CHILLED BOILING CHILLED CHILLED CHILLED AMBIENT SPARKLING SPARKLING Installation instructions Technical support Australia Ph: 1800 460 222 , UK Tel: 0345 6 005 005 email: service@zipindustries .co.uk 803341 V3.00 June 2019 - Zip G4 tap range...
- Page 10 (supplied) Male - Female adaptor (supplied) Braided hose to Command -Centre (supplied) Installation instructions Technical support Australia Ph: 1800 460 222 , UK Tel: 0345 6 005 005 email: service@zipindustries .co.uk 803341 V3.00 June 2019 - Zip G4 tap range...
-
Page 11: Section 3 Vented Classic Mixer Tap Installation
Ensure the seals on the end of the hoses are -Centre mains lubricated, do not over tighten. inlet Installation instructions Technical support Australia Ph: 1800 460 222 , UK Tel: 0345 6 005 005 email: service@zipindustries .co.uk 803341 V3.00 June 2019 - Zip G4 tap range... -
Page 12: Section 4 Mains Arc & Cube Mixer Tap Installation
Ensure the seals on the end of the hoses are lubricated. • Do not over tighten. Installation instructions Technical support Australia Ph: 1800 460 222 , UK Tel: 0345 6 005 005 email: service@zipindustries .co.uk 803341 V3.00 June 2019 - Zip G4 tap range... -
Page 13: Section 5 Vented Arc & Cube Mixer Tap Installation
Washer Braided hose x 3 5.2 Low pressure installation Replace the supplied Aerator with a 94732 flow straightener in the spout of the vented Zip mixer tap. Supplied Replacement aerator 94732 5.3 Cut the hole & mount the tap, fit the braided hoses •... - Page 14 (supplied) Male - female adaptor (supplied) Braided hose to Command -Centre inlet Installation instructions Technical support Australia Ph: 1800 460 222 , UK Tel: 0345 6 005 005 email: service@zipindustries .co.uk 803341 V3.00 June 2019 - Zip G4 tap range...
-
Page 15: Section 6 Mains All-In-One Tap Installation
Clamp in position using the base block nut. • Do not over-tighten. Installation instructions Technical support Australia Ph: 1800 460 222 , UK Tel: 0345 6 005 005 email: service@zipindustries .co.uk 803341 V3.00 June 2019 - Zip G4 tap range... - Page 16 Centre water supply water supply Installation instructions Technical support Australia Ph: 1800 460 222 , UK Tel: 0345 6 005 005 email: service@zipindustries .co.uk 803341 V3.00 June 2019 - Zip G4 tap range...
- Page 17 Isolation valve marked (not supplied) Braided hose to mixer tap Installation instructions Technical support Australia Ph: 1800 460 222 , UK Tel: 0345 6 005 005 email: service@zipindustries .co.uk 803341 V3.00 June 2019 - Zip G4 tap range...
-
Page 18: Section 7 Vented All-In-One Tap Installation
Clamp in position using the base block nut. • Do not over tighten. Installation instructions Technical support Australia Ph: 1800 460 222 , UK Tel: 0345 6 005 005 email: service@zipindustries .co.uk 803341 V3.00 June 2019 - Zip G4 tap range... - Page 19 Red marked braided MIXER IN on hose to MIXER OUT Command-Centre on Command-Centre Installation instructions Technical support Australia Ph: 1800 460 222 , UK Tel: 0345 6 005 005 email: service@zipindustries .co.uk 803341 V3.00 June 2019 - Zip G4 tap range...
- Page 20 Male - Female adaptor (supplied) Braided hose to Command -Centre mains inlet Installation instructions Technical support Australia Ph: 1800 460 222 , UK Tel: 0345 6 005 005 email: service@zipindustries .co.uk 803341 V3.00 June 2019 - Zip G4 tap range...
-
Page 21: Section 8 Mains Celsius Tap Installation
Note Make sure the tap location will allow the tap spout to drain into the sink. Installation instructions Technical support Australia Ph: 1800 460 222 , UK Tel: 0345 6 005 005 email: service@zipindustries .co.uk 803341 V3.00 June 2019 - Zip G4 tap range... - Page 22 Red marking - Hot mains Red marking - Hot mains mains supply supply supply Installation instructions Technical support Australia Ph: 1800 460 222 , UK Tel: 0345 6 005 005 email: service@zipindustries .co.uk 803341 V3.00 June 2019 - Zip G4 tap range...
- Page 23 Isolation valve marked (not supplied) Braided hose to mixer tap Installation instructions Technical support Australia Ph: 1800 460 222 , UK Tel: 0345 6 005 005 email: service@zipindustries .co.uk 803341 V3.00 June 2019 - Zip G4 tap range...
-
Page 24: Section 9 Mains All-In-One Celsius Arc Tap Installation
Clamp in position using the brass nut. • Do not over tighten. Installation instructions Technical support Australia Ph: 1800 460 222 , UK Tel: 0345 6 005 005 email: service@zipindustries .co.uk 803341 V3.00 June 2019 - Zip G4 tap range... - Page 25 Do not over tighten the braided hoses. Ensure that all tubes and hoses are firmly secured. Installation instructions Technical support Australia Ph: 1800 460 222 , UK Tel: 0345 6 005 005 email: service@zipindustries .co.uk 803341 V3.00 June 2019 - Zip G4 tap range...
- Page 26 Hot mains water supply Incoming mains hot water supply via Isolation valve (not supplied) Installation instructions Technical support Australia Ph: 1800 460 222 , UK Tel: 0345 6 005 005 email: service@zipindustries .co.uk 803341 V3.00 June 2019 - Zip G4 tap range...
-
Page 27: End Of Life Disposal
In order to help preserve our environment we ask that you dispose of this product correctly. Installation instructions Technical support Australia Ph: 1800 460 222 , UK Tel: 0345 6 005 005 email: service@zipindustries .co.uk 803341 V3.00 June 2019 - Zip G4 tap range... -
Page 28: Contact Details
Australia Tel (02) 9796 3100 Free Call 1 800 638 633 www.zipwater.com Installation instructions Technical support Australia Ph: 1800 460 222 , UK Tel: 0345 6 005 005 email: service@zipindustries .co.uk 803341 V3.00 June 2019 - Zip G4 tap range...
