3.4 Vented water connections detail
Ensure flow restrictor is
fitted in the mixer tap
direction
Incoming
mains cold
water supply

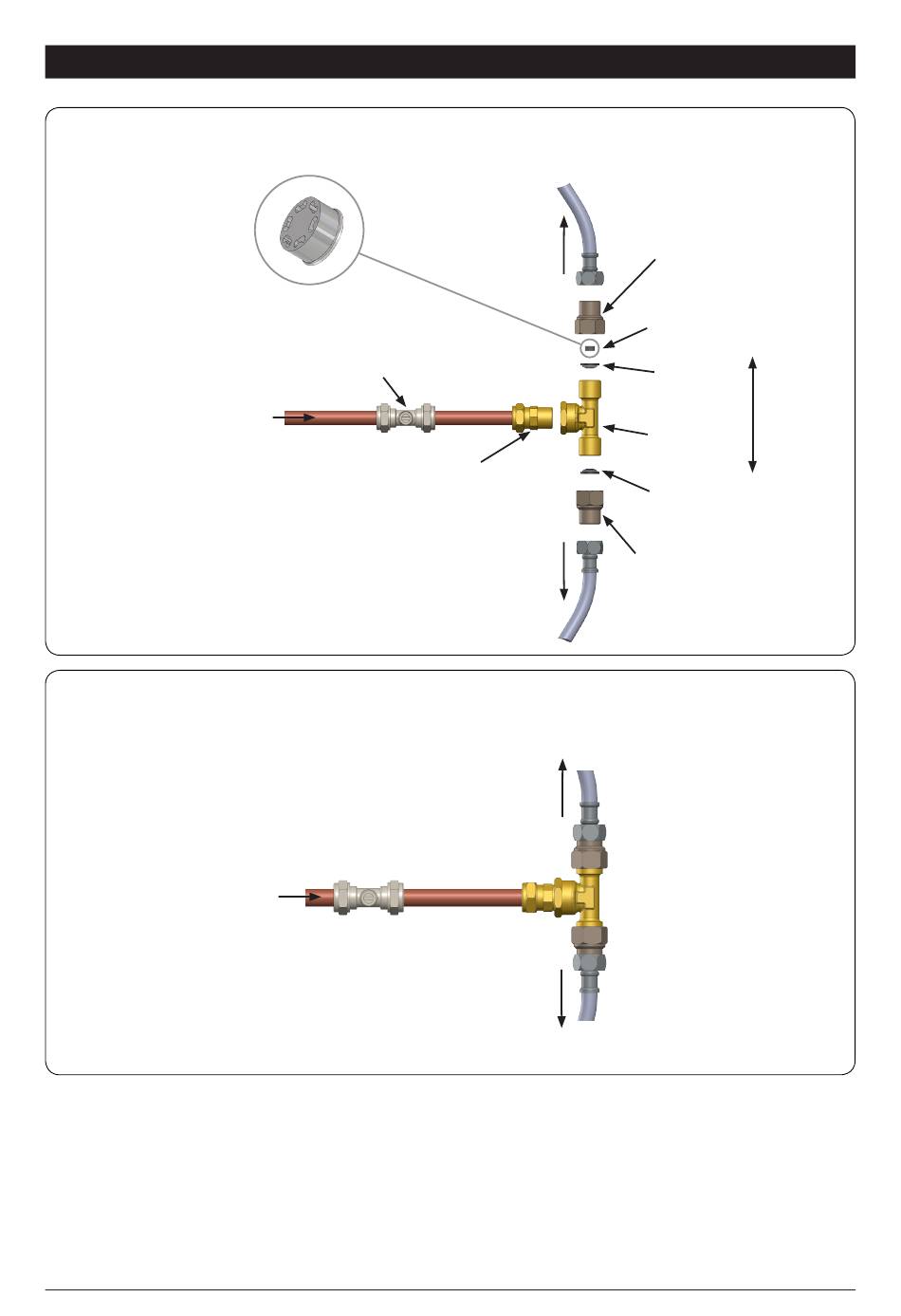

3.5 Water connections detail,
Incoming
mains cold
water supply
803341UK G4 Tap installation instructions v1.02 June 2016
Mixer tap installation
, disassembled
White marked
Braided hose
to mixer tap
Cold water
Isolation valve
(not supplied)
15mm compression
to ½" male BSPT
(not supplied)
Braided hose
to Command
-Centre
assembled
White marked
Braided hose
to mixer tap
Braided hose
to Command
-Centre
Male - Female
adaptor
(supplied)
Flow restrictor
(supplied)
Filter
(supplied)
T-piece
(supplied)
Filter
(supplied)
Male - Female
adaptor
(supplied)
TM
TM
Connect
together
