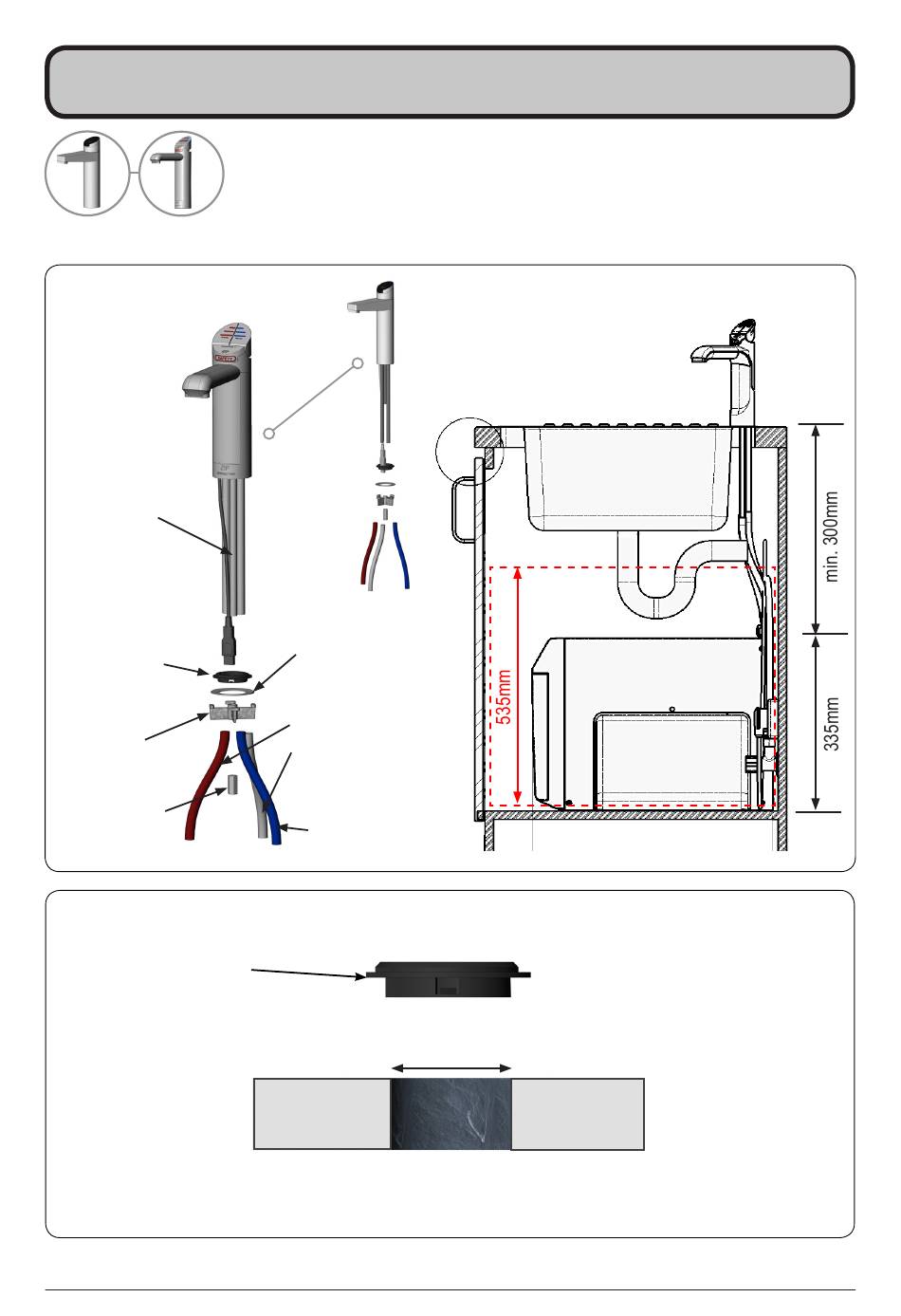

Classic and Elite HydroTap
Elite Classic
1.1
All thread rod
Black plastic
spacer
Spider
clamp
Nut
1.2
Apply a light smearing of silicon sealant on the underside of the spacer to ensure a
watertight fit.
Note Make sure the tap location will allow
the tap spout to drain into the sink.
Page 6 of 20
Stainless steel
spacer
Red boiling pipe
Clear vent pipe
(boiling models)
Blue chilled pipe
(chilled models)
Cut a 35mm hole in the worktop / sink.
Ø
Ø35mm
G4 installation
®
Clearance envelope
803341UK G4 Tap installation instructions v1.02 June 2016
