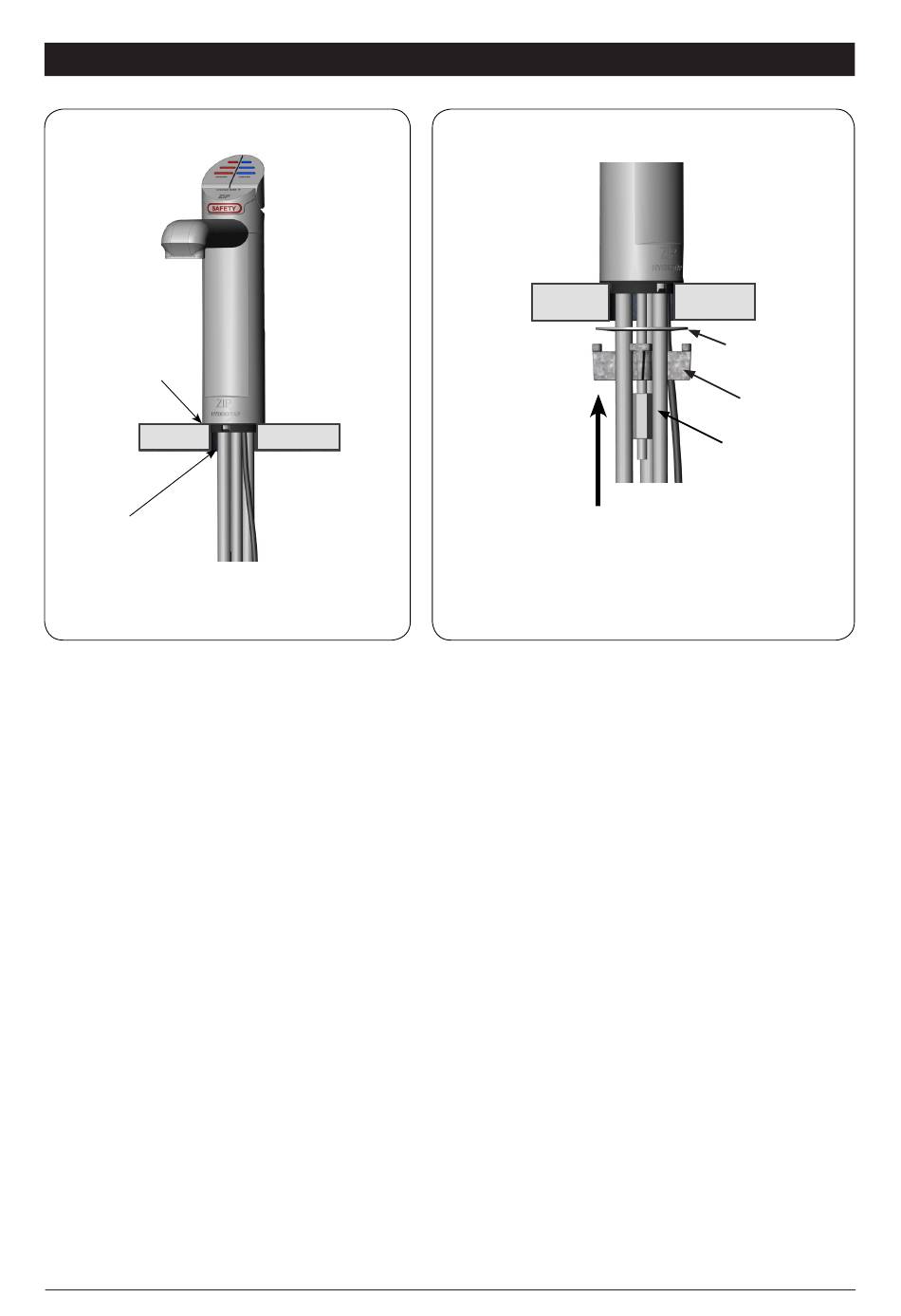

1.3
Black
plastic spacer
35mm hole
Ø
Pass the tubes and USB cable through
the
35mm hole.
Ø
803341UK G4 Tap installation instructions v1.02 June 2016
Classic and Elite HydroTap
G4 installation
®
1.4
Fit the
stainless steel
washer,
spider clamp,
and nut.
Note Feed each of the tubes and USB cable
evenly in between the legs of the spider
clamp during installation.
Stainless steel
washer
Spider clamp
Nut
Page 7 of 20
