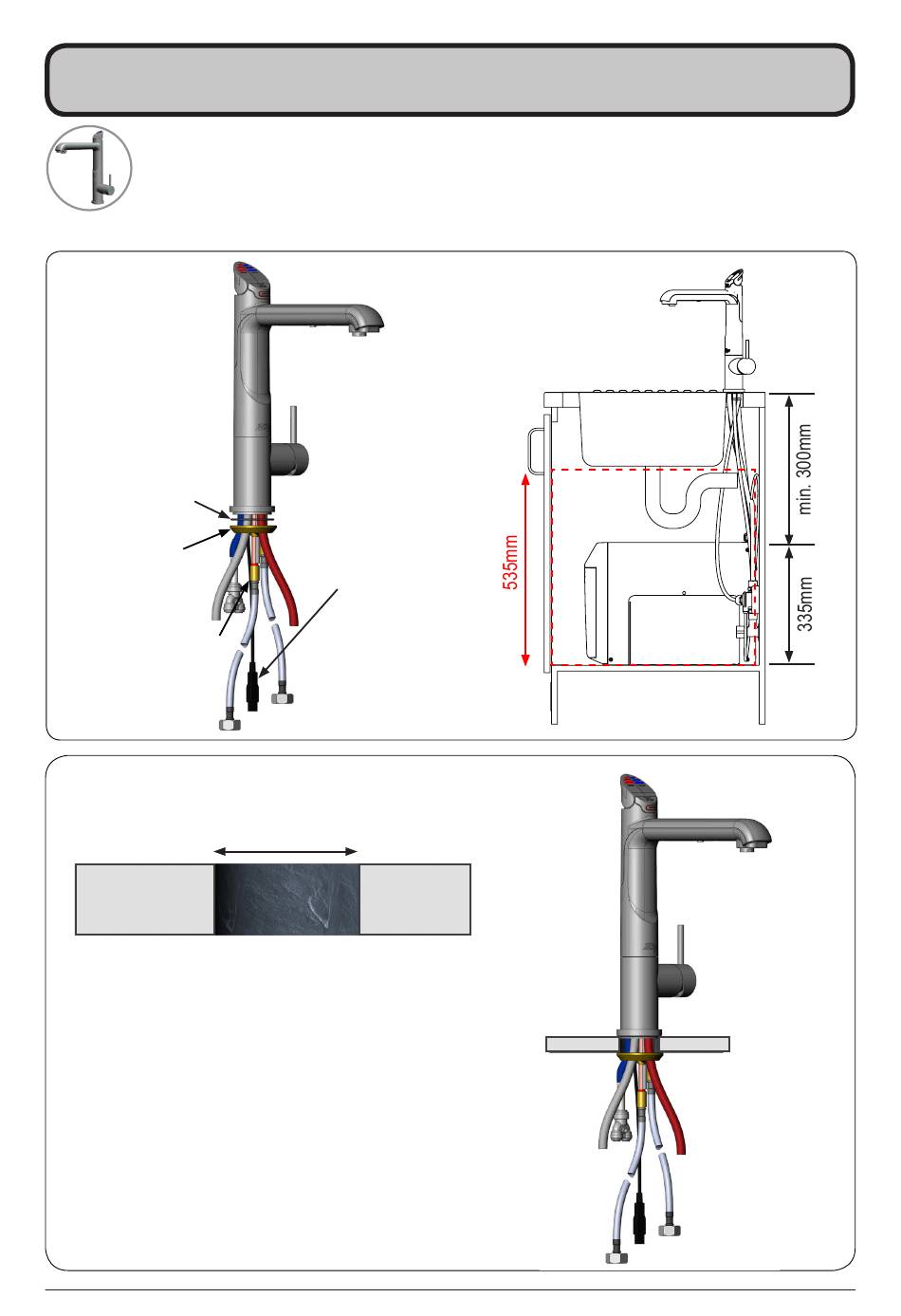

All-in-One 'Mains' tap installation
All-in-One
4.1
O-ring
Base block
spider
Base block nut
4.2
Cut a 50mm hole in the worktop / sink.
Ø
Note Make sure the tap location will allow the tap
spout to drain into the sink.
Note All silicon tubes must be cut to size. They must have
a constant fall back to the Command-Centre
• Fit the o-ring to the underside of the AIO tap then
pass tubes and cable through the Ø50mm hole
• Feed each of the tubes and USB cable evenly in
between the legs of the base block spider.
• Fit the base block spider to the underside of the
All-in-One tap.
• Clamp in position using the base block nut.
Page 12 of 20
USB cable
Ø50mm
.
TM
Clearance
envelope
.
803341UK G4 Tap installation instructions v1.02 June 2016
