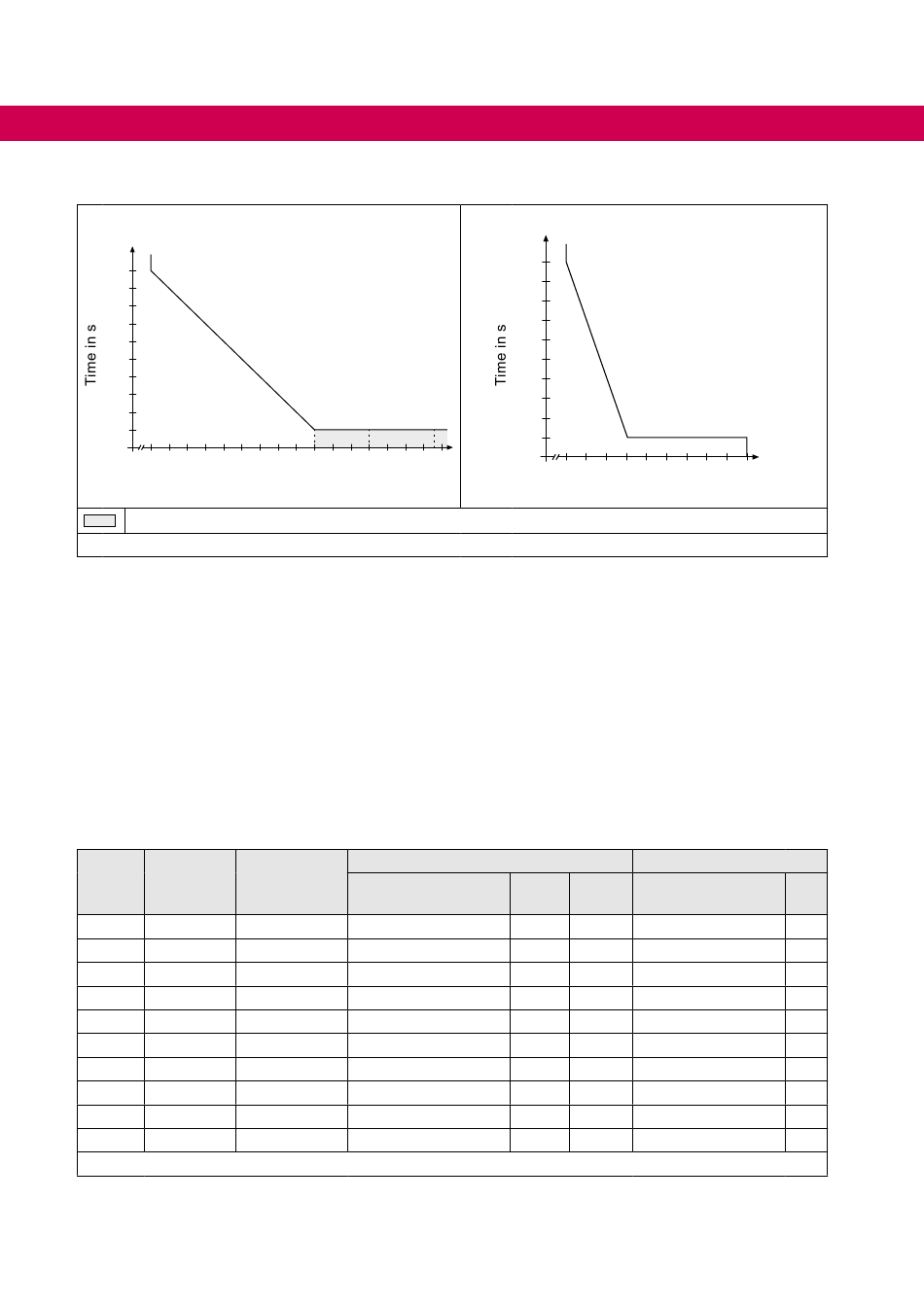

4.1 Overload characteristic

Characteristic 1
300
270
240
210
180
150
120
90
60
30
0 105 110 115 120 125 130 135 140 145 150 160
Load in %
The characteristic declines device-dependently in this range.
Figure 1: Overload characteristic
On exceeding a load of 105% the overload integrator starts. When falling below the
integrator counts backwards. If the integrator achieves the overload characteristic that
corresponds to the drive converter, the error E.OL is triggered.

4.2 Accessories

4.2.1 AIC, LCL and EMC filters

The line-side AIC or LCL filters are required for the characteristic of sinusoidal currents.
They filter the switching frequency of the drive converter. The basic assembly consists
of two inductors and capacitors (LCL filter). An EMC filter is additionally integrated at the
AIC filters.
Size Housing
14 E
16 G
18 H
20 R
1)
20 R
22 R
1)
24 U
26 U
27 U
1)
29 P
Table 8: AIC, LCL and EMC filters
LCL filter limits the AIC current.
