DIGITAL OR COMPUTER FOR BARCO
6.1.1

Digital OR Computer For Barco Integration Connections

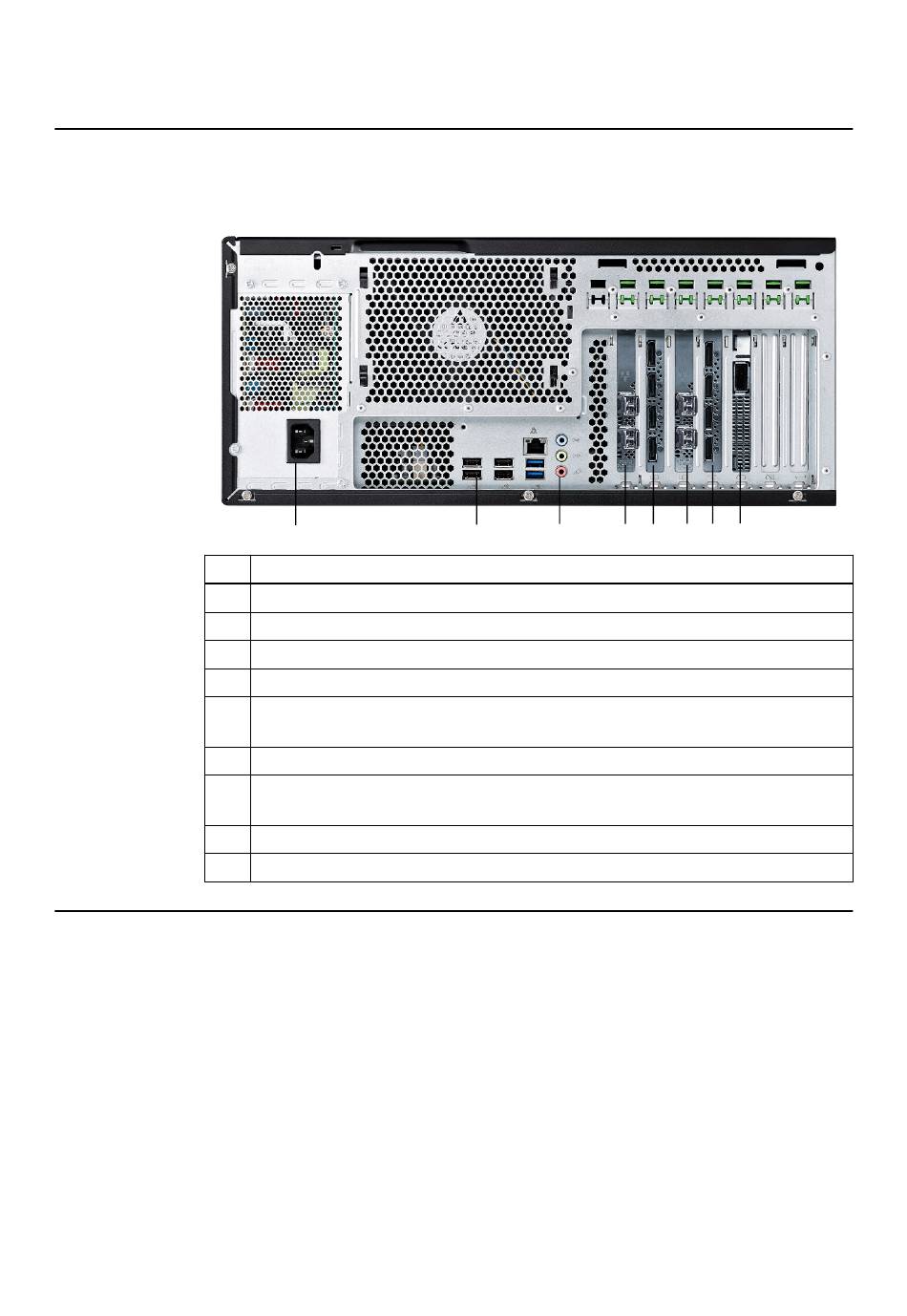

Rear Panel Connections
For a general desciption of the front and rear panels of the Digital OR Computer For Barco
Integration, please see the Fujitsu Celsius M740 Operating Manual.
No.
①
②
③
④
⑤
⑥
⑦
⑧
⑨
Digital OR Computer For Barco Integration Input Formats
Digital OR Computer For Barco Integration has no direct video inputs. It offers connectivity to
the Barco Nexxis video routing network:
• Imaging Input: Barco Nexxis
• Color Coding: various
• Connector: QSFP+
• Signal Type: Various
• Formal: Various, up to UHD1/4k
Site Planning Manual Rev. 1.1 Buzz Ver. 2.0
①
Component
Mains power
6 x USB for Touch (4 additional USB on front)
Hospital Network 1GbE WoL
Audio (in, out, mic.)
(top) Feature Panel 1 GbE WoL
(bottom) Hospital Network 10 GbE
Displays 1 - 4 (from bottom to top)
(top) Tracking Unit / Camera 1GbE
(bottom) Interoperative Data 1 GbE
Displays 5 - 8 (from bottom to top)
Barco Nexxis Video 40 GbE QSFP+
③
② ④
⑤ ⑥
⑦ ⑧ ⑨
