PLANNING AND SITE PREPARATION
4.6.2

Mounting Information Buzz In-Wall Additional Displays

General Information
The Buzz In-Wall Additional Main Display metal frame is provided prior to the main shipment.
• To achieve the recommended mounting height, center cutout at 150 cm (59") above finished
floor. If a different mounting height is desired, adjust accordingly.
• The cutout for the frame must be 1005-1009 mm x 619-623 mm to enable the installation of the
frame.
• The minimum depth of the opening is 98 mm (3.9").
• Sufficient ventilation must be ensured. Do not obstruct the vents on top and bottom of the
frame.

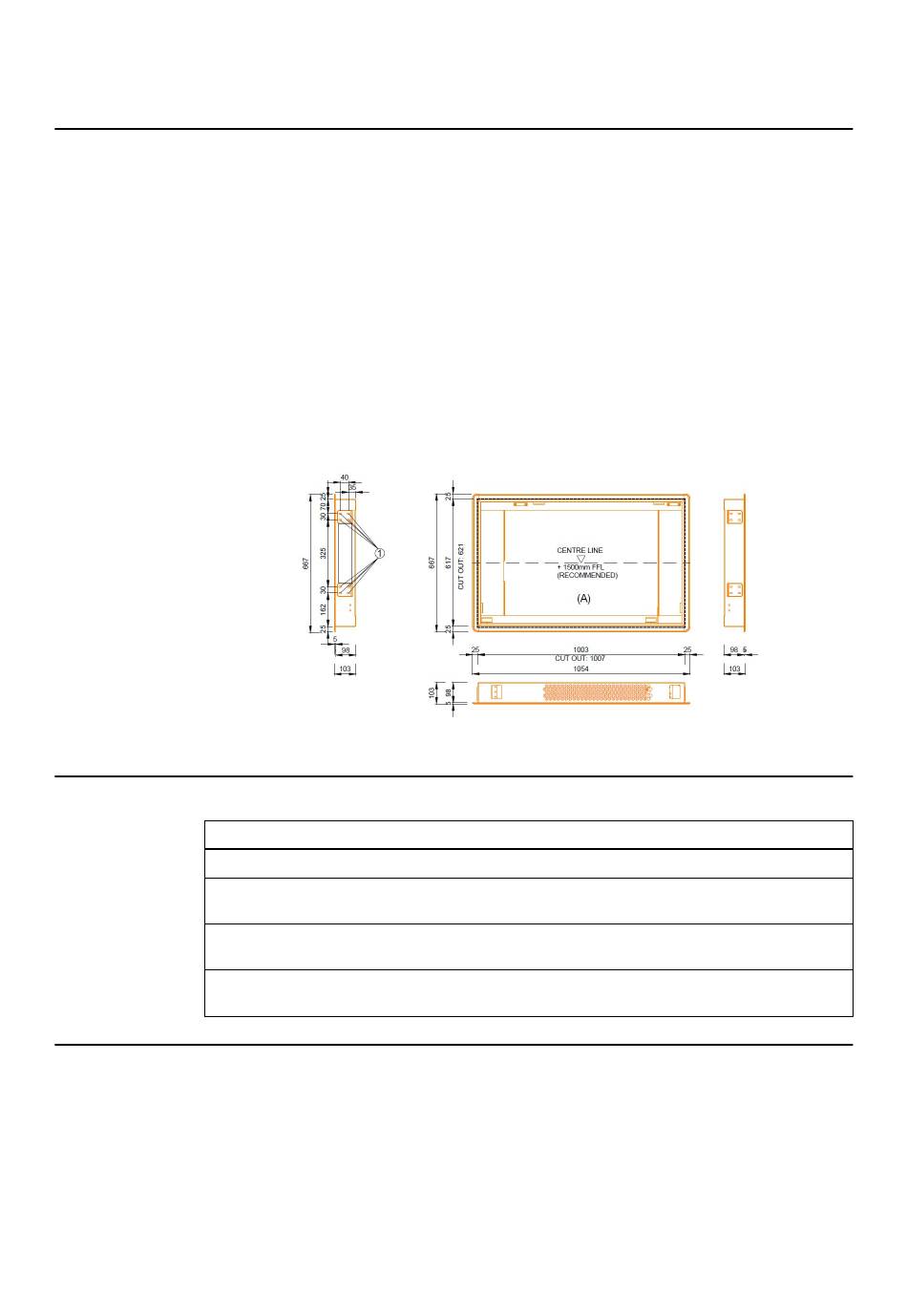

Prepare and set up mounting plates according to Brainlab drawings. The In-Wall mounting plate
kit consists of one component:
• (A) Display metal frame
NOTE: If more Buzz In-Wall touch displays are mounted adjacent to each other, plan a 6-10 cm
(2-4") gap between the In-Wall frames to avoid interference of the protruding front bezels.
How to Install Buzz In-Wall Housing
Step
1.
2.
3.
4.
Related Links
6.1.2 Digital OR Computer For Barco Integration Installation on page 63
Site Planning Manual Rev. 1.1 Buzz Ver. 2.0
Put the display metal frame (A) into the wall.
Level and fasten the display metal frame (A) using the 16 long slots ① at each side in the
display metal frame.
Create a silicone joint between the yellow design frame and wall (Ingress Protection
IP44).
Clip the foam packaging cover as protection against scratches in the display metal frame
(A).
Figure 23
