Connection Panel - Buzz Computer - Brainlab Buzz Site Planning Manual

SYSTEM SPECIFICATIONS
3.4.2

Connection Panel - Buzz Computer

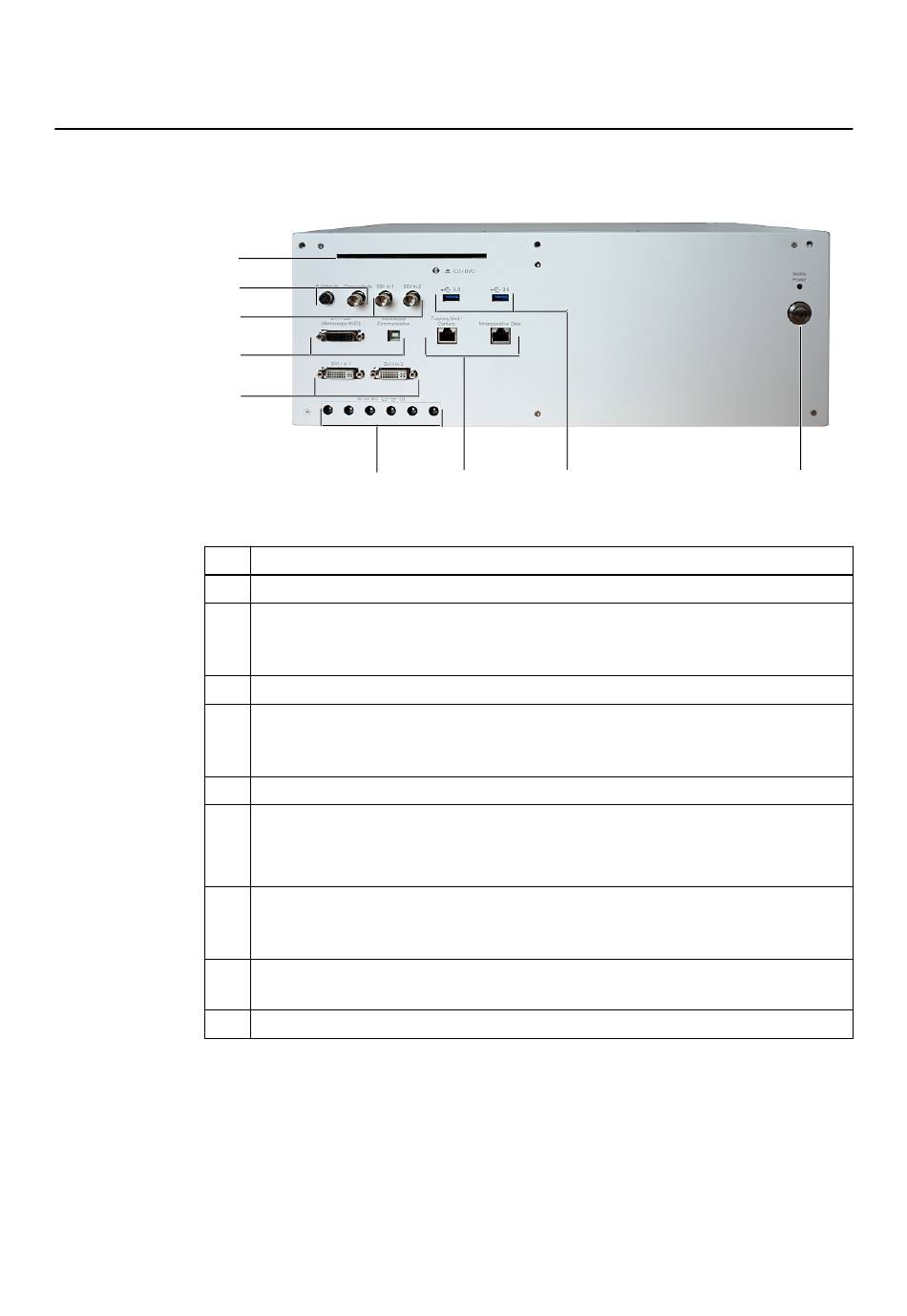

User Connection Panel
The areas encircled on the connection panel contain connection ports of a similar function.
①
②
③
④
⑤
No.
①
②
③
④
⑤
⑥
⑦
⑧
⑨
Site Planning Manual Rev. 1.1 Buzz Ver. 2.0
⑥
Component
CD/DVD drive
Analog Video Input
• 1 x S-Video IN
• 1 x Composite IN
SDI Video Inputs
Imaging Output for Microscope
• 1 x DVI-I Out
• 1 x USB B
DVI Video Inputs
5V DC Output for Video In Transfer Lines
• 6 x 5V DC / 2A
NOTE: Only connect equipment specified by Brainlab to the DC output.
Network Connection
• Tracking Unit/Camera (not yet released)
• Intraoperative Data/Navigation
Data ports
• 2x USB 3.0
Start button with status LED and mains power LED
⑦ ⑧
Figure 9
⑨
27
